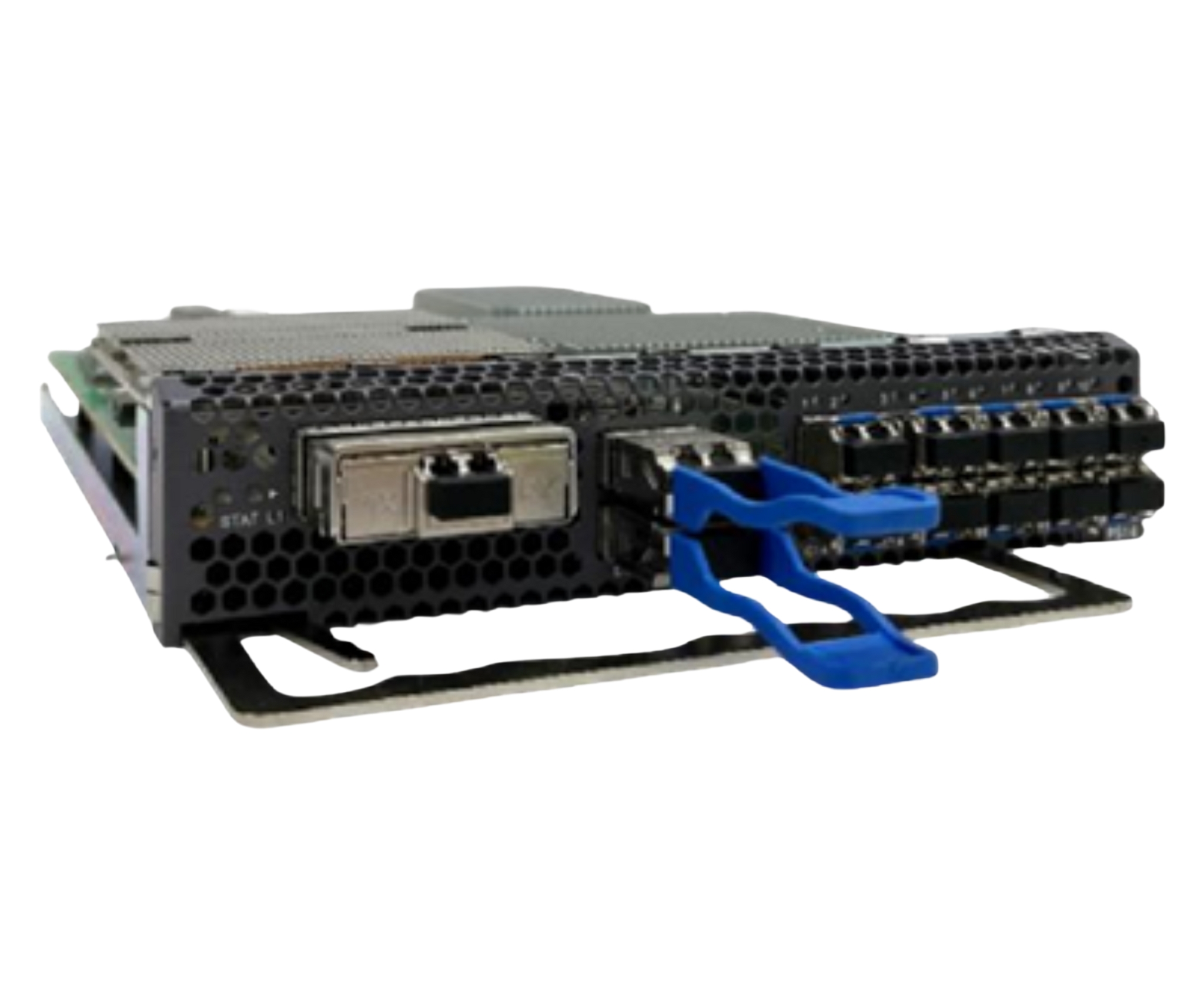

P514 (2*100G+10*10G Muxponder)
.png)
Price: Rs 1.00
P514 (2*100G+10*10G Muxponder)
Overview:
The 2*100G+10*10G+ Muxponder service card (P514) launched by Eman Communications supports mapping 2x100G optical signals or 1x100G+10x10G optical signals received on the client side to 1 OTUC2 signal and interconverting OTUC2 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra long distance transmission based on advanced technologies such as coherent detection.
Applications:
- Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km
- Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
- Suitable for 200G links in existing OTN/DWDM infrastructures
Product Specification:
| Feature | Description |
|---|---|
| Function | 200G Muxponder (P514) |
| Slot number | 2 slots |
| Line side | 1 CFP2 port: adopts 200G & 400G CFP2-DCO module, pluggable |
| Support wavelength adjustable, covering 191.35~196.1 THz. | |
| Support light-emitting power adjustable | |
| Support single fiber bidirectional transmission (optional) | |
| Client side | Support 2 QSFP28, 10 SFP+ modules hot-pluggable |
| Frame format & overhead handling | ITU-T G709 recommendations |
| OTN function | ODUk (k=2, 2e, 4, C2) layer: support for PM and other functions |
| OTUk（k=2, 4, C2）layer: support for SM functions | |
| Support service types | 10GE, 100GE, 100GE FlexE(Unware), FC 8G/16G, STM-64, OTU2/4 |
| Time delay measurement | Online delay measurement based on ODU layer |
| Loop back | Support line side and client side loopbacks |
| LLDP | Ethernet Support |
| Performance monitoring & alarm monitoring | Support OTN performance monitoring and alarm monitoring |
| Support temperature, current, and power monitoring of optical module | |
| Support Ethernet RMON monitoring | |
| Support Telemetry |
