ASU Fiber Cable Mini ADSS 12 Core
Price: Rs 2.00
1. ASU Outdoor Optical Fiber Cable

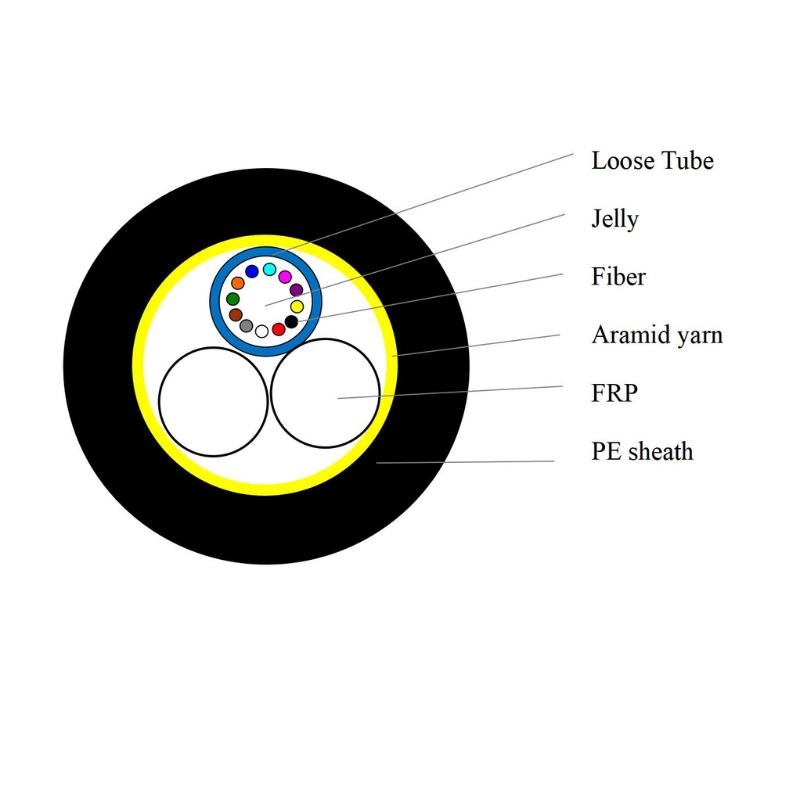

1.1 Cable Cross-section
.jpg)
1.2 Cable Print
The cable is wound on a non-returnable wooden drum. The following information shall be marked on the outer sheath of the cable at an interval of about 1 meter.
.2 Cable Print
The cable is wound on a non-returnable wooden drum. The following information is printed at 1-meter intervals on the outer sheath:
-
KXOFC: Manufacturer’s Brand
-
XXXX: Manufacture Year
-
ASU: Cable Type
-
XX CORE: Number of single-mode optical fibers
-
XXXXM: Mark per Meter
-
Note: Printing can be customized.
Example:
KXOFC XXXX ASU XXCORE XXXXM
1.3 Fiber and Loose Tube Color Code
| No. | Color | No. | Color |
|---|---|---|---|
| 1 | Blue | 7 | Red |
| 2 | Orange | 8 | Black |
| 3 | Green | 9 | Yellow |
| 4 | Brown | 10 | Violet |
| 5 | Grey | 11 | Pink |
| 6 | Natural | 12 | Aqua |
2.Cable Details
2.1 ASU Structure and specification details
| Parameter | Specification |
|---|---|
| No. of Fibers | 12 |
| Fiber Type | G.652D |
| Span | 150m |
| Strength Member | FRP, Diameter: 2.3mm × 2 |
| Loose Tube | PBT, Diameter: 2.1mm |
| Water Blocking Layer | Filling Compound |
| Aramid Yarn | 14 × 1670 Dtex |
| Outer Sheath | PE, Black |
| Cable Diameter | 9.0mm (±0.2mm) |
| Attenuation Coefficient @1310nm | ≤0.35 dB/km |
| Attenuation Coefficient @1550nm | ≤0.21 dB/km |
| Ice Thickness | 10mm |
| Wind Speed | 20 m/s |
| Crush Resistance (Short/Long) | ≥1000 / ≥300 N/100mm |
| Min. Bending Radius (No Tension / Max Tension) | 10× / 20× Cable Diameter |
| Temperature Range (Installation) | -20°C to 60°C |
| Temperature Range (Transport & Storage) | -40°C to 70°C |
| Note: Mechanical sizes are nominal values. |
2.2 Main technical specification of optical fiber (G.652D)
| Category | Description | Before Cable | After Cable |
|---|---|---|---|
| Attenuation | @1310nm | ≤0.35 dB/km | ≤0.36 dB/km |
| @1383nm | ≤0.35 dB/km | ≤0.36 dB/km | |
| @1550nm | ≤0.20 dB/km | ≤0.22 dB/km | |
| @1625nm | ≤0.24 dB/km | ≤0.25 dB/km | |
| Attenuation Discontinuity | ≤0.05 dB | ||
| Attenuation vs. Wavelength | @1285–1330nm / @1525–1575nm | ≤0.05 dB/km | |
| Zero Dispersion Wavelength | 1300–1324 nm | ||
| Zero Dispersion Slope | ≤0.092 ps/(nm²·km) | ||
| Dispersion | @1310nm / @1550nm | ≤3.5 / ≤18 ps/nm·km | |
| PMD | Polarization Mode Dispersion | ≤0.2 ps/√km | |
| Cutoff Wavelength | λcc | ≤1260 nm | |
| Effective Group Index | @1310nm / @1550nm | 1.4675 / 1.4681 | |
| Macro Bend Loss (30mm radius, 100 turns) @1625nm | ≤0.1 dB |
| Parameter | Value |
|---|---|
| Mode Field Diameter @1310nm | 9.2 ± 0.6 μm |
| Mode Field Diameter @1550nm | 10.4 ± 0.8 μm |
| Cladding Diameter | 125 ± 1 μm |
| Cladding Non-Circularity | ≤1.0% |
| Coating Diameter | 245 ± 7 μm |
| Coating/Cladding Concentricity Error | ≤8 μm |
| Core/Cladding Concentricity Error | ≤0.8 μm |
| Parameter | Value |
|---|---|
| Mode Field Diameter @1310nm | 9.2 ± 0.6 μm |
| Mode Field Diameter @1550nm | 10.4 ± 0.8 μm |
| Cladding Diameter | 125 ± 1 μm |
| Cladding Non-Circularity | ≤1.0% |
| Coating Diameter | 245 ± 7 μm |
| Coating/Cladding Concentricity Error | ≤8 μm |
| Core/Cladding Concentricity Error | ≤0.8 μm |
| Parameter | Value |
|---|---|
| Proof Test Level | ≥1.0% |
| Fiber Curl Radius | ≥4.0 m |
| Peak Coating Strip Force | 1.3 – 8.9 N |
5km per wooden drum;
Packing length as your requirement.

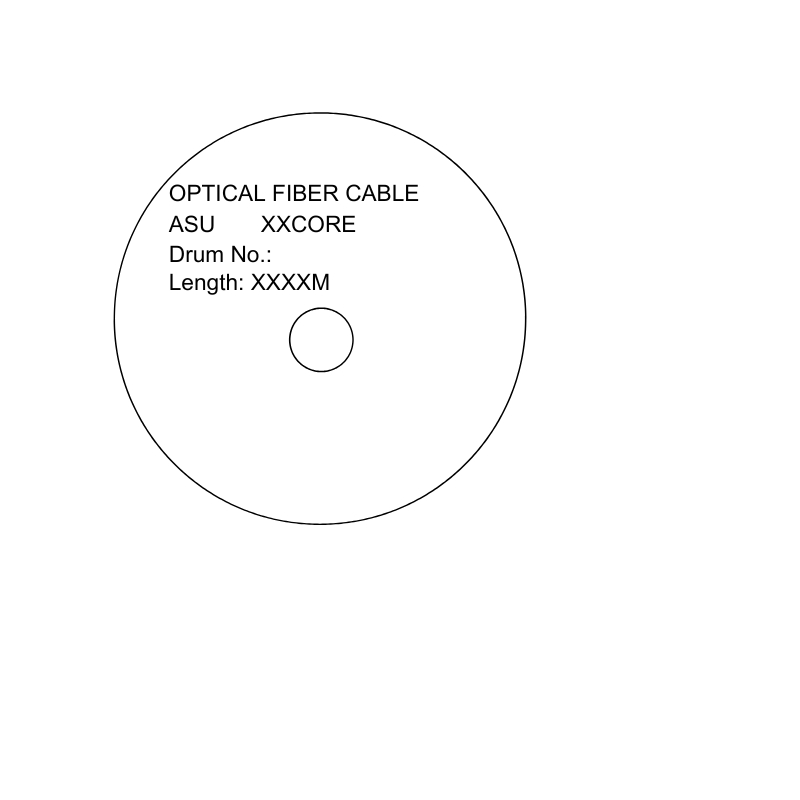

3. Packing and Marking
.jpg)
-----------End----------
