Suspension Clamp Overview:

Suspension Clamps for Insulated Neutral Messenger System are used along with a bracket or other supporting hardware to suspend and grip, without damaging, the insulated neutral messenger of a LV-ABC system by means of an adjustable lock that accommodates a range of cable sizes. The clamp and bracket are available factory-assembled or separately.

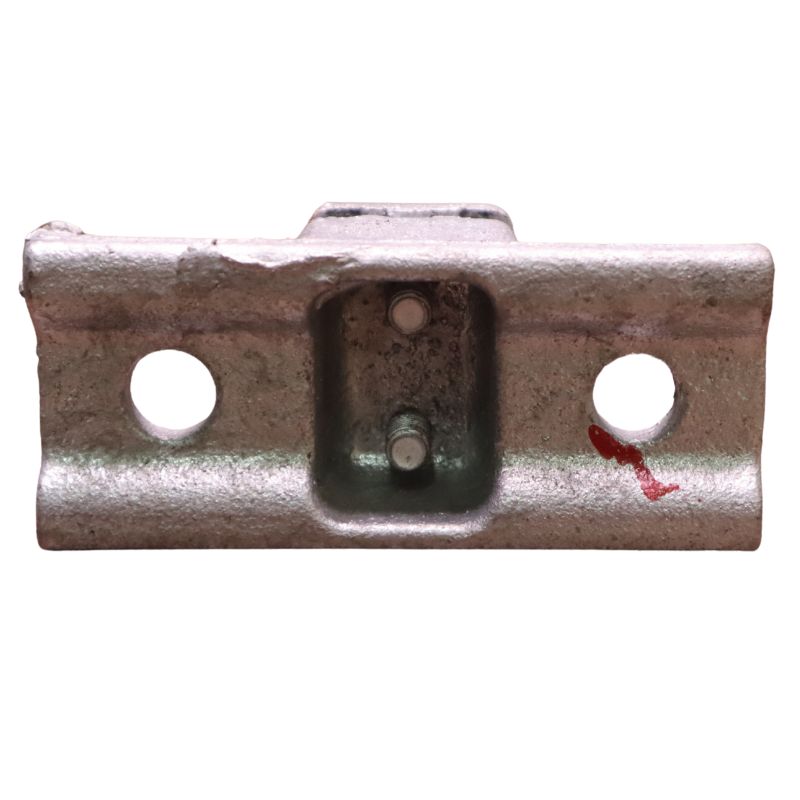

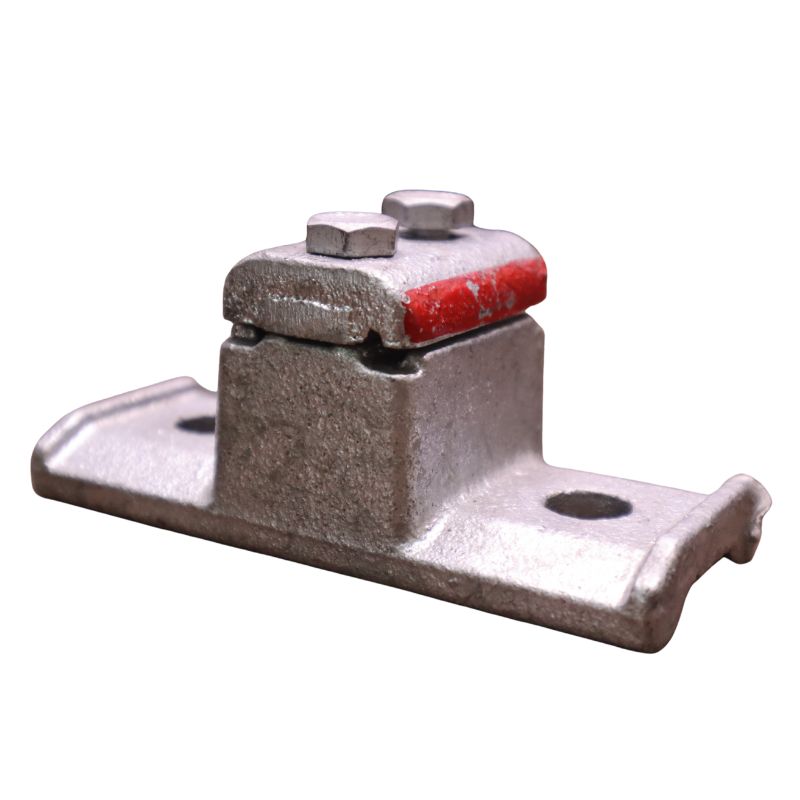

A suspension clamp designed for materials ranging from 4.7mm to 6.2mm in thickness, constructed from malleable cast iron, features two hexagonal bolts sized M6 with a length of 35mm. It is capable of withstanding a load of up to 3 kN. Additionally, there should be an indelible red marking clearly visible on the top of the groove."

Features & Benefits of Suspension Clamps:

• Exceeds the requirements of NF C 33-040 and other international standards.
• It withstands extreme conditions, leading to long life, safety, low maintenance, and reduced lifetime costs.
• The engineering plastics used provide additional insulation and strength and enable live line working without additional tools.
• The design facilitates longitudinal and transversal movements, allowing easy turning in congested areas.
