ADSS J Hook
Overhead Line Electric Accessories Steel Pole Install Fiber Cable Suspension Clamp
Specification of Suspension clamps
The suspension clamp is used for the direct suspension of round fiber optic ADSS cables with Ø04 to 20mm on short spans (max 100m) at intermediate poles on straight routes.
|
SN |
Cable dia. (mm) |
Materials |
Breaking Load |
Weight |
||
|
J Hook / Pigtail Hook |
Sleeve |
Screw |
||||
|
1 |
04~08mm |
Electroplated |
Neoprene |
Protected steel |
4000N |
0.175kg |
|
2 |
08~12mm |
Hot dip galvanized steel |
5000N |
0.555kg |
||
|
3 |
10~15mm |
|||||
|
4 |
15~20mm |
|||||
Suspended from a hook bolt: The clamp can be installed on a 14mm or 16mm hook bolt on drilled wood poles.

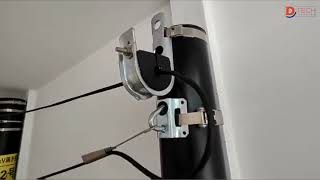

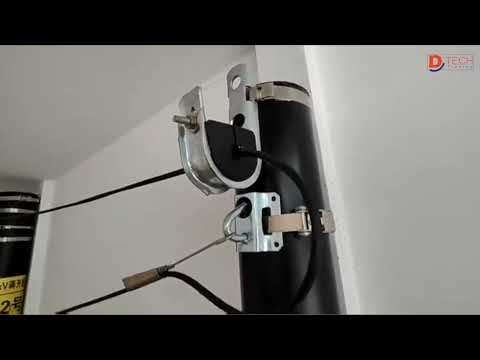

Secured with pole banding: The clamp can be installed on wood poles, round concrete poles and polygonal metallic poles using one or two 20mm pole bands and two buckles.
The clamp can be secured with a 14mm or 16mm bolt on drilled wood poles.
