AC Adapter / Battery Charger of Fujikura
| Min. Order | Unit Price |
|---|---|
| 1 Pc(1) | Rs 29,646.01 |
if defective or damaged
Seller warranty (if applicable)
Multiple options available

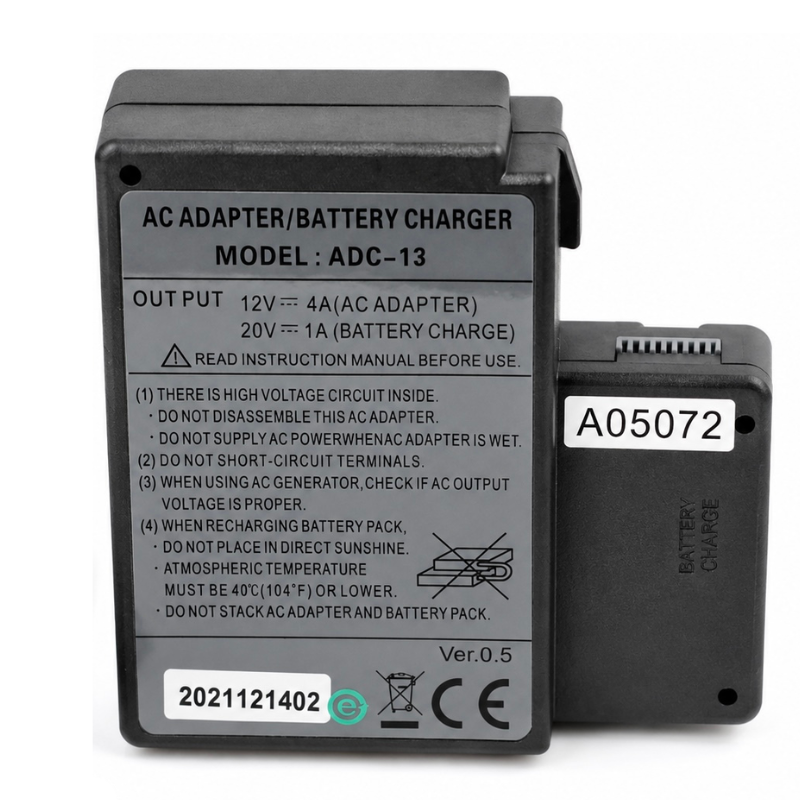

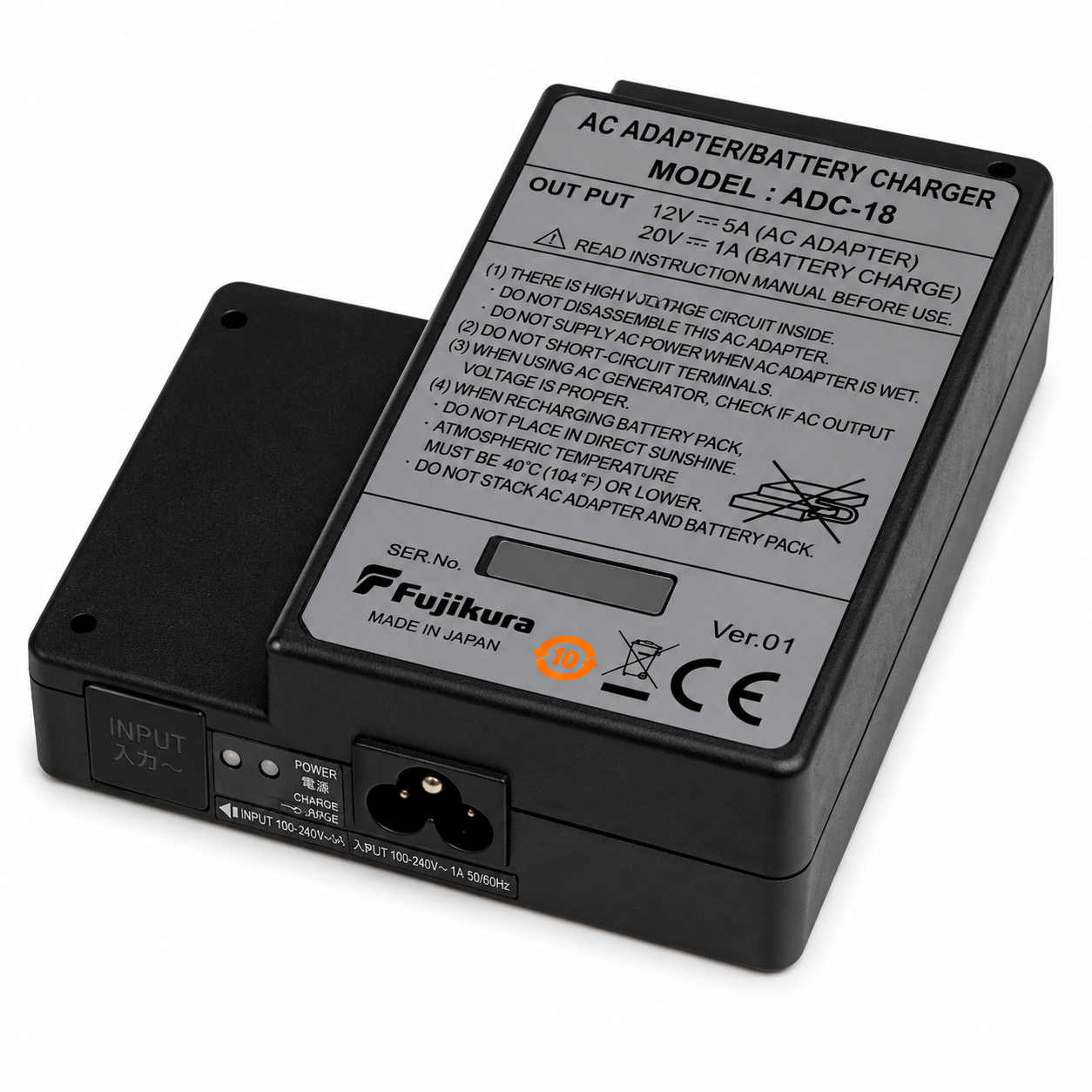

Fujikura ADC-13 / ADC-18 AC Adapter & Battery Charger
The Fujikura ADC-13 / ADC-18 AC Adapter & Battery Charger is a genuine multi-function power supply designed for Fujikura fusion splicers. It operates as an AC power adapter, battery charger, and external DC power input, providing reliable power for laboratory, workshop, and field fiber optic splicing applications.
Compatible with Fujikura fusion splicers including the 19S, 70S, and 80S, the ADC-18 supports BTR-09 rechargeable batteries, automatic power source selection, and simultaneous battery charging while the fusion splicer is in operation, ensuring maximum productivity during installation and maintenance work.
Quick Specifications
Key Features
- Multi-function AC adapter and battery charger
- External DC power input support
- Automatic power source selection
- Compatible with Fujikura BTR-09 battery
- Charges battery while operating the fusion splicer
- Supports Fujikura 19S, 70S and 80S fusion splicers
- Worldwide AC input (100–240V)
- Compact and lightweight design
- Reliable performance for field operation
- Easy transportation and installation
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Name | Fujikura ADC-13 / ADC-18 AC Adapter & Battery Charger |
| Power Input Type | AC Power, External DC Input & Battery Charging |
| AC Input Voltage | 100–240V AC, 50–60 Hz |
| AC Power Cord | ACC-14 ~ ACC-17 |
| Compatible Battery | Fujikura BTR-09 (4.0 Ah) |
| Charging Voltage | 14.8 V |

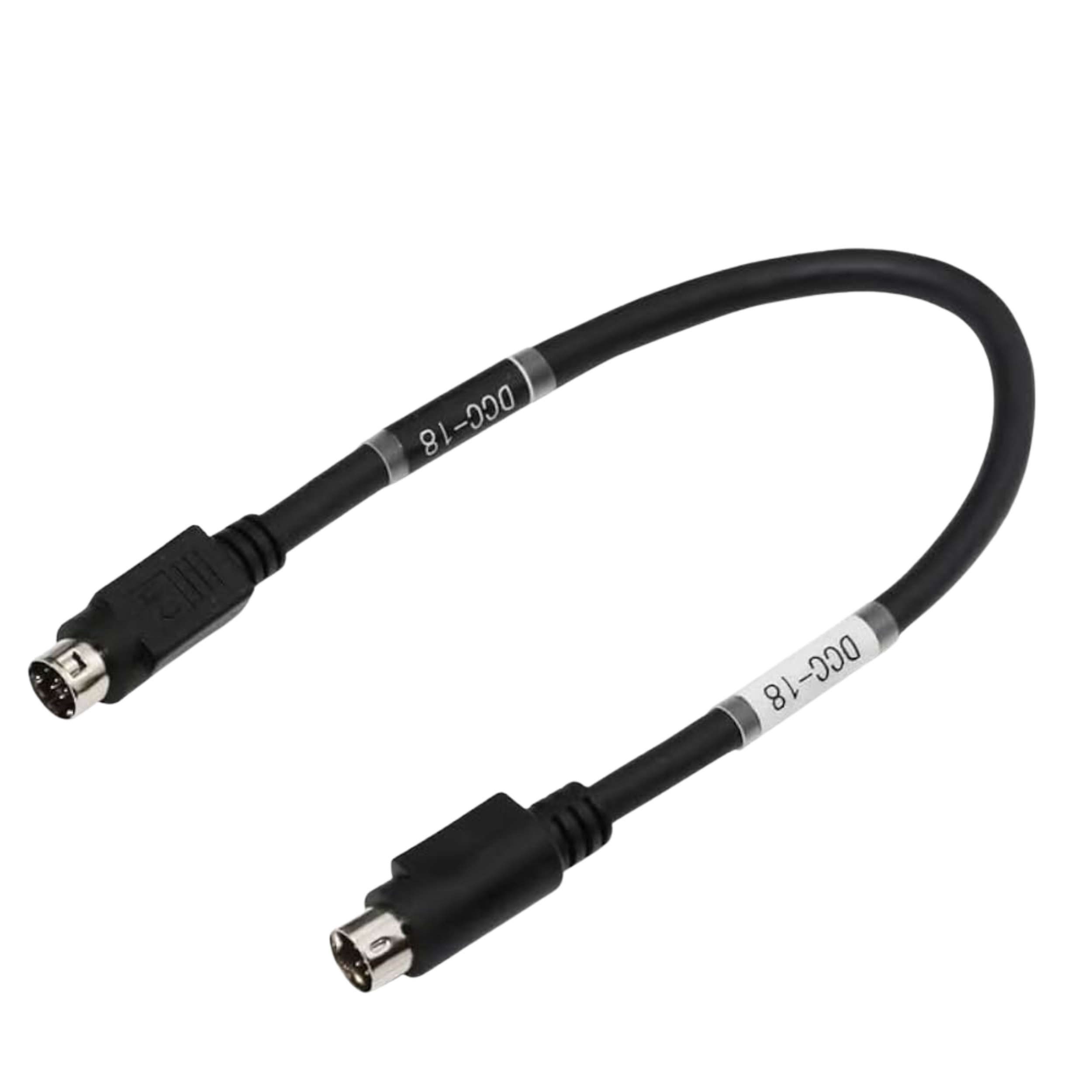

| Battery Charging Cable | DCC-18 |
| External DC Input | 10V – 15V DC |
| DC Power Cords | DCC-12, DCC-13 |
| Power Source Selection | Automatic |
| Dimensions (W × D × H) | 132 × 117 × 38 mm |
| Weight | 386 g |
Compatible Fujikura Fusion Splicers
Applications
Fusion Splicer Power Supply
Provides stable AC or DC power for Fujikura fusion splicers during operation.
Battery Charging
Charges BTR-09 batteries independently or while the fusion splicer is in use.
Field Maintenance
Ideal for FTTH, ISP, telecom, CATV, and optical fiber maintenance work.
Workshop & Laboratory
Suitable for indoor servicing, testing, and continuous fusion splicer operation.
Installation Recommendation
Use only the recommended Fujikura power cords and charging cables with the ADC-13/ADC-18. Connect to a stable 100–240V AC power source or an external 10–15V DC supply. The adapter automatically selects the available power source and supports charging the BTR-09 battery while simultaneously powering the compatible fusion splicer.
