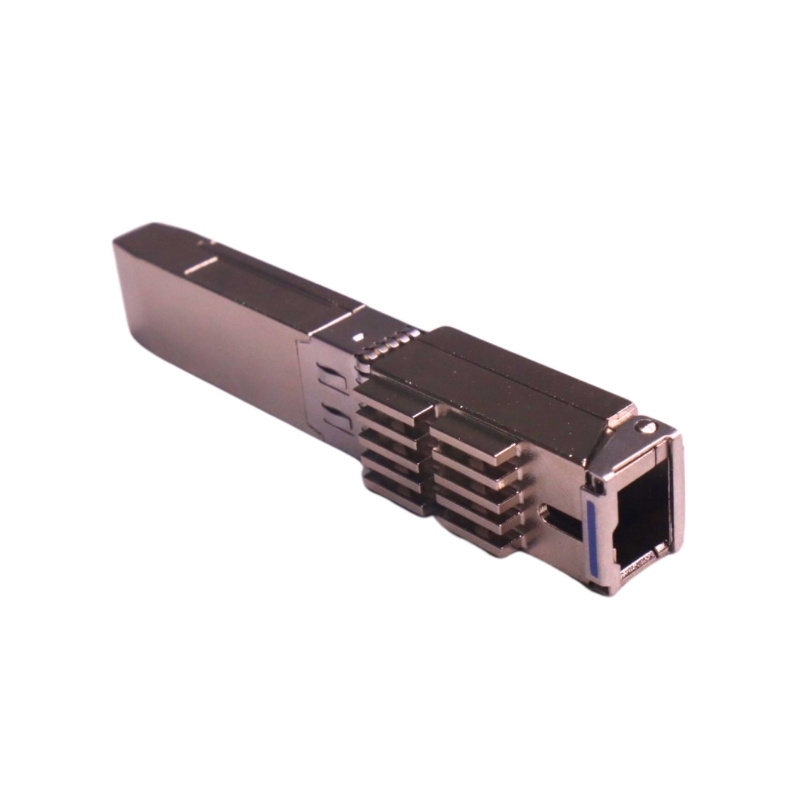

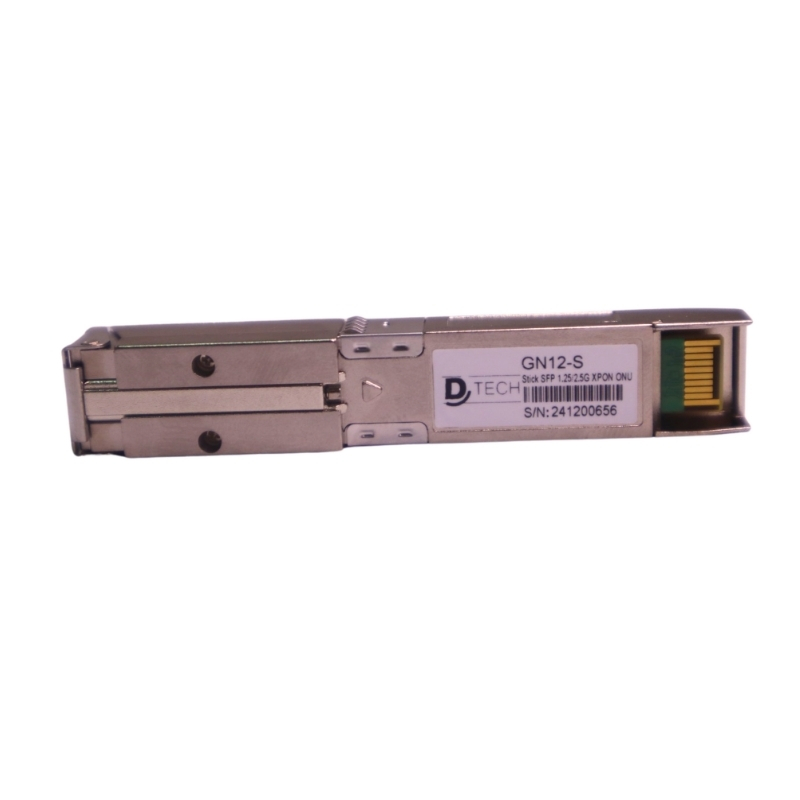

HSGQ-XPON-STICK is a compact XPON SFP ONU (Stick ONU) designed to be directly plugged into the SFP optical port of a switch, router, firewall, or industrial networking device.
Although it looks like a standard SFP optical module, it integrates a built-in CPU, flash memory, and operating system, allowing it to function as a complete XPON ONU (optical modem) without requiring an external ONU device.
This makes the HSGQ-XPON-STICK an ideal solution for ISPs, enterprise networks, FTTR, CCTV backhaul, Wi-Fi access points, and compact fiber deployments where space, power efficiency, and simplicity are critical.
Key Features
- Wavelengths
- Downstream: 1490 nm
- Upstream: 1310 nm
- XPON Support
- GPON
- Downstream: 2.5 Gb/s
- Upstream: 1.25 Gb/s
- EPON
- Downstream: 1.25 Gb/s
- Upstream: 1.25 Gb/s
- Standards Compliance
- Complies with SFP Multi-Source Agreement (MSA) – SFF-8074i
- DDM/DOM interface compatible with SFF-8472
- ITU-T G.984.2 / G.984.2 Amendment 1 (GPON)
- ITU-T G.988 (OMCI management)
- IEC-60825 Class I laser safety compliant
- RoHS compliant
Advantages
- Small Form-Factor Pluggable (SFP) design
- Plug-and-play installation into standard SFP ports
- No external ONU required – integrated system inside the module
- Low power consumption, ideal for continuous operation
- Reduces cabling, space, and deployment cost
- Suitable for switch-based FTTH / FTTR architectures
Download user Manual Guideline
Download firmware for PPOE
Download Firmware for Bridge mode
