ADSS Fiber Cable is available in 6 Core to 144 Core, with different diameters, span capacities, and pricing.
Important:
Core count does not define strength or span.
Diameter (OD) determines span capability and mechanical strength.
|

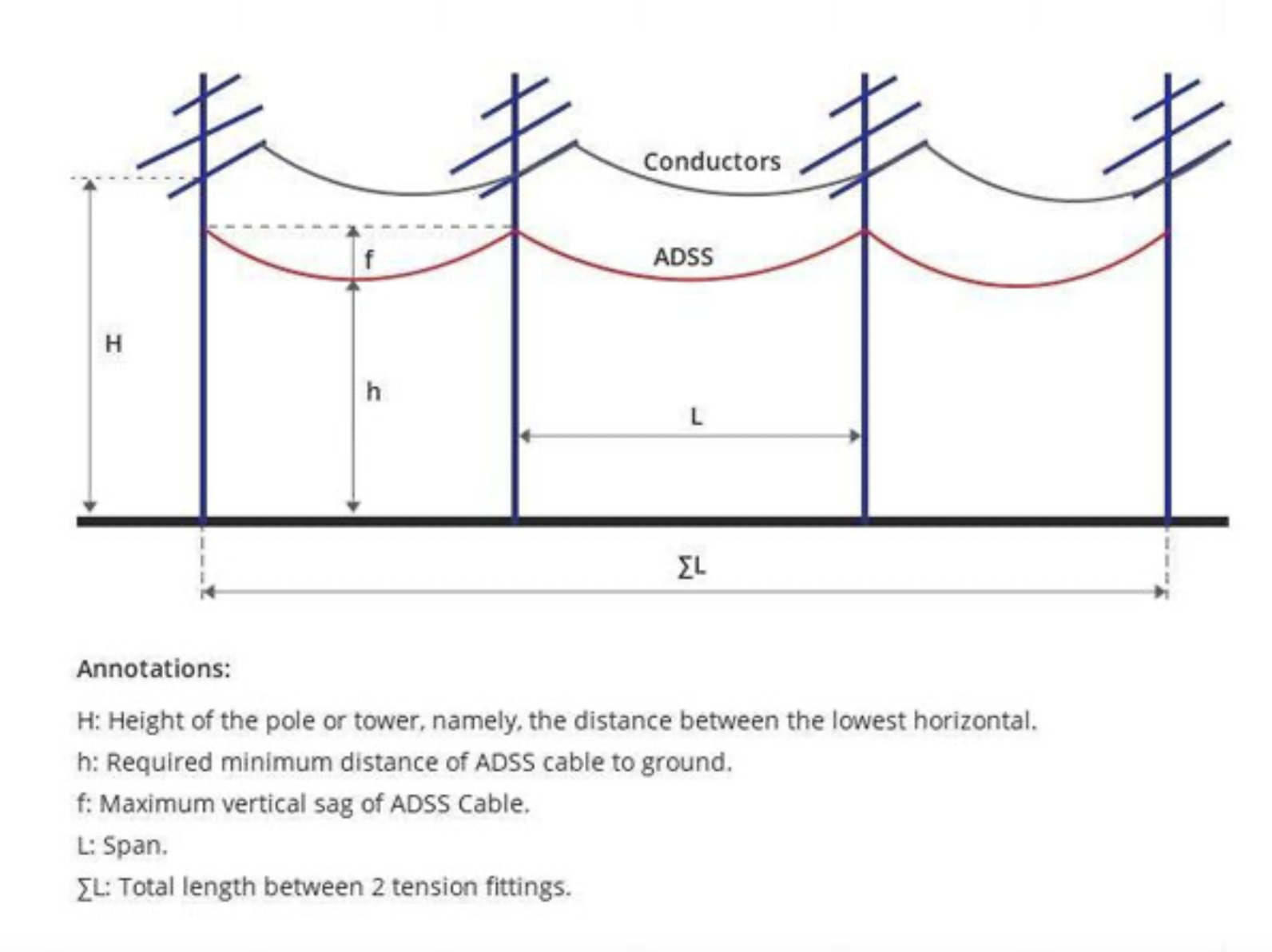

Span |
Size of Fiber |
|
50–100m |
9mm |
|
100–300m |
11.5mm |
|
300–600m |
14mm |
Things you and we MUST know.
1. Span distance (pole to pole)?
2. Is it near power line? (voltage?)
3. Location condition (wind / Weather)?
Bigger span = stronger cable (more aramid yarn)
PE vs AT Jacket (CRITICAL)
|
Condition |
Jacket |
|
Normal ISP |
PE |
|

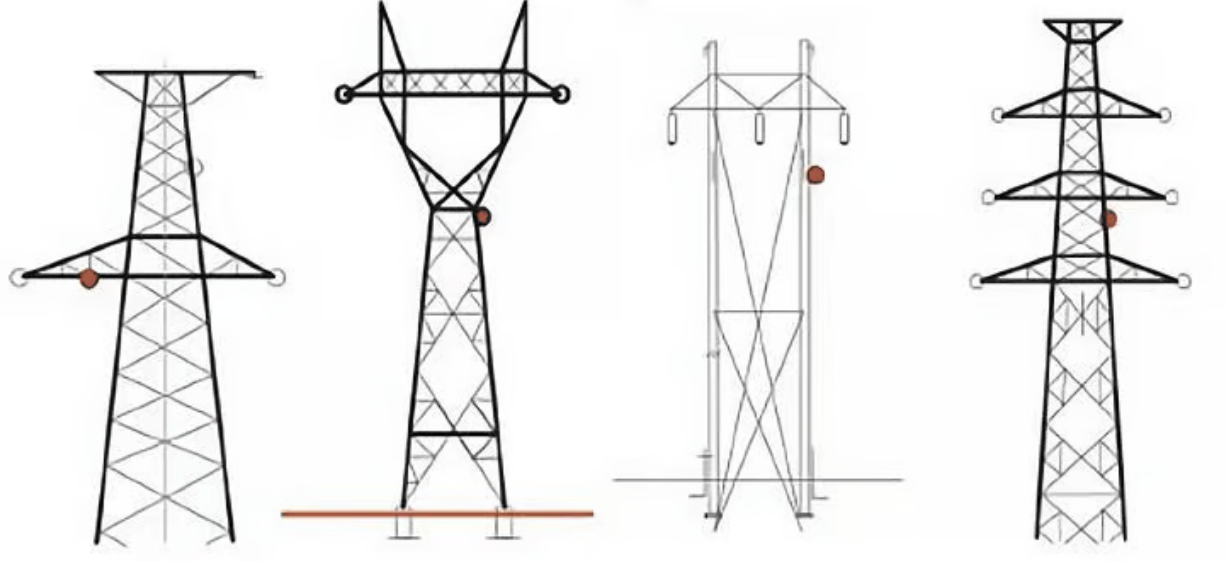

Near power line / NEA/ Hydropower |
AT (compulsory for high voltage) |

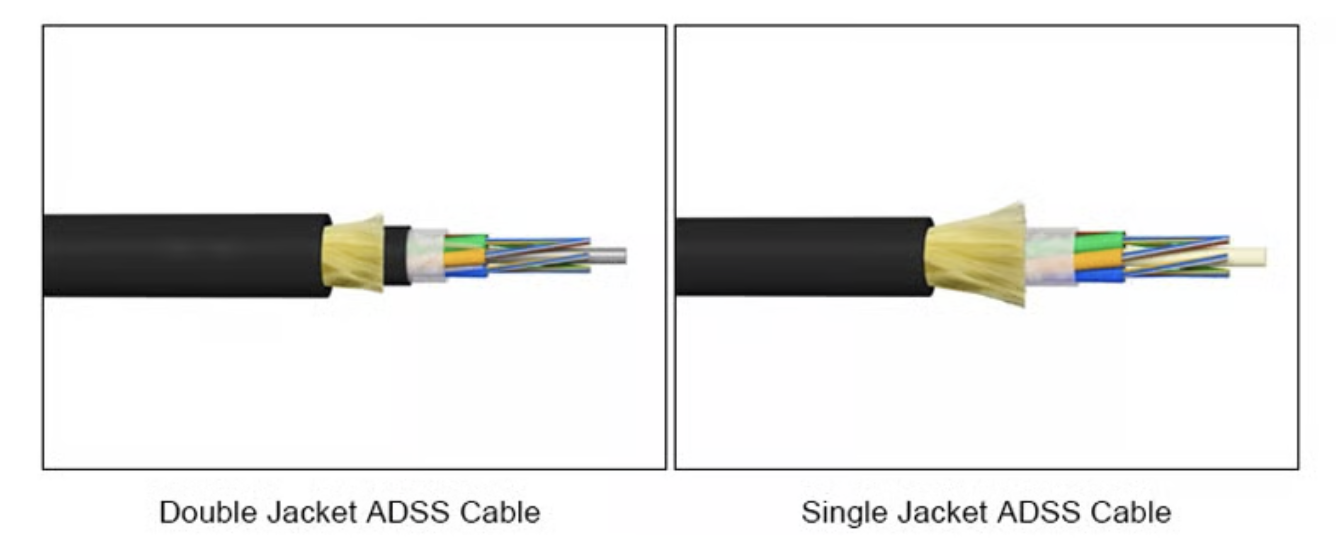

Double Sheath ADSS Fiber cable
