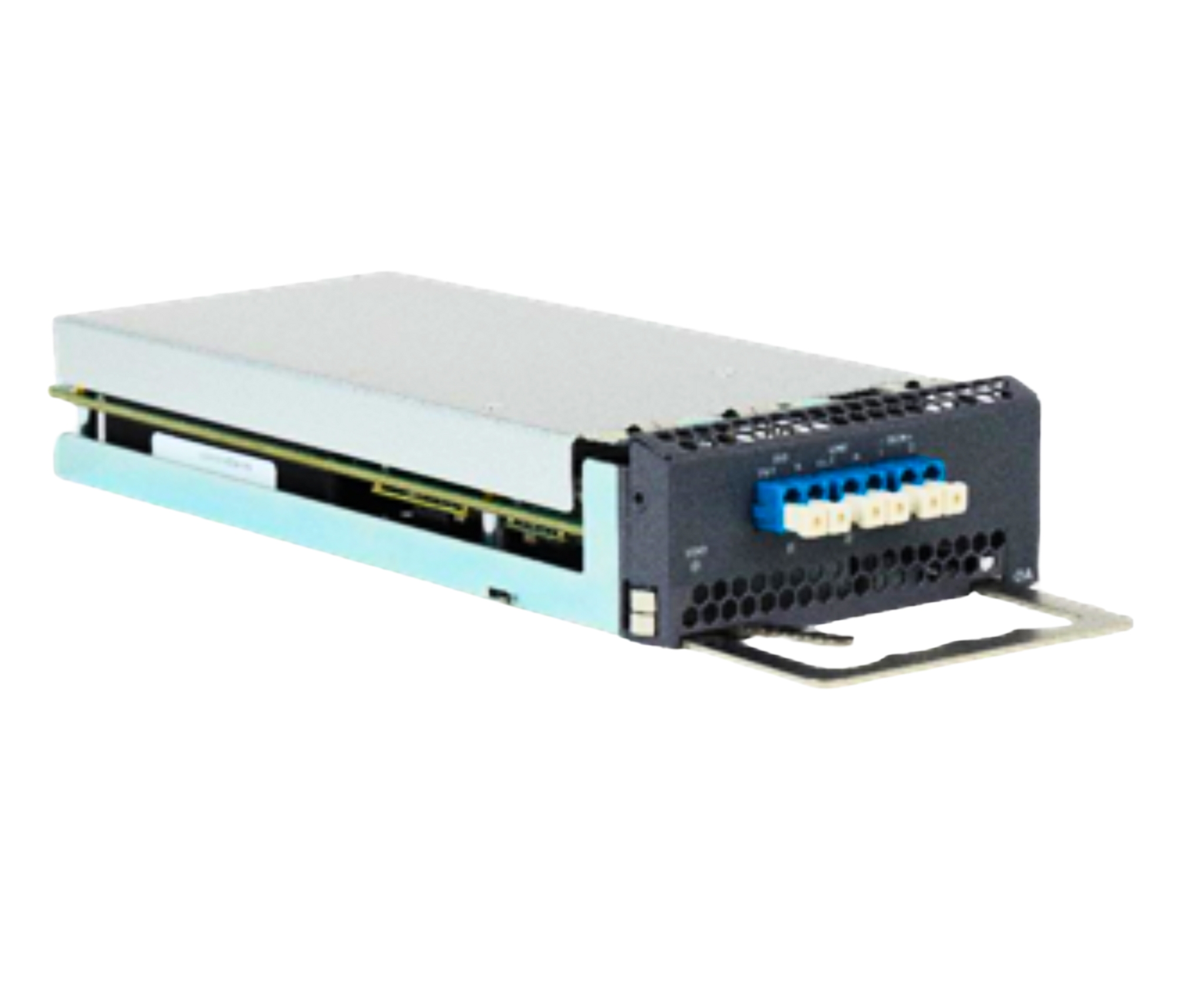

OA (Optical Amplifier Card)

Product Overview:

The main function of the OA (Optical Amplifier) board launched by D Tech Trading is to compensate the power of the optical signal in the transmission link, which can simultaneously amplify the optical signal of up to 48 channels (channel interval of 100GHz) or 96 channels (channel interval of 50GHz) in C-band, with the features of flat gain, adjustable gain and small noise index, etc. Meanwhile, the card has built-in OSC optical monitoring channel to support OSC-based DCN communication, which is an indispensable and important part of DWDM system and future high-speed system and all-optical network long-distance transmission.

Application case:

  •  Suitable for optical terminal stations (OTM), used as booster amplifier for multiplexed signals and pre-amplifier for de multiplexed signals
  • Suitable for optical relay stations (OLA) to amplify bi-directional transmission signals and extend the transmission distance.

Product Specification:

Component

Description

Slot number

1 slot

EDFA





Optional built-in 1*EDFA (BA, PA, LA parameters optional)



Optional built-in 2*EDFA (BA, PA, LA parameters optional)

OSC





Optional without OSC



Optional built-in 1*OSC



Optional built-in 2*OSC



Working wavelength: 1510nm



Working rate: 1.25Gb/s

VOA





Optional built-in VOA, the same number as EDFA



Location: EDFA input front



Inherent insertion loss: <1dB



Adjustment range: 0 ~ 15dB



Power down state is inherent insertion loss

MON monitoring port





Standard, the number of ports is the same as EDFA



MON and the main optical channel optical power difference of 21 ~ 23dB

OTDR measurement port





Optional, the number of ports is the same as the line interface



OTDR signal wavelength: 1625nm



OTDR channel loss: <1dB



EDFA Parameters:


Parameter

20G17

20G25

20G30

Wavelength range (nm)

1528 ~ 1568

1528 ~ 1568

1528 ~ 1568

Gain range (dB)

14 ~ 20

22 ~ 28

27 ~ 33

Maximum total output optical power (dBm)

≥20

≥20

≥20

Noise (dB)

<5.5

<5.5

<5.5

Gain flatness (dB)

<1.5

<1.5

<1.5

Polarization correlation loss (dB)

< 0.5

< 0.5

< 0.5

Input optical power detection range (dBm)

-23 ~ 8

-31 ~ 0

-36 ~ -5

Output optical power detection range (dBm)

-6 ~ 20

-6 ~ 20

-6 ~ 20

Reflection coefficient (dB)

< -30

< -30

< -30

Gain stability (dB)

±0.5

±0.5

±0.5
