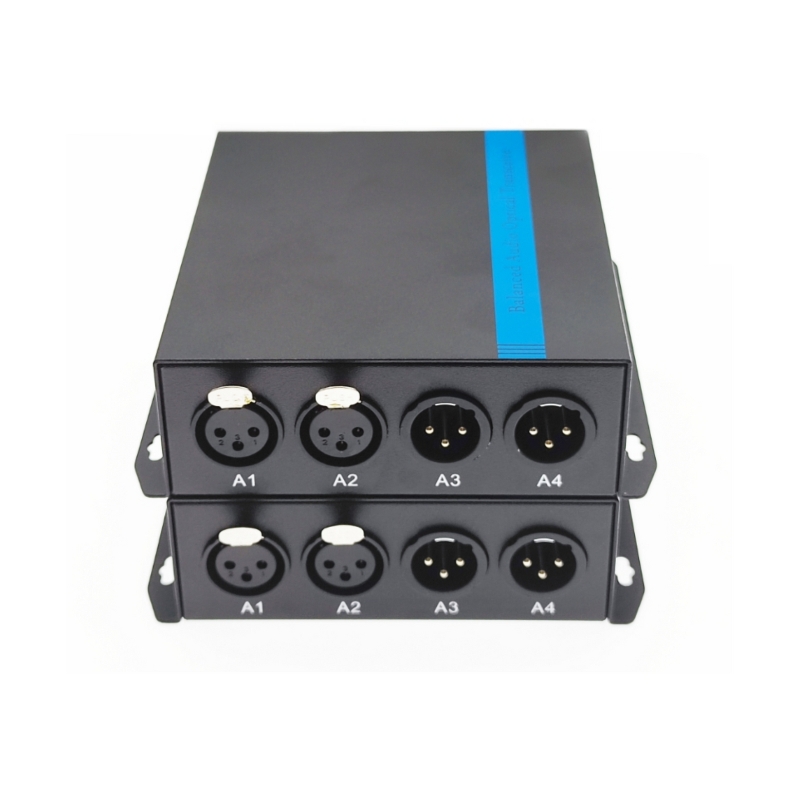

Audio to fiber converter XLR port
Visit the D-TECH Store
-1%
Rs
40,544
.18
M.R.P.: Rs 41,030.46
Exclusive of all taxes
Variation:

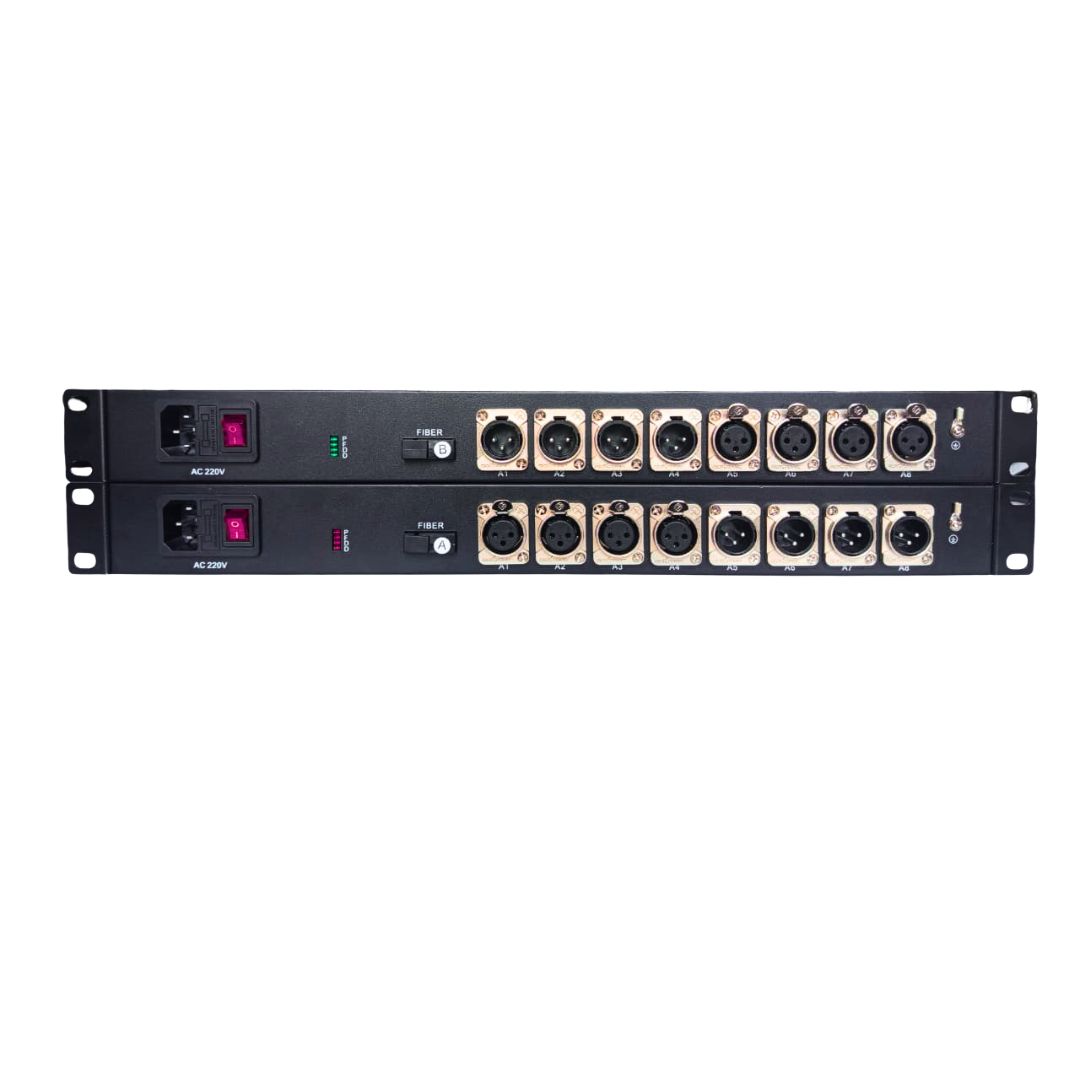

4CH Bidirectional
.jpg)
About this item
- XLR Port -OFC
Technical Details
| Warranty | 160-TRIAL-1 Year 215 |
Rs 40,544.18
-1%
M.R.P. Rs 41,030.46
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Piece | Rs 40,544.18 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
Balanced Audio Optical Transceiver
The Balanced Audio Optical Transceiver is designed for high-quality audio transmission over optical fiber using advanced digital uncompressed technology. It ensures real-time, distortion-free signal transmission, making it ideal for security systems, broadcasting, intelligent transportation systems (ITS), and professional audio applications.
Key Features
| All-digital uncompressed audio transmission for zero signal distortion |
| Supports long-distance transmission up to 20 km over single-mode fiber |
| Balanced XLR audio interface for professional applications |
| Real-time transmission with high signal-to-noise ratio |
| No on-site adjustment required, plug-and-play operation |
| LED indicators for power and link status monitoring |
| Durable aluminum alloy casing suitable for harsh environments |
Technical Specification
| Category | Specification |
|---|---|
| Product Type | Audio Optical Transceiver |
| Transmission Type | Digital Uncompressed Optical Transmission |
| Application | Audio over Fiber (Security, Broadcast, ITS) |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single Mode (9/125 µm) |
| Wavelength | 1310 nm / 1550 nm |
| Optical Output Power | -8 to +3 dBm |
| Receiver Sensitivity | -14 to -17 dBm |
| Fiber Connector | FC / SC / ST (Optional) |
| Audio Interface | XLR (Balanced) |
| Audio Impedance | 600 Ohm |
| Max Audio Voltage | 3.0 Vp-p |
| Frequency Response | 10 Hz – 3 kHz |
| Total Harmonic Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 95 dB |
| Transmission Technology | All-digital, real-time, no distortion |
| Optical Technology | Gigabit Fiber Transmission |
| Indicators | LED Status (Power / Link) |
| Adjustment | No On-site Tuning Required |
| Installation | Standalone or Rack Mount |
| Casing Material | Aluminum Alloy |
| Power Supply | AC 220V |
| Operating Temperature | -35°C to +70°C |
| Humidity | 0% – 95% (Non-condensing) |
XLR Port -OFC
