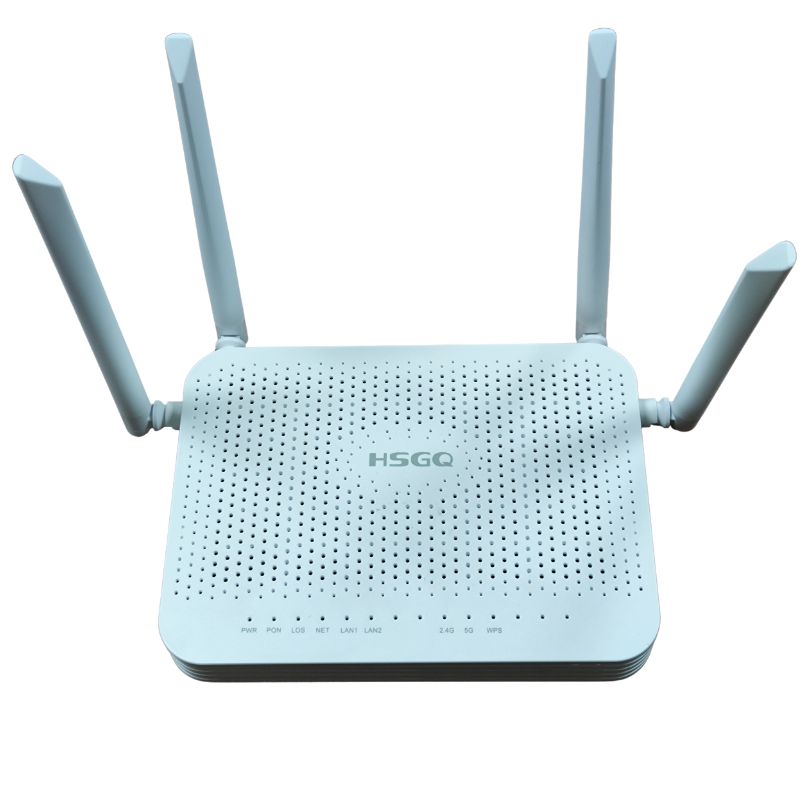

WiFi 6 AX3000 GPON/EPON ONU – Specification

This ONU comes with WiFi 6 AX3000 and supports both GPON and EPON. It is designed for stable internet, long-distance PON links, and strong wireless coverage at home or office.

Main Features

• Supports up to 20 km PON transmission distance
• Works with IEEE802.3ah and ITU-T G.984
• Automatic ONU discovery and remote upgrade
• VLAN, QoS, Port Binding, Port Forwarding supported
• Supports DBA (Dynamic Bandwidth Allocation)
• Alarm function for easy fault detection
• TR069 support for remote configuration
• PPPoE, DHCP Server, IPTV, NAT supported
• IPv4 / IPv6 supported
• Easy Mesh and Cloud Management

WiFi 6 (AX3000) Features

• Speed: 574 Mbps (2.4 GHz) + 2402 Mbps (5 GHz)
• Supports 802.11a/b/g/n/ac/ax
• Up to 8 SSIDs
• Automatic channel selection
• Supports hidden SSID
• Channel width: 20/40/80/160 MHz
• Wireless security: WEP, WPA, WPA2, WPA3

Technical Details

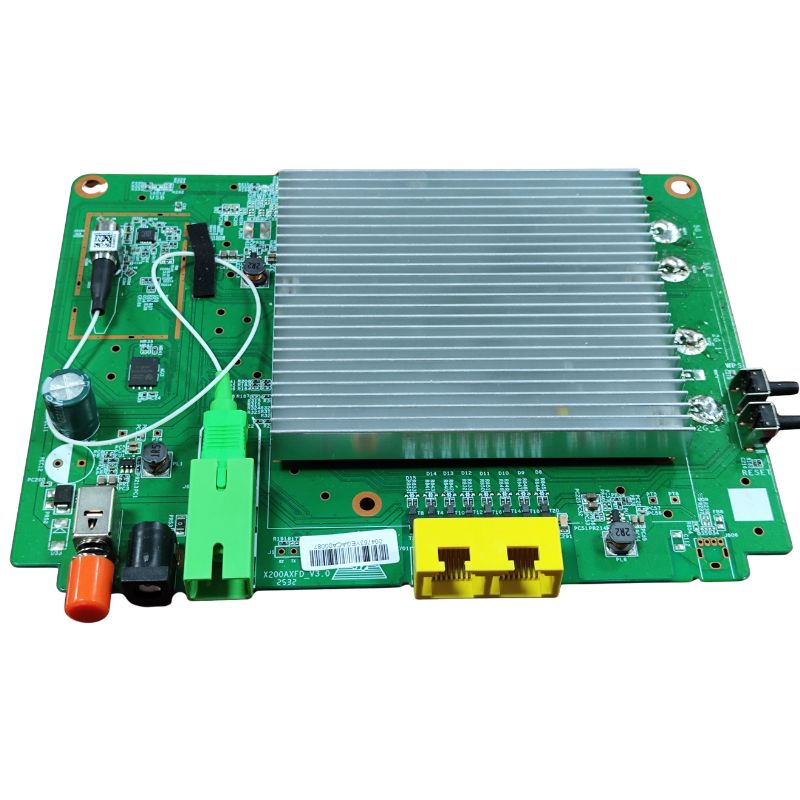

Hardware

• CPU: RTL9607FD
• WiFi Chip: RTL8192XBR + RTL8832CR
• Flash: 128 MB
• DDR: 512 MB
• Ports: 2 × 10/100/1000M RJ45

PON

GPON Mode

• Upstream: 1.25 Gbps
• Downstream: 2.5 Gbps
• TX Power: 0 to +4 dBm
• RX Sensitivity: –7 dBm to –28 dBm

EPON Mode

• Upstream: 1.25 Gbps
• Downstream: 1.25 Gbps
• TX Power: 0 to +4 dBm
• RX Sensitivity: –7 dBm to –27 dBm

Antenna

• 4 × 5 dBi external antennas

Size

• 186 mm (L) × 136 mm (W) × 33.5 mm (H)

Environment

• Working temp: 0°C to 50°C
• Storage temp: –40°C to 80°C
• Humidity: 10%–85% (working), 5%–95% (storage)

Power

• 12 V / 1.5 A DC

Wireless Band

• 5 GHz: 5.15–5.85 GHz
• 2.4 GHz: Channels 1–13

Wireless Channels

• 36, 40, 44, 48, 52, 56, 60, 64, 149, 153, 157, 161, 165

Wireless Speed

• Up to 3000 Mbps

Security

• WPA-PSK, WPA2-PSK, WPA3-SAE
