DWDM MUX AND DEMUX (Red 29-36) & (Blue 45-52)1U - 8CH
- DWDM MUX AND DEMUX (Red 29-36) & (Blue 45-52)1U RACK WITH 2 LGX BOX 8CH BIDI SINGLE FIBER
| Warranty | 170-TRIAL-1 Year 70 |
if defective or damaged
Seller warranty (if applicable)
Multiple options available

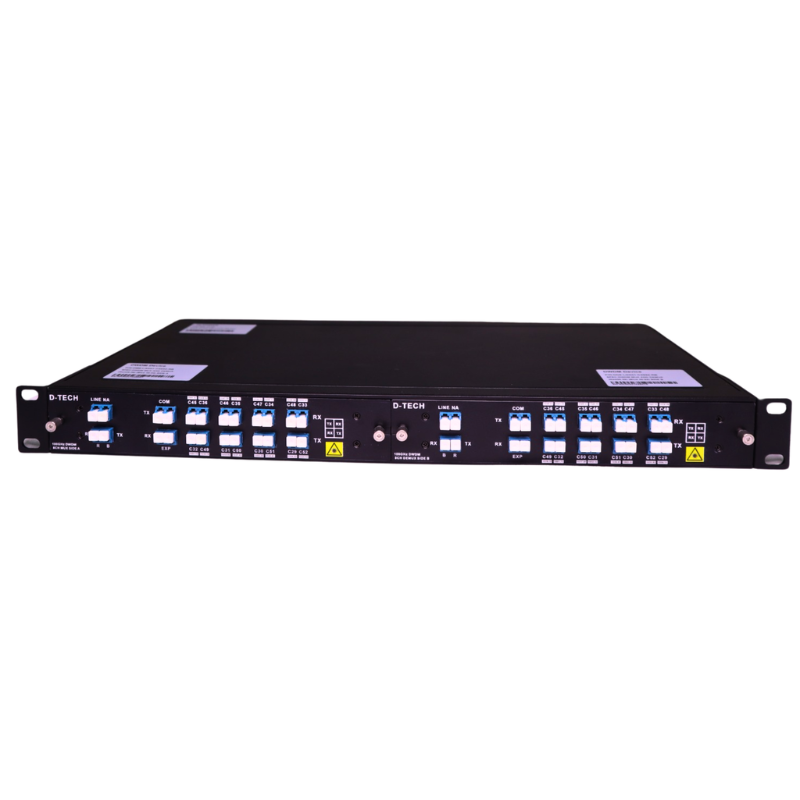

DWDM MUX & DEMUX (Red 29–36 / Blue 45–52) 1U – 8 Channel
8CH DWDM BiDi Multiplexer / Demultiplexer • 1U Rack Mount • Dual LGX Module • Single Fiber Transmission
The 8 Channel DWDM MUX / DEMUX (BiDi) is a high-performance passive optical multiplexing solution designed to transmit multiple optical wavelengths over a single fiber. Built in a standard 19-inch 1U rack-mount chassis, it combines and separates eight DWDM channels while reducing fiber infrastructure costs.
This passive DWDM system utilizes ITU-T C-Band DWDM channels with Red Channels 29–36 and Blue Channels 45–52. It includes two LGX fiber modules for convenient installation, cable management, and future network expansion. The solution is ideal for telecom operators, ISPs, enterprise backbone networks, and data centers requiring reliable high-capacity optical transmission.
Key Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | DWDM MUX / DEMUX (BiDi) |
| Channel Capacity | 8 Channels |
| Channel Group | Red 29–36 / Blue 45–52 |
| ITU Standard | ITU-T DWDM C-Band Grid |
| Transmission Type | Single Fiber Bi-Directional (BiDi) |
| Operation | Passive (No Power Required) |
| Rack Size | 19-inch, 1U Rack Mount |
| LGX Modules | 2 × LGX Fiber Adapter Boxes |
| Fiber Management | Integrated LGX Modular Design |
| Installation | Standard 19-inch Rack Cabinet |
Applications

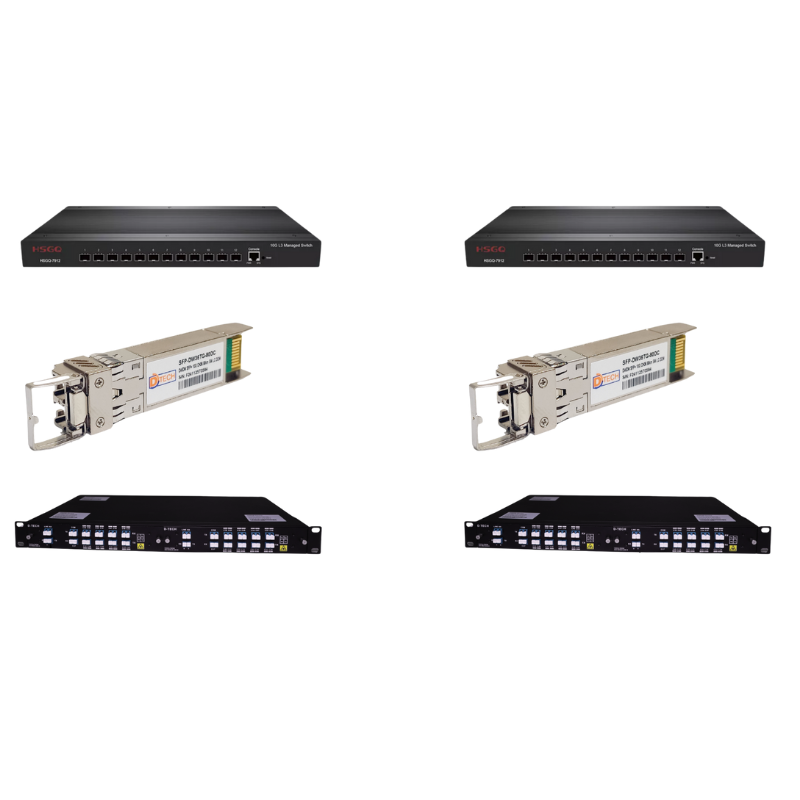

This is a passive DWDM multiplexing solution that requires no external power supply. It is designed for high-density optical transmission using ITU-T DWDM wavelengths and is compatible with telecom-grade DWDM SFP, SFP+, QSFP, and other optical transceiver modules operating on the corresponding DWDM channels.
