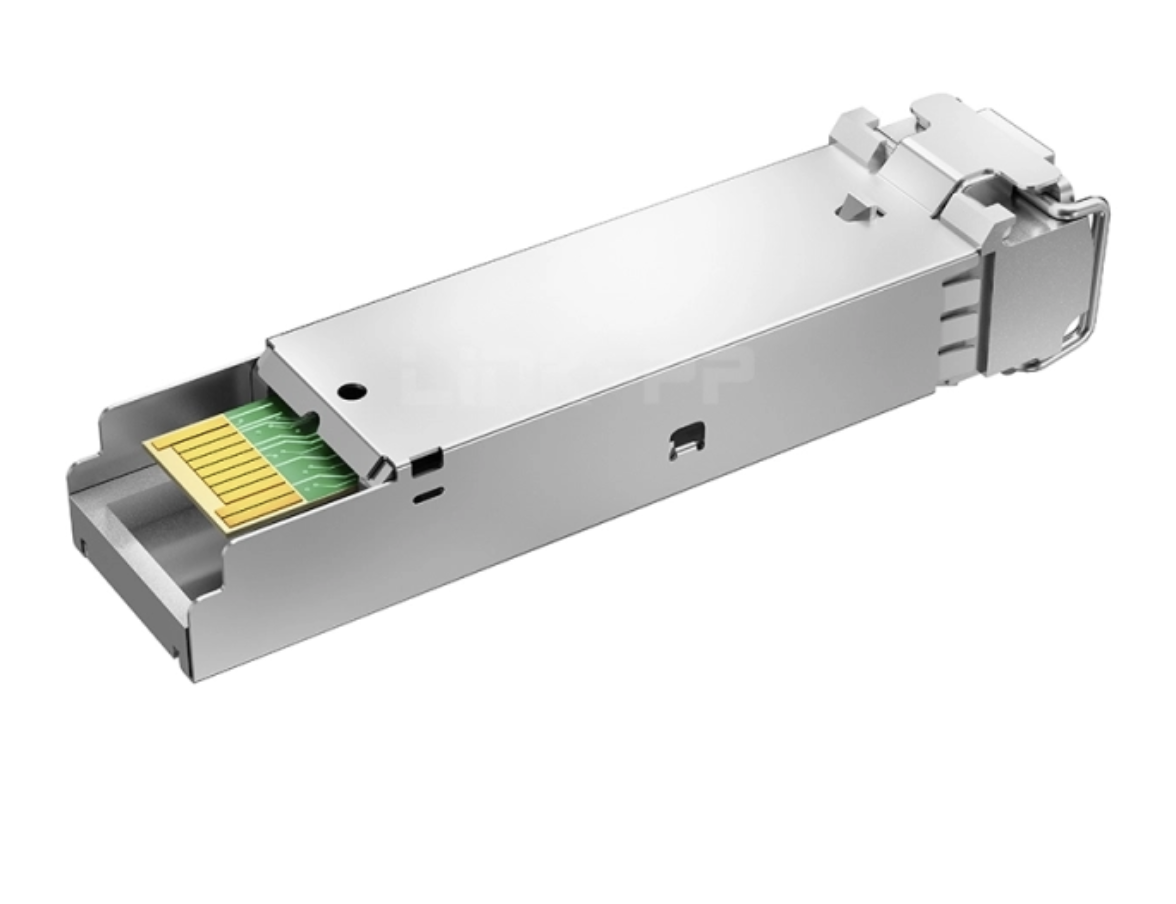

The SFP 622M 1310nm 47Km LC Duplex transceiver
is a high-performance,
cost-effective optical module designed for long-distance transmission in SDH/SONET, ATM, and
other optical networking applications.
Operating at a data rate of 622 Mbps,
it uses a 1310nm FP laser and supports transmission distances up to 47 kilometers over single-mode fiber (SMF), making it ideal for metro
and access networks.
Key
Features:
1. Form Factor: SFP (Small Form-Factor Pluggable)
2. Data Rate: 622 Mbps (OC-12/STM-4)
3. Wavelength: 1310nm
4. Transmission Distance: Up to 47 km
over single-mode fiber
5. Connector: LC duplex
6. Receiver Type:
PIN photodiode
7. Digital Diagnostics Monitoring (DDM):
Optional
8. Power Supply: +3.3V
9. Power Consumption: < 1.5W
(typical)
10. Operating Temperature: 0°C to +70°C
(commercial); -40°C to +85°C (industrial optional)
11. Compliance:
o SFP
MSA (Multi-Source Agreement)
o SONET
OC-12/SDH STM-4 standards
o RoHS
compliant
o Class
1 Laser Safety (IEC-60825)
Applications:
1. SONET/SDH
OC-12/STM-4 links
2. ATM/Telecom
backbone networks
3. Long-haul
optical transmission
4. Enterprise
LAN/WAN environments
5. Metro
Ethernet and access network deployments
