Overview

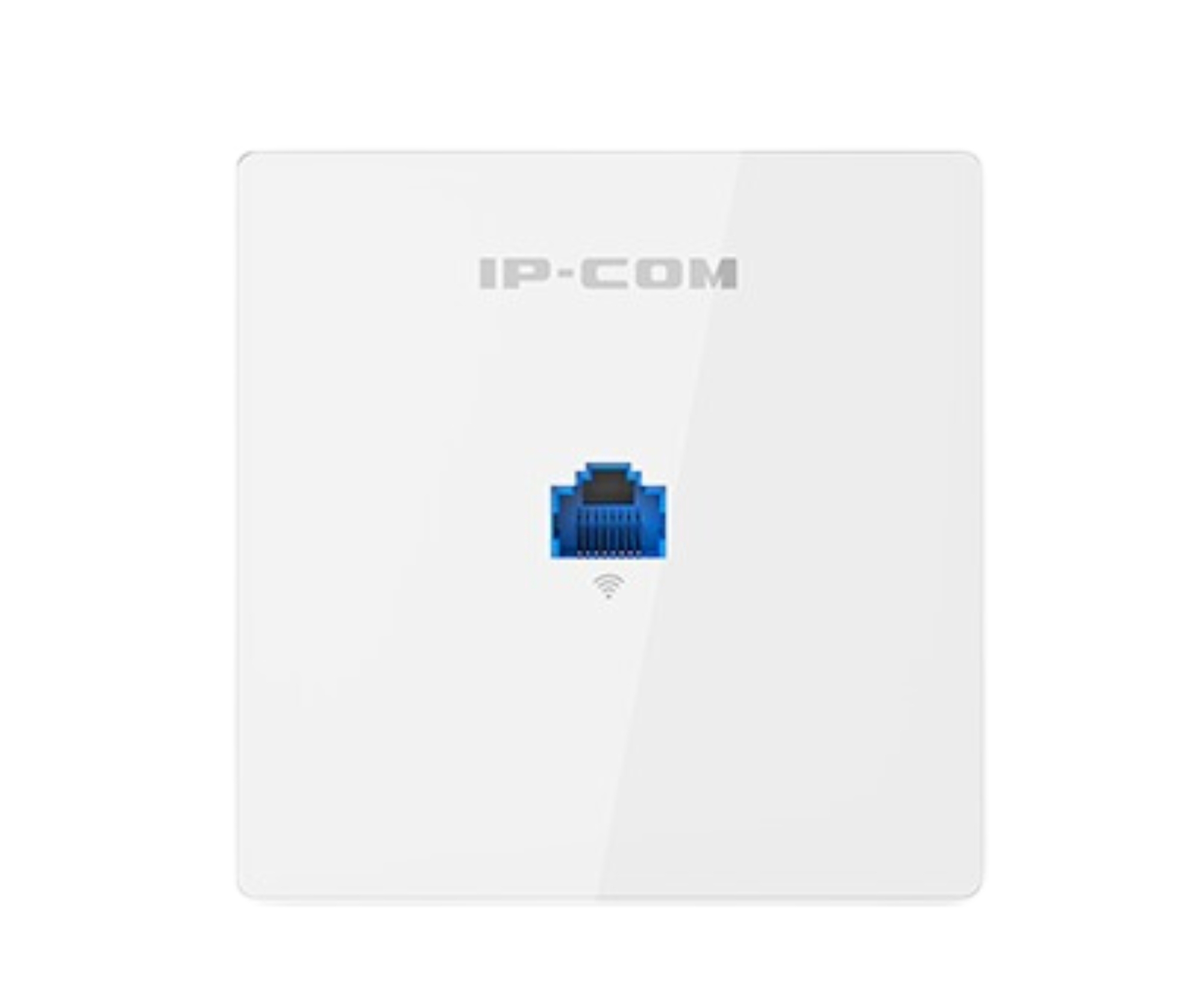

The
AC1200 Dual Band Gigabit In-Wall Access Point (AP) is an IP-COM
high-performance wireless access point designed for hotel rooms, villas, large
apartments, KTV compartments and other places. Compliant with IEEE 802.11ac
protocol and Wave 2 standard, and featured with the MU-MIMO technology, APs of
this series support a dual-band concurrent wireless speed of up to 1167 Mbps.
Adoption of the standard 86 mm x 86 mm in-wall design enables that the AP can
be installed in any in-wall electrical boxes of 86 mm x 86 mm and 75 mm x 75
mm. Elegant and exquisite appearance goes well with the interior decoration
design of the room. With the assistance of the existing in-wall electrical box
structure, the AP helps you deploy your wireless networks easily, freeing you from
time-consuming networking, and effectively addressing the weak Wi-Fi signal
problem in guest rooms.
|
Product Information
|
|
Product Model
|
W36AP
|
|
Product Appearance
|
In-wall access point
|
|
Product Dimension
|
86 x 86 x 32 mm
|
|
Application
Scenarios
|
Wi-Fi coverage for
large-sized apartments/villas/hotel rooms
|
|
Hardware Specifications
|
|
Working Frequency
Band
|
2.400 – 2.4835 GHz,
5.15 0 – 5.250 GHz
|
|
Wireless Protocol
Standard
|
IEEE
802.11a/b/g/n/ac
|
|
2.4 GHz Access Rate
|
1-300Mbps
|
|
5 GHz Access Rate
|
6-867Mbps
|
|
2.4 GHz Maximum
Connections
|
128
|
|
5 GHz Maximum
Connections
|
128
|
|
Ethernet Port
|
2 10/100/1000 Base
TX ports
|
|
Reset Button
|
1 reset button
|
|
LED Indicators
|
1 x SYS LED
indicator and 1 x LAN LED indicator
|
|
Power Consumption of
the Whole Device
|
Full load 7.8 W
|
|
Power Supply Mode
|
IEEE 802.3af
|
|
2.4 GHz Antenna Gain
|
4 dBi
|
|
5 GHz Antenna Gain
|
4 dBi
|
|
2.4 GHz Output Power
|
20 +/- 1.5 dBm
|
|
5 GHz Output Power
|
16 +/- 1.5 dBm
|
|
11b 1 Mbps Received
Sensitivity
|
-95 dBm
|
|
11n MCS7 Received
Sensitivity
|
-73 dBm
|
|
11a 6 Mbps Received
Sensitivity
|
-93 dBm
|
Software Specification
|
Feature
|
Status
|
|
Operating Mode
|
AP, Client + AP
|
|
SSID Hide
|
Supported
|
|
2.4 GHz SSID Number
|
8
|
|
5 GHz SSID Number
|
4
|
|
Chinese SSID
|
Supported
|
|
WEP
|
64/128 bit
encryption supported
|
|
WPA-PSK
|
AES/TKIP
|
|
WPA2-PSK
|
AES/TKIP
|
|
WPA
|
Supported
|
|
WPA2
|
Supported
|
|
Wireless Access
Control
|
MAC address-based
filtering supported
|
|
TX Power Adjustment
|
Supported
|
|
SSID Isolation
|
Supported
|
|
AP Isolation
|
Supported
|
|
Wireless User Access
Limit
|
Supported
|
|
Weak Signal Client
Access Limit
|
Supported
|
|
WMM
|
Supported
|
|
5 GHz Band
Navigation (5 GHz Priority)
|
Supported
|
|
Multicast to Unicast
|
Supported
|
|
Detection Broadcast
Message Reply Inhibition
|
Supported
|
|
Access Control
|
Supported
|
|
VLAN and SSID
Binding
|
Supported
|
|
LED Control
|
Supported
|
|
Diagnostic Tool
|
ping
|
|
Timed Reboot
|
Supported
|
|
Cyclic Reboot
|
Supported
|
|
Device Management
|
Web management
|
|
Uplink Detection
|
Supported
|
|
Hardware Watchdog
|
Supported
|
AC1200 Dual Band Gigabit In-Wall Access Point
