    1. Product Description

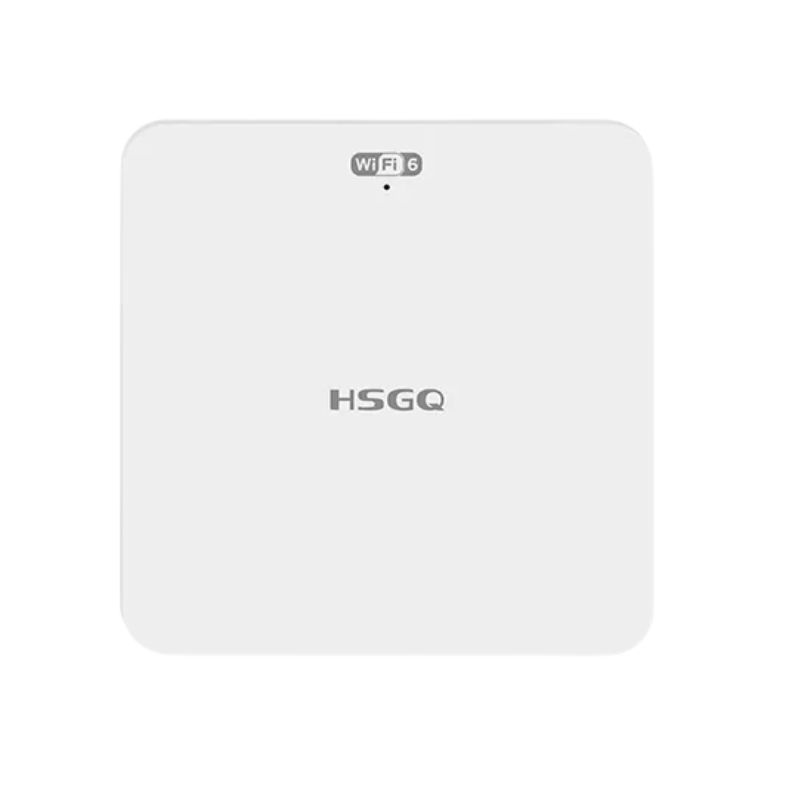

      HSGQ-F881 is a Pof ceiling-mounted optical AP in FTTH solution. HSGQ-F881 provides 1'GE LAN port, 12.5GE PD port and AX3000 WiFi, high-speed access, downlink 2.5Gbps, uplink 1.25Gbps, supports plug-and-play, OMCI and TR009 remote maintenance functions: supports optical-electrical hybrid cable access, no power adapter required.

      1. Easy Installation: Directly installed on the ceiling, no additional power cord is required, saving wiring time and cost.
      2. Simple Appearance: Beautiful design, can be well integrated into the indoor environment.
      3. Wide Coverage: Generally equipped with high-gain antennas, wide signal coverage, can effectively solve the problem of signal dead spots.
      4. Easy Management: Most PoE ceiling APs support centralized management, which is convenient for configuration and maintenance.
      5. Application Scenario: Suitable for hotels, shopping malls, office buildings, schools and other places.


      Key Feature

      ·         Adopting point-to-multipoint network topology, effectively collecting and converging the scattered Ethernet services of users, and providing standard RJ45 Fast Ethernet interface on the user side

      ·         Dynamic bandwidth allocation mechanism enables all users to share bandwidth more reasonably, achieve reliable quality of service (QoS), and ensure the service quality of different services in the same network

      ·         Support IGMP multicast to effectively utilize broadband

      ·         Support multicast VLAN

      ·         Provides remote management via OLT and supports local console management

      ·         Support line loopback detection function of user-side Ethernet interface

      ·         Support IEEE 802.10 VLAN protocol

      ·         Support broadcast storm suppression

      ·         Support IEEE802.3x flow control (fall duplex)

      ·         Support IEEE 802.1p. Cos protocol

      ·         Support WR and SP queue scheduling algorithms

      ·         Support port speed limit

      ·         Support-10°C-50°C working environment

      ·         Supports IPv4 and IPv6

      ·         Support cloud management

      ·         Support PoF, support PD


      Technical Parameter

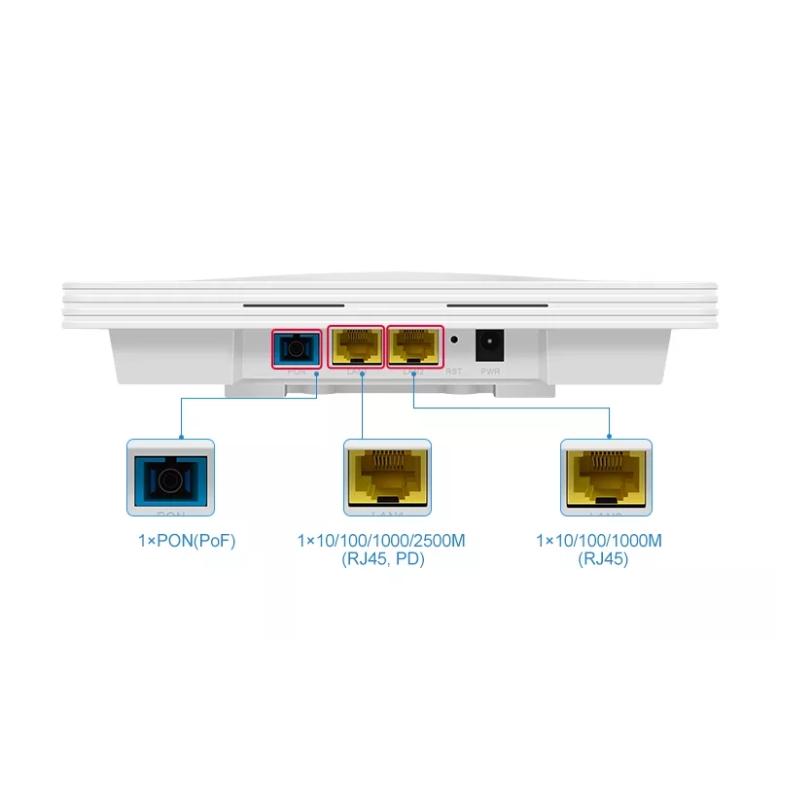

      ItemHSGQ-F881
      User Interface1*GE RJ45
      1*2.5GE RJ45 PD
      2.4 GHz: 574Mbps, 5.8GHz: 2402Mbps
      PON

      GPON and EPON mode self-adaptation

      Interface mode: Optical-electric composite cable

      GPON: upstream 1.25Gbps /downstream 2.5Gbps

      Transmit optical power: 0~4dBm

      Optical Power: -7dBm~-28dBm

      EPON: upstream 1.25Gbps /downstream 1.25Gbps

      Transmit optical power: 0~4dBm

      Optical Power: -7dBm~-27dBm

      PoF Input voltage: 48V-57VPoF

      Transmission distance: 300m

      Ethernet1*10/100/1000/2500M self-adaption
      Transmission distance:100m
      Size188mm x 180mm x 43mm
      EnvironmentOperating temperature: -10°C~50°C
      Operating humidity: 0%~85% (non-condensing)
      Storage temperature: -40°C~80°C
      Storage temperature: 5%~95% (non-condensing)
      Power SupplyPoF: 48V-52V, 0.25A
      DC: 12V/ 1.5A
      Power Consumption<12W

      WiFi6 AX3000
