Failover Media converter
.png)
Failover Media converter

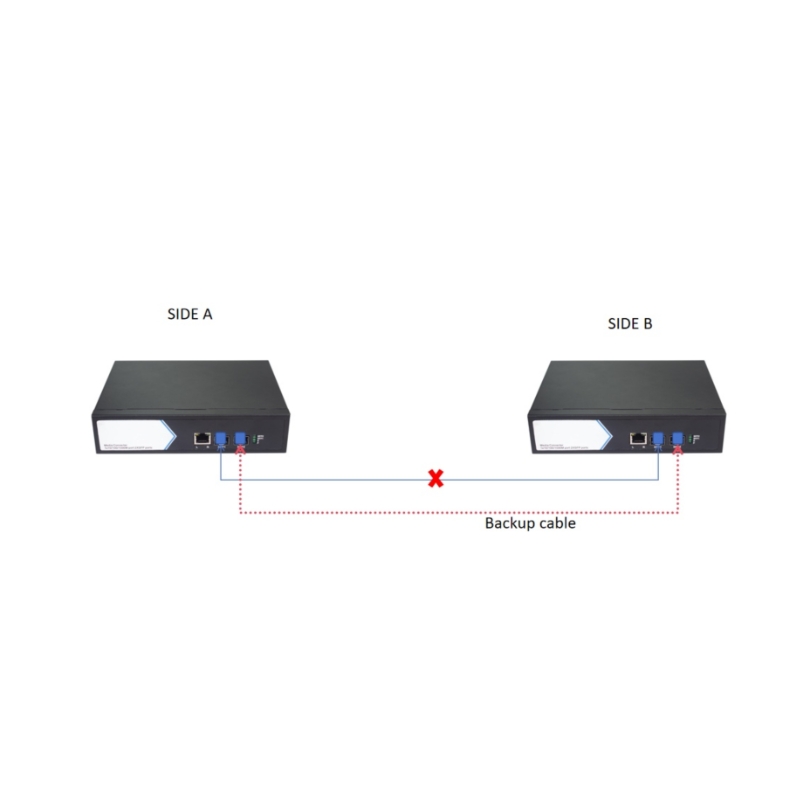

A Failover Media Converter is a device used to ensure continuous network connectivity by automatically switching to a backup network path in case of a failure. It converts media types (e.g., from fiber to copper or vice versa) and supports redundant connections for enhanced reliability. In the event of a primary link failure, the failover functionality instantly activates the secondary link, minimizing downtime and maintaining uninterrupted network performance. This Media converter is with 1x10/100/1000Mbps adaptive RJ45 ports, 2x1000M SFP uplink ports. The RJ45 port supports MDI/MDIX and wire speed forwarding functions. Store and forward to provide stable and reliable data transmission. Device provide 2 Ethernet optic port to realize 1+1 optic backup.
|
Fix Ports |
|
|
Fixed port |
1x10/100/1000 Base-T + 2x1000MBase-X SFP |
|
Power interface |
AC100-240V triangle interface |
|
LED Indicators |
P, 9, 10, Link/active, Speed |
|
Optical fiber interface |
SFP |
|
|
|
|
Cable Type & Transmission Distance |
|
|
Twisted-pair |
0-100m/ 250m |
|
Single mode optical fiber |
20/40/60/80/100KM |
|
Multi mode optical fiber |
550M |
|
|
|
|
Electrical Specifications |
|
|
Input voltage |
AC 100-240V 50/60Hz |
|
Total Power consumption |
<10W |
|
|
|
|
L2 |
|
|
capacity |
20G |
|
Packet forwarding rate |
14.88Mpps |
|
MAC address table
|
4K |
|
Buffer |
8M |
|
Forwarding delay |
<5us |
|
MDX/MIDX |
Support |
|
Jumbo Frame |
16Kbytes |
|
|
|
|
Environment |
|
|
Operating temperature |
-10℃~+50℃ |
|
Storage temperature |
-40℃~+70℃ |
|
Relative humidity
|
10%~90% (non-condensing) |
|
Thermal methods |
Fan-less
design, natural heat dissipation |
|
MTBF
|
50,000 hours |
|
|
|
|
EMC & Ingress Protection |
|
|
Surge protection for Ethernet port |
IEC 61000-4-5
Level 4（4/2KV）（10/700us） |
|
DIP |
IEC 61000-4-11
Level3 （10V） |
|
ESD |
IEC 61000-4-2
Level 4 （8K/15K） |
|
Free fall |
0.5m |
|
|
|
|
Mechanical Dimensions |
|
|
Product size |
220*162*37mm（LxWxH） |
|
Installation Method |
Desktop; Wall mounted |
|
Weight |
0.82KG |
