1. Product Introduction

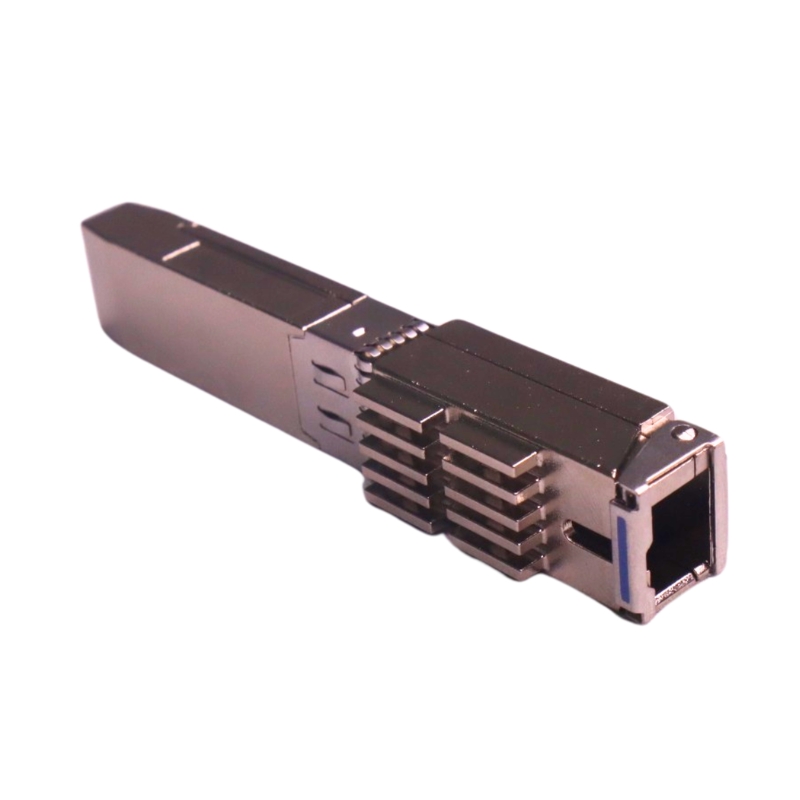

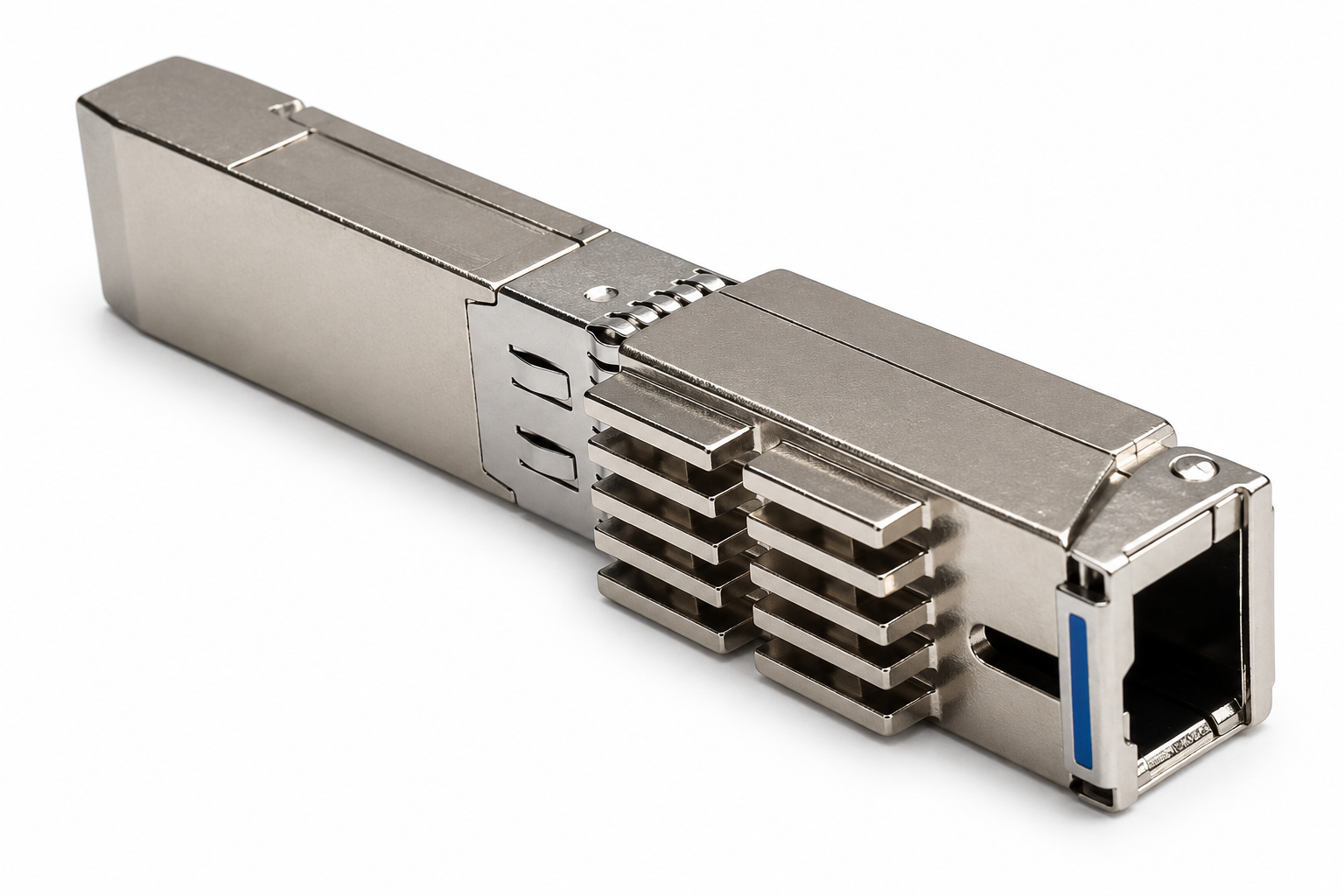

Product Name: XPON STICK ONU (GPON/EPON Adaptive),
commonly known as "Cat Stick"
Chip Solution: Galachip GC1601A
Product Features:
Ø
3.3V power supply, maximum transmission distance
of 20KM
Ø
Supports data encryption
Ø
Compatible with SFP MSA
Ø
Supports VLAN function configuration
Ø
RoHS compliant
Ø
Supports online software upgrades
Ø
Supports fault alarms
Ø
Supports dynamic bandwidth allocation
Ø
Supports multicast transmission
Ø
Compatible with SC/APC or SC/UPC interfaces
2.
Application
Scenario Overview
The XPON STICK optical module, referred to as the "SFP
(SFP+) packaged PON ONU module" in China Telecom's enterprise standards,
is primarily used to replace SFU optical modems, enabling gigabit (10-gigabit)
single-port photoelectric conversion in PON networks.
The XPON STICK optical module fully meets the requirements
of telecom-grade FTTB/FTTH/FTTO equipment. It can be hot-swapped into the SFP
slot of a Layer 2 Ethernet switch, allowing the entire device to function as an
ONT. This enables the device to directly connect to the GPON optical network.
The central office OLT only needs to register the GPON STICK optical module
like a regular optical modem, and the communication device can complete the
switch from the original P2P network to the PON network.
