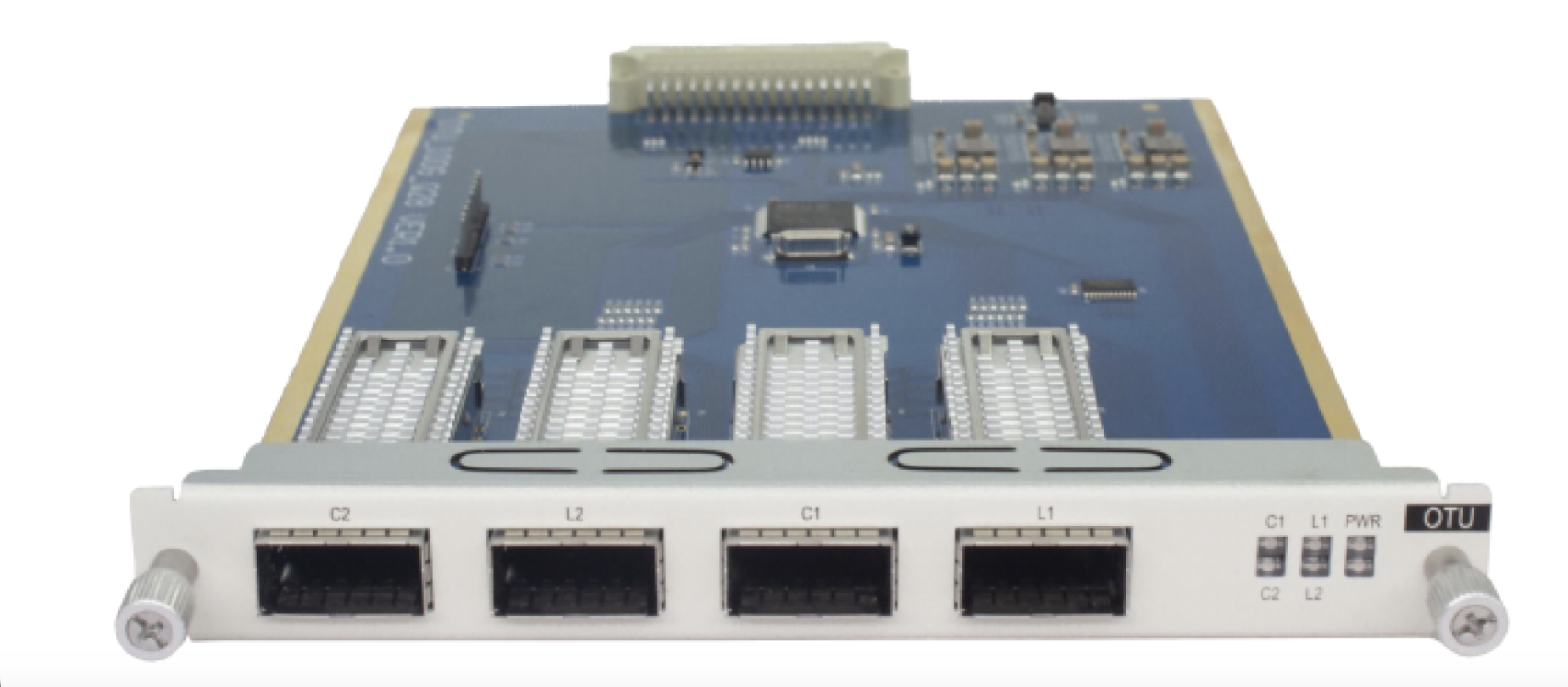

100G OTU/OEO Transponder Service Card
General Specifications
| General Specifications | |
|---|---|
| Product Type | 100G OTU/OEO Transponder Service Card |
| Function | Optical-Electrical-Optical (OEO) Conversion & Signal Regeneration |
| Application | DWDM Transmission, Fiber Amplification, Long-distance Networks |
| Maximum Capacity | 4 × 100G (Unidirectional) or 2 × 100G (Bidirectional) |
| Service Access | 100GBASE-SR4 / CWDM4 / LR4 / PSM4 / OTU4 |
| Transmission Type | Unidirectional / Bidirectional |
| Wavelength Range | CWDM: 1271 – 1611 nm |
| DWDM: C-Band (100 GHz / 50 GHz) | |
| Multimode: 850 nm | Single Mode: 1310 nm | |
| Supported Services | SDH, SONET, Ethernet, SAN, OTN, Video |
| Optical Conversion | Client signal converted to DWDM wavelength |
| Amplification | Optical signal regeneration & amplification |
| Monitoring | DDM, Link detection, No-light shutdown |

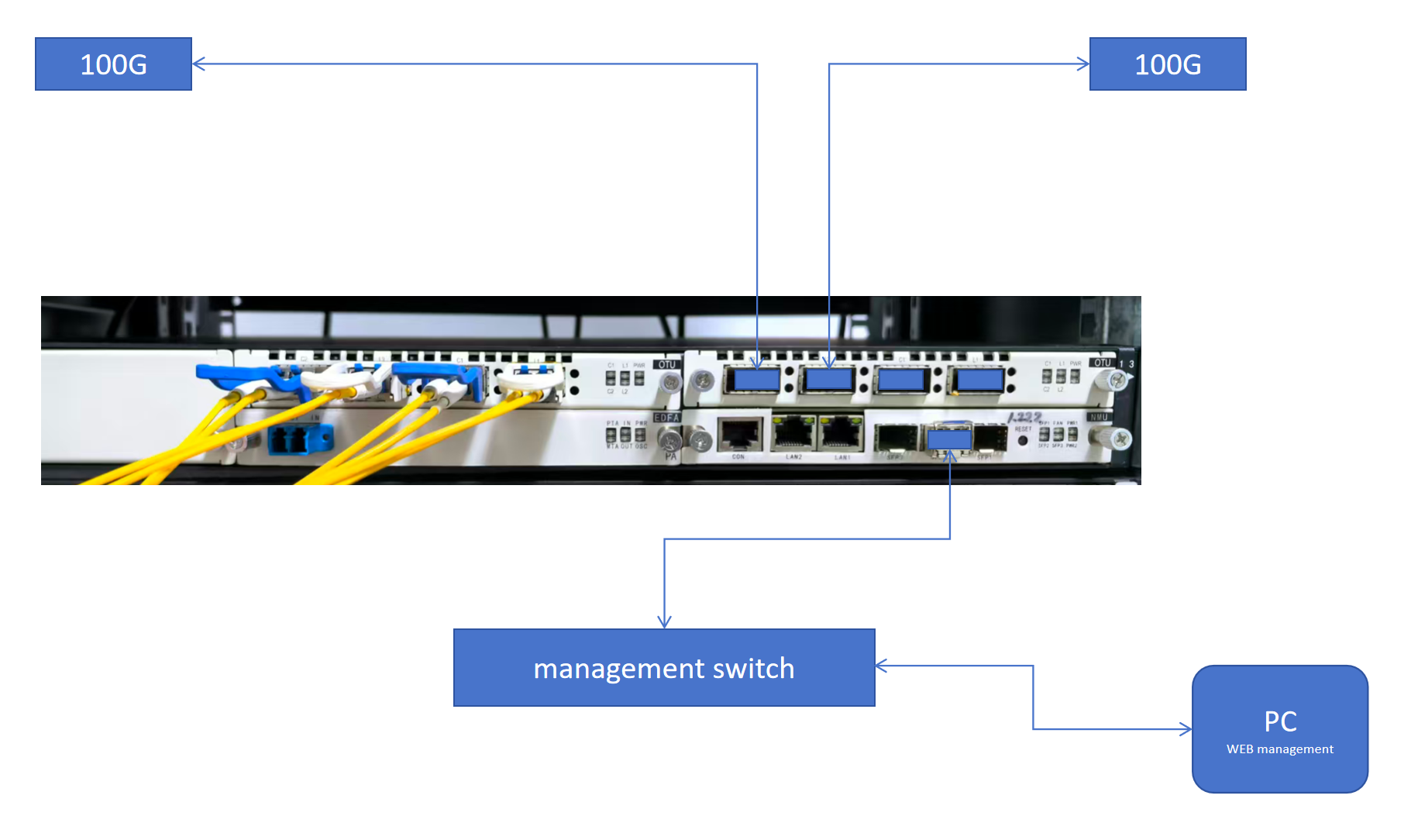

| Management | SNMP, CLI (Telnet/Console), Web, NetView GUI |
| Hot Swap | Supported |
| Power Optimization | Supported |
| Dimensions | 156 × 20 × 225 mm |
| Power Consumption | < 16 W |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 5% – 95% (Non-condensing) |
| Compliance | FCC, UL, CE, TUV, CSA |
