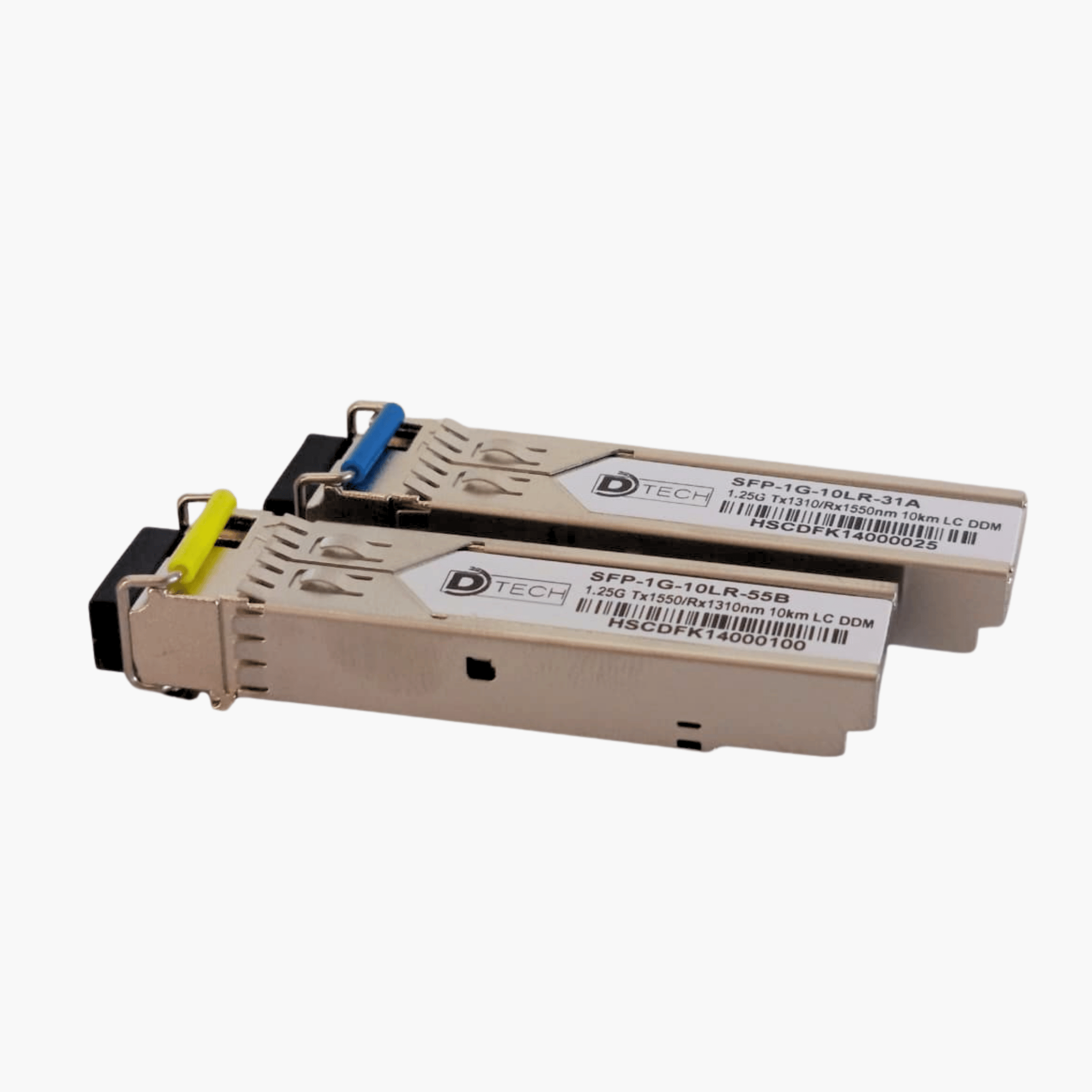

SFP 1.25G BIdI 1310Tx/1550Rx 10KM, LC

#1391

Share Login to Favorite
0.0
(0 reviews)
Pack Contains: Pair(2pcs)
Loading...

Loading variant details...

Variant Specifications

Product Specifications

Compatible: Cisco, Juniper, Huawei, Nokia
Warranty: 1 Year
Try our secure checkout with Connect IPS QR Pay.
OFC Passive Devices

-0.00% Rs1168.14

List Price: $1168.14
Rs1,168.14 now per Pair(2pcs)
Checking delivery availability...
Checking for Featured Offer...

General Description:

HTF’HTSF-B1G3155Lx Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver
consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor,the FP laser and the PIN photo-detector .The module data link up to 10km in 9/125umsingle mode fiber. Tx Fault is provided to indicate the degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal from the receiver or the link status with the partner. The system can also get the LOS (or link) or disable/fault information via I2C register access.

SFP stands for Small Form-factor Pluggable. It is a compact, hot-pluggable transceiver used for data communication applications such as gigabit Ethernet and fiber channel. SFP transceivers support various communication standards, including Ethernet, SONET/SDH, and Fibre Channel.

BiDi (bidirectional) indicates that the transceiver can transmit and receive data using only one fiber-optic cable. This is achieved through wavelength division multiplexing (WDM), where the transmitter operates at one specific wavelength (1310nm in this case) and the receiver operates at another specific wavelength (1550nm in this case).

Features:

  • Up to 1.25 GB/s data links
  • 1310nm FP laser transmitter and PIN photodetector
  • Up to 10km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • BIDI LC/UPC-type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS-compliant and lead-free
  • Support Digital Diagnostic Monitoring
  • interface: Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature
  • Commercial: 0 ~ +70 oC
  • Extended: -10 ~ +80oC
  • Industrial: -40 ~ +85 oC

Applications:

  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane
  • Applications Router/Server
  • Interface
  • Other Optical Links

Part Number Ordering Information:

Part Number Data Rate (Gb/s) Wavelength (nm) Maximum Transmission Distance Temperature (°C) (Operating Case)
HTSFB1G3155LC 1.25 1310Tx/1550nmR 10km SMF 0~70 (commercial)
HTSFB1G3155LE 1.25 1310Tx/1550nmR 10km SMF -10~80 (Extended)
HTSF-B1G3155LI 1.25 1310Tx/1550nmR 10km SMF -40~85 (Industrial)

Here some related SFP links below:

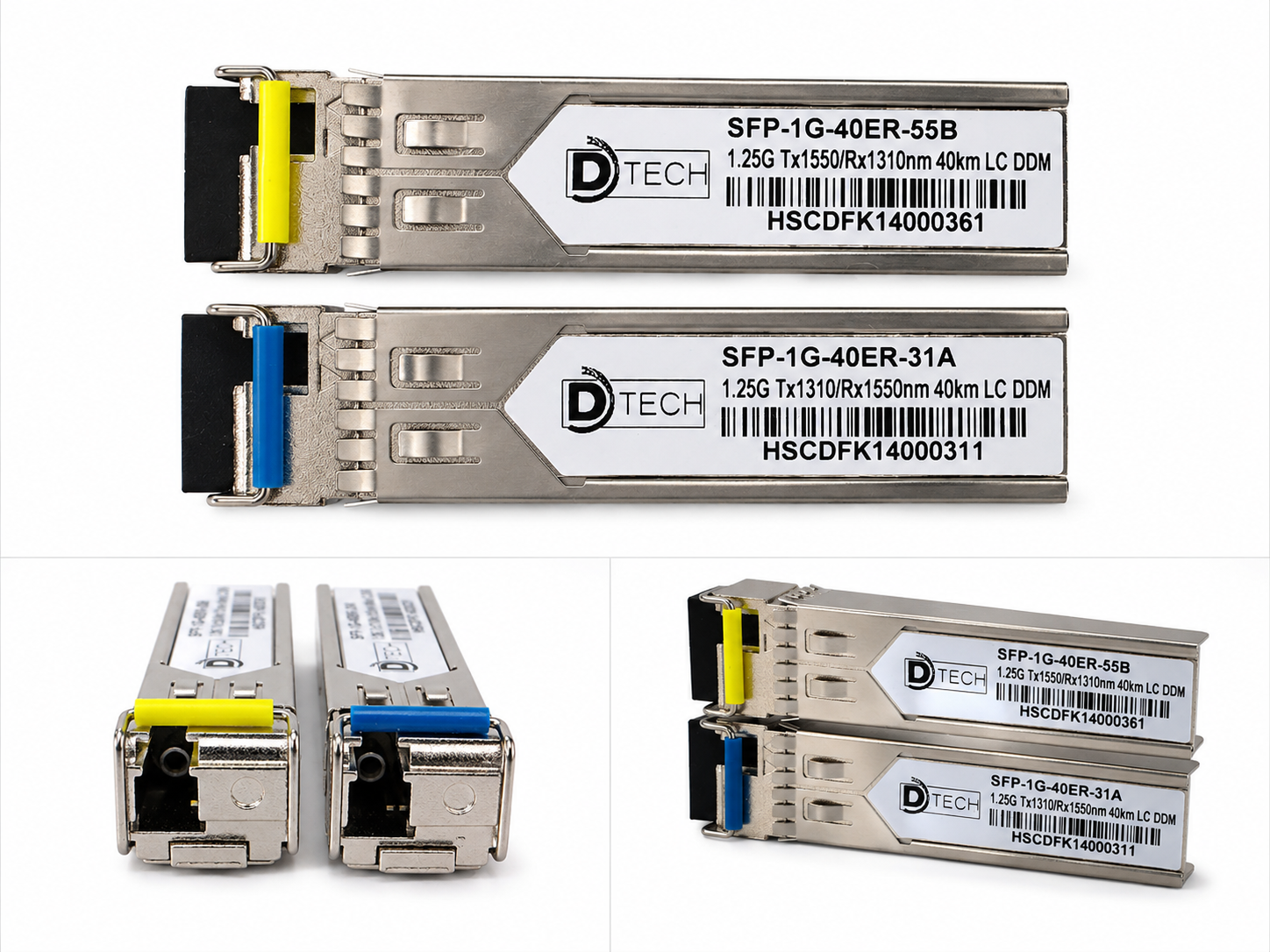

SFP 1.25G BIDI 1550Tx/1310Tx 40KM LC:

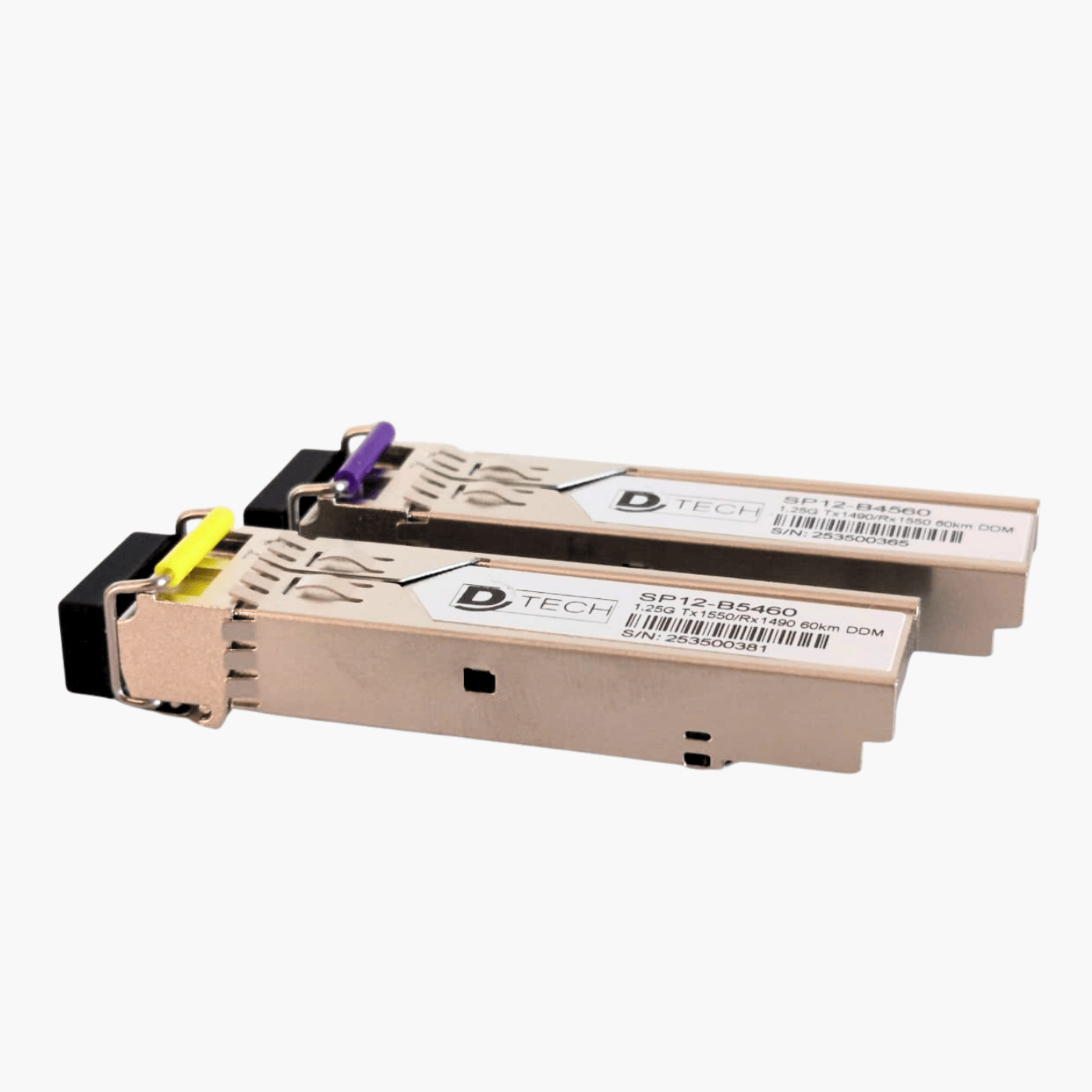

SFP 1.25G 1550Tx/1310Rx 60KM LC:

SFP 1.25G BIDI 1550Tx/1490Rx 80KM LC:

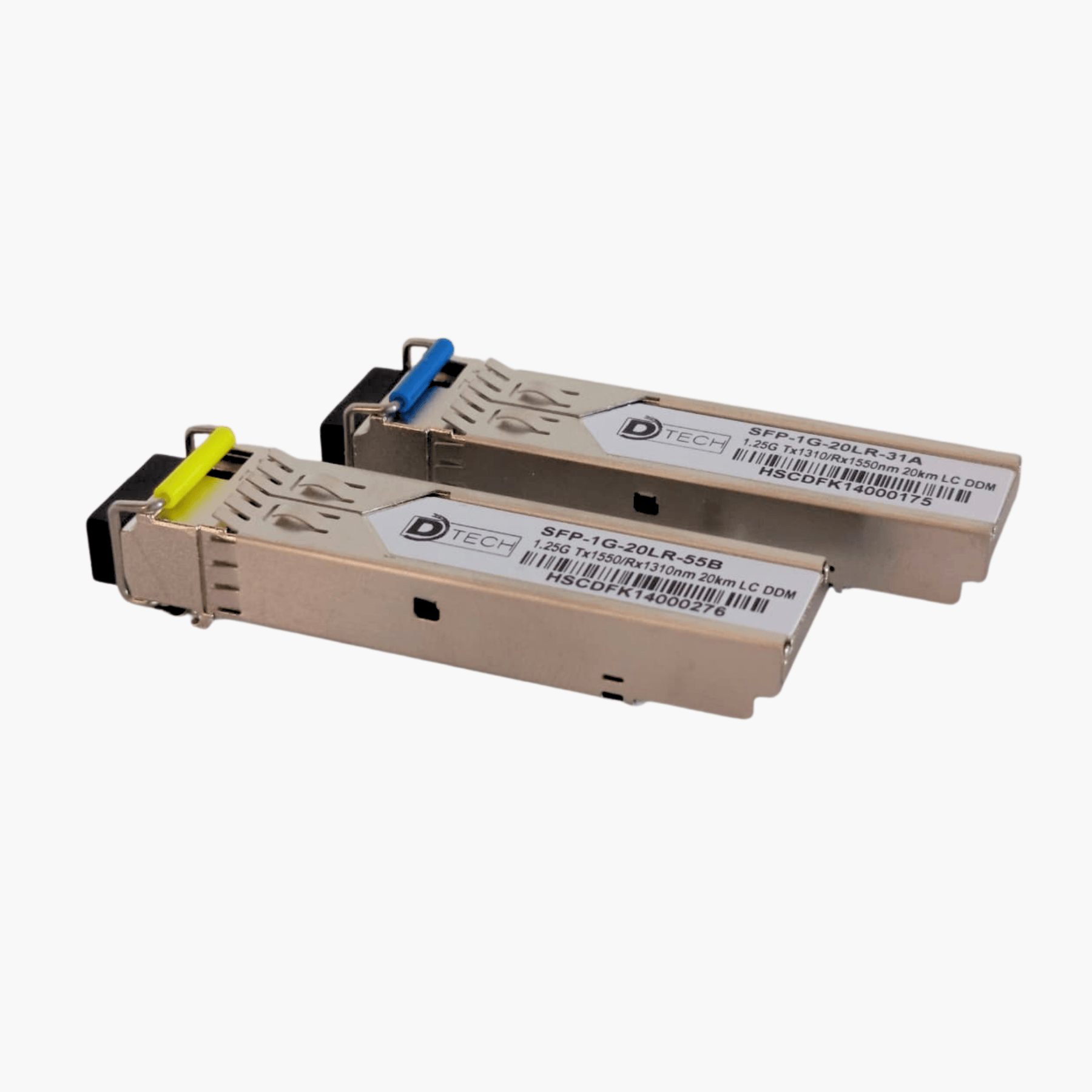

SFP 1.25G Bidi Tx1310nm/Rx1550nm 20KM LC:

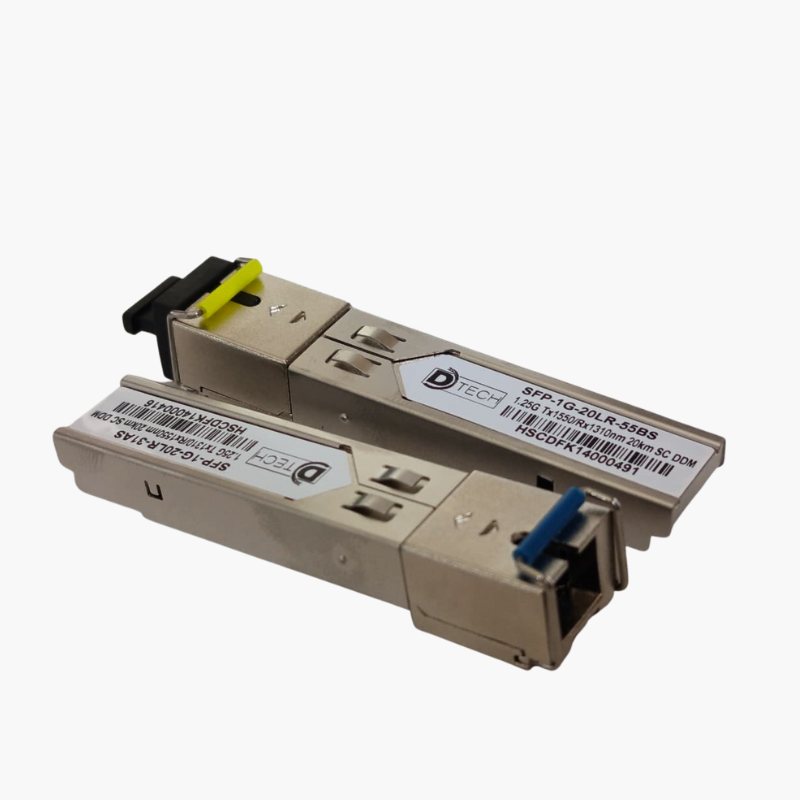

SFP 1.25G BIDI 20KM 1310TX/1550RX SC:
