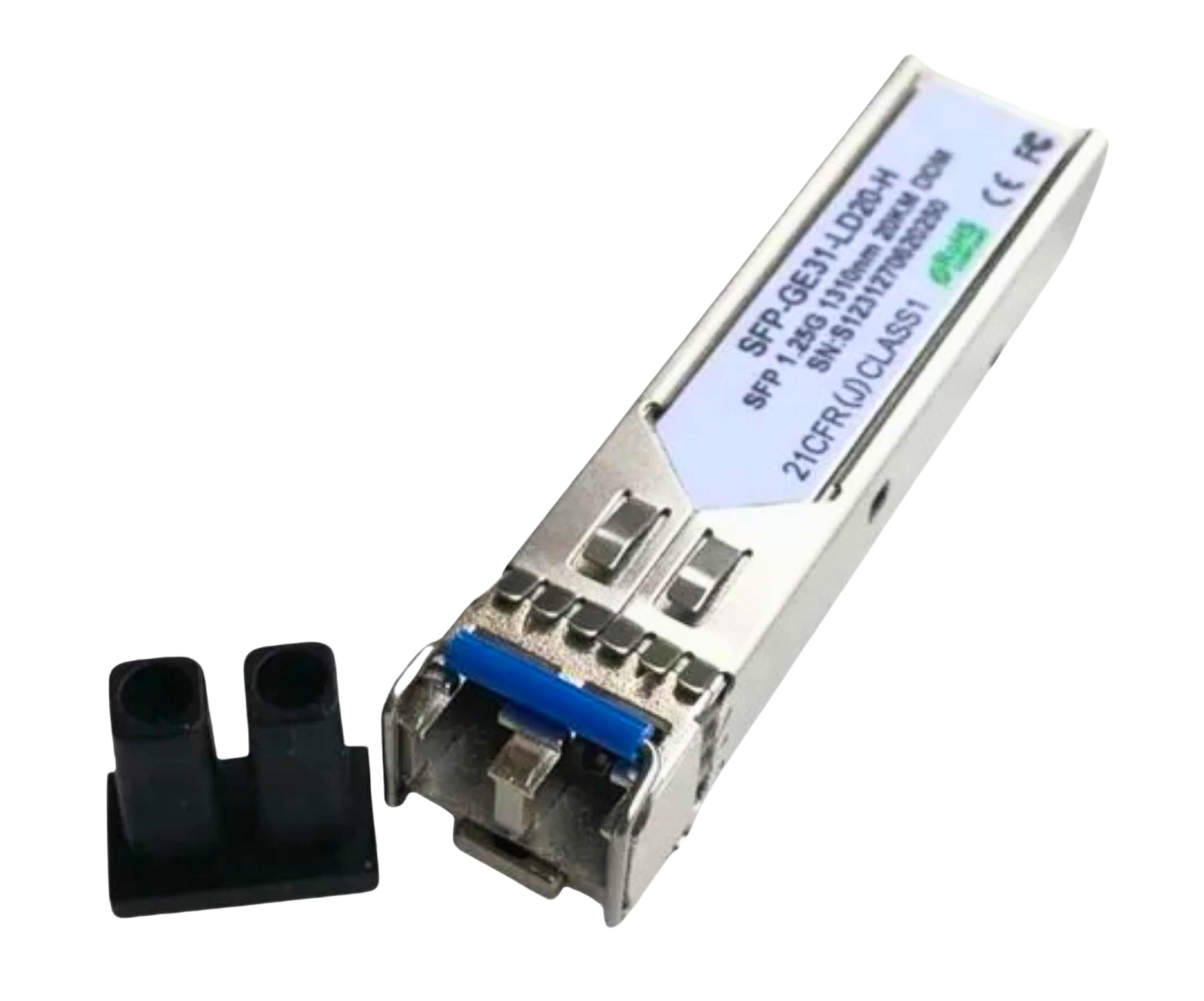

SFP 1.25G 1310nm 20km LC Duplex

Product Overview:

HW SFP-1.25G-LH40 compatible SFP transceiver supports up to 40km link lengths over LC duplex SMF fiber. Each SFP transceiver module is individually tested to be used on a series of HW switches, routers, servers, network interface cards (NICs), etc.
Featuring low power consumption, the hot swappable 1G SFP transceiver is ideal for Internet Service Provider (ISP) Gigabit Ethernet communication links, Enterprise LAN & SAN Networks, Data Center LAN & SAN networks, and other optical links.

Significations:

Parameter Value
HW Compatible SFP-1.25G-LH40
Vendor Name FS
Form Factor SFP
Max. Data Rate 1000Mbps
Wavelength 1310nm
Max. Cable Distance 40km
Connector Duplex LC
Optical Components DFB 1310nm
Media SMF
DOM Support Yes
TX Power -5 ~ 0dBm
Receiver Sensitivity < -24dBm
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols SFF-8472 MSA Compliant, IEEE 802.3ah-2004

Hear some related drop-cable links below:

SFP 1.25G 1550Tx/1310Rx 60KM LC:

SFP 1.25G BIDI 1550Tx/1490Rx 80KM LC:

SFP 1.25G Bidi Tx1310nm/Rx1550nm 20KM LC:

SFP 1.25G BIDI 20KM 1310TX/1550RX SC:

SFP 1.25G BIDI 20KM 1550TX/1310RX LC:

SFP 1.25G BIdI 1310Tx/1550Rx 10KM, LC:
