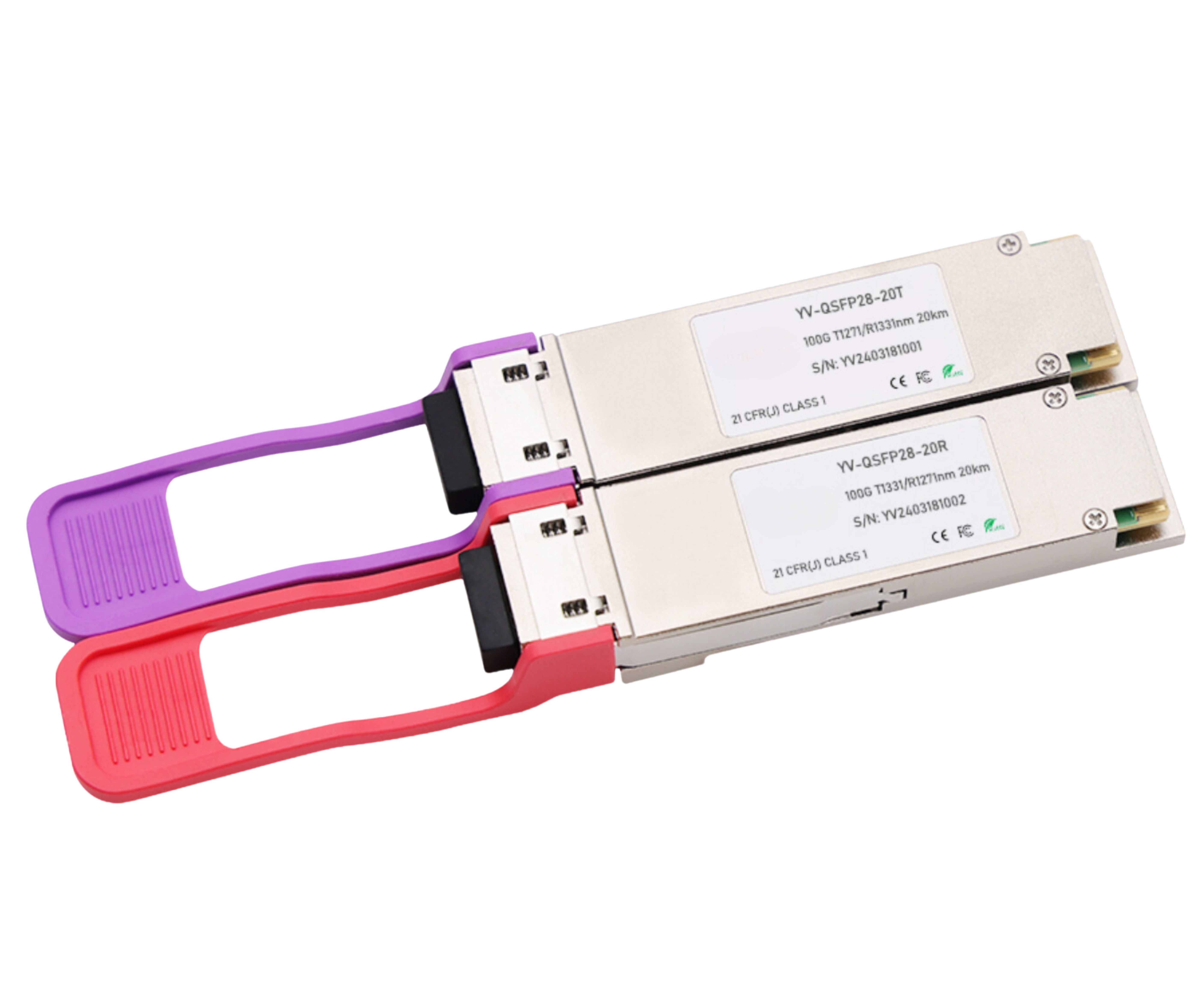

100G QSFP28 BiDi LR1 Optical Transceiver
Product Specification
l QSFP28 MSA package with simplex LC connector
l Compliant to 100G Lamda MSA 100G-LR1 Optical Specifications
l Interoperable with IEEE 802.3cu
l Lane signaling rate 53.125GBd with PAM4
l High speed I/O electrical interface
l Two Wire Serial Interface with Digital Diagnostic Monitoring
l Operating case temperature range 0°C to +70°C
l Support KP4 FEC inside the module and KP4 FEC shutdown
l Reaches up to 10/20km on SMF
l Maximum power consumption 4.5W
l 3.3V power supply voltage
l compliant to RoHS2.0
l Class 1 Laser
l 100 Gigabit Ethernet
l Data Center
Parameter | Symbol | Conditions | Min. | Max. | Unit |
Storage temperature（case） | Tstg | - | -40 | +85 | ℃ |
Relative Humidity | RH | Non-condensing | 5 | 85 | % |
Supply voltage | VCC | 0 | 3.6 | V | |
Low speed signalvoltage range | -0.3 | 4.0 | V | ||
Damage threshold | Pin | Average | 5.5 | dBm | |
ESD Sensitivity | － | ±500V for RF ±2kV for others | V |
l Recommended Operating Conditions
Parameter | Symbol | Min. | Typical | Max. | Unit |
Operating Case Temperature | Tcase | 0 | - | 70 | ºC |
Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V |
Relative Humidity | RH | 5 | - | 85 | % |
Power Dissipation | PD | - | - | 4.5 | W |
Data Rate (optical) | DRO | - | 103.125 | 106.25 | Gbps |
Data Rate (Electrical) | DRE | - | 26.5625 | - | Gbps |
Operating Link Distance | LD | - | - | 20 | Km |
Parameter | Symbol | Condition | Min. | Typ. | Max. | Unit | Note |
Transmitter | |||||||
Data Rate | 103.125 | 106.25 | Gbps | ||||
Data ratevariation | -100 | +100 | ppm | ||||
Lane center wavelength | 1264.5 | 1271 | 1277.5 | nm | |||
1324.5 | 1331 | 1377.5 | nm | ||||
Launch power | Peach | -1.4 | 4.5 | dBm | 1，2 | ||
Opticalmodulation amplitude | POMA | 0.7 | 4.7 | dBm | 3 | ||
Launch power in OMA minus TDECQ | For ER>=4.5dB For ER<4.5dB | -0.7 -0.6 | dBm | ||||
Transmitter and Dispersion eye closure | TDECQ | 3.4 | dBm | ||||
OpticalExtinction Ratio | ER | 3.5 | dB | ||||
Side mode Suppression ratio | SMSR | 30 | dB | ||||
Launch power ofOFF Transmitter | -30 | dBm | |||||
Relative Intensity Noise | RIN | -136 | dB/Hz | ||||
Optical return loss tolerance | 15.6 | dB | |||||
Transmitter reflectance | -26 | dB | 4 | ||||
Receiver | |||||||
Data Rate | 103.125 | 106.25 | Gbps | ||||
Data ratevariation | -100 | +100 | Ppm | ||||
Lane center wavelength | 1324.5 | 1331 | 1377.5 | nm | |||
1264.5 | 1271 | 1277.5 | nm | ||||
Damagethreshold | Rdam | 5.5 | dBm | 5 | |||
Average receiver power | Rpow | -7.7 | 4.5 | dBm | 6 | ||
Receiver power(OMA) | Rovl | 4.7 | dBm | ||||
Receiversensitivity (OMA), (max) | SENeach | -6.1 | dBm | @BER2.4e-4 | |||
StressedSensitivity | SRS | -4.1 | dBm | 8 | |||
Receiverreflectance | -26 | dB | |||||
LOSS assert | Optical poweralarm | -26 | -12 | dBm | |||
LOSS de-assert | -10 | dBm | |||||
Conditions of stressed receiver sensitivity test: | |||||||
Stressed eyeclosure forPAM4 (SECQ), | 3.4 | dB | 8 | ||||
SECQ-10*lgCeq | 3.4 | dB | 8 | ||||
Note1. As the total average launch power limit has to be met, not all of the lanes can operate at the maximum average launch power ,each lane.
Note2. Average launch power, each lane(min) is informative and not the principal indicator of signal strength. A transmitter with launch power below this value can not be compliant: however, a value above this does not ensure compliance.
Note3. Even if the TDECQ<1.4dB for an extinction ratio of >=4.5dB or TDECQ<1.3dB for an extinction ratio of <4.5dB, the OMA outer (min) must exceed this value.
Note4. Transmitter reflectance is defined looking into the transmitter.
Note5. The receiver shall be able to tolerate, without damage, continuous exposure to an optical input signal having this average power level.
Note6. Average receiver power, each lane(min) is informative and not the principal indicator of signal strength. A received power below this value cannot be compliant; however, a value above this does not ensure compliance.
Note7. Measured with conformance test signal at TP3 for the BER specified in 《100G-FR and 100G-LR1
Technical Specifications Rev 2.0》
Note8. These test conditions are for measuring stressed receiver sensitivity. They are not characteristics of the receiver.
Transmitter (Module Input) | |||||
Parameter | Symbol | Min. | Typical | Max. | Unit |
Input Differential Impedance | Rin | - | 100 | - | Ohm |
Differential termination mismatch(max) | D-mismatch | - | - | 10 | % |
Differential Data Input Amplitude | VIN,P-P | - | - | 900 | mVpp |
LPMode, Reset and ModSelL | VIL | -0.3 | - | 0.8 | V |
VIH | 2.0 | - | VCC+0.3 | V | |
Receiver (Module Output) | |||||
Output Differential Impedance | Rout | - | 100 | - | Ohm |
Differential termination mismatch(max) | D-mismatch | - | - | 10 | % |
Differential Data Output Amplitude | VOUT,P-P | - | - | 900 | mVpp |
ModPrsL and IntL | VOL | 0 | - | 0.4 | V |
VOH | VCC-0.5 | - | VCC+0.3 | V | |
l Pin layout
Figure1 Top Side and Bottom Side of QSFP28
l Pin Definitions
Pin no. | Logic | Symbol | Description | Note |
1 |
| GND | Ground | 1 |
2 | CML-I | Tx2n | Transmitter Inverted Data Input |
|
3 | CML-I | Tx2p | Transmitter Non-Inverted Data Input |
|
4 |
| GND | Ground | 1 |
5 | CML-I | Tx4n | Transmitter Inverted Data Input |
|
6 | CML-I | Tx4p | Transmitter Non-Inverted Data Input |
|
7 |
| GND | Ground | 1 |
8 | LVTLL-I | ModSelL | Module Select | 3 |
9 | LVTLL-I | ResetL | Module Reset | 4 |
10 |
| VccRx | +3.3V Power Supply Receiver | 2 |
11 | LVCMOS-I/O | SCL | 2-Wire Serial Interface Clock | 3 |
12 | LVCMOS-I/O | SDA | 2-Wire Serial Interface Data | 3 |
13 |
| GND | Ground | 1 |
14 | CML-O | Rx3p | Receiver Non-Inverted Data Output |
|
15 | CML-O | Rx3n | Receiver Inverted Data Output |
|
16 |
| GND | Ground | 1 |
17 | CML-O | Rx1p | Receiver Non-Inverted Data Output |
|
18 | CML-O | Rx1n | Receiver Inverted Data Output |
|
19 |
| GND | Ground | 1 |
20 |
| GND | Ground | 1 |
21 | CML-O | Rx2n | Receiver Inverted Data Output |
|
22 | CML-O | Rx2p | Receiver Non-Inverted Data Output |
|
23 |
| GND | Ground | 1 |
24 | CML-O | Rx4n | Receiver Inverted Data Output |
|
25 | CML-O | Rx4p | Receiver Non-Inverted Data Output |
|
26 |
| GND | Ground | 1 |
27 | LVTTL-O | ModPrsL | Module Present |
|
28 | LVTTL-O | IntL/RX_LOS | Interrupt/Rx LOS | 5 |
29 |
| VccTx | +3.3 V Power Supply transmitter | 2 |
30 |
| Vcc1 | +3.3 V Power Supply | 2 |
31 | LVTTL-I | LPMode/Tx_DIS | Low Power mode/Tx Disable | 5 |
32 |
| GND | Ground | 1 |
33 | CML-I | Tx3p | Transmitter Non-Inverted Data Input |
|
34 | CML-I | Tx3n | Transmitter Inverted Data Input |
|
35 |
| GND | Ground | 1 |
36 | CML-I | Tx1p | Transmitter Non-Inverted Data Input |
|
37 | CML-I | Tx1n | Transmitter Inverted Data Input |
|
38 |
| GND | Ground | 1 |
Note1.GND is the symbol for signal and supply (power) common for QSFP28 modules. All are common within the QSFP28 module and all module voltages are referenced to this potential.
unless otherwise noted. Connect these directly to the host board signal common ground plane.
Note2. Vcc Rx, Vcc1 and Vcc Tx are the receiver and transmitter power suppliers and shall be applied concurrently. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP28 transceiver module in any combination. The connector pins are each rated for a maximum current of 1000mA.
Note3.Timing for SCL, SDA and ModSelL shall comply with the common management interface document SFF-8636 and SFF-8679.
Note4.The QSFP28 module must support hardware reset operation.
Note5.Two Multi-Purpose PIN for supporting Tx_DIS and Rx_LOS function in the 100G QSFP28 module.The IIC interface must function normally when the QSFP28 module is in the LP mode.
l Host Board Power Supply Filtering
Figure2 Recommended hostboard power supply filtering
l Mechanical Specifications

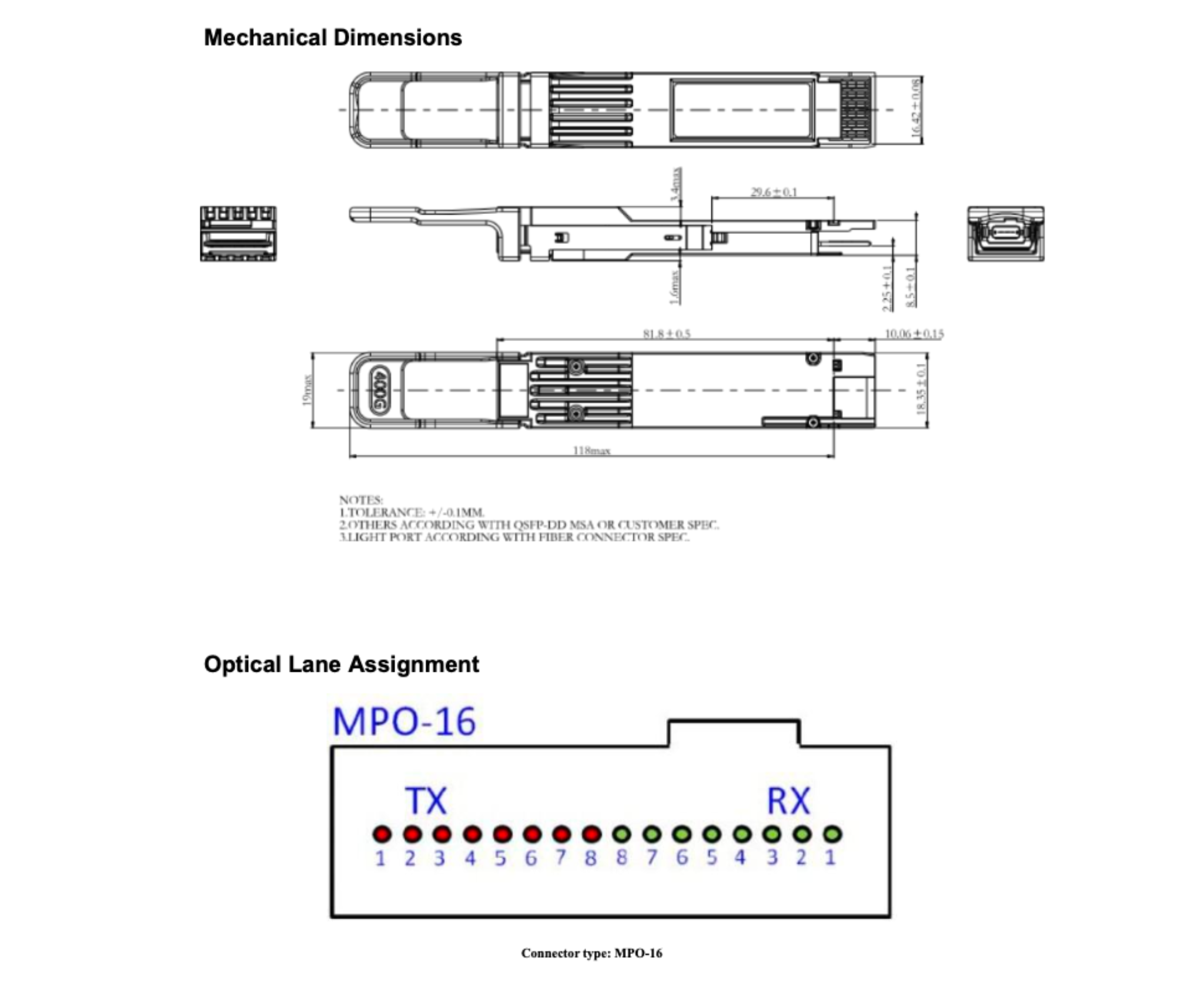

Figure3 100G LR1 BIDI QSFP28 Mechanical Dimensions
