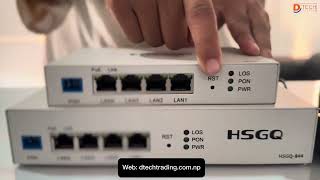

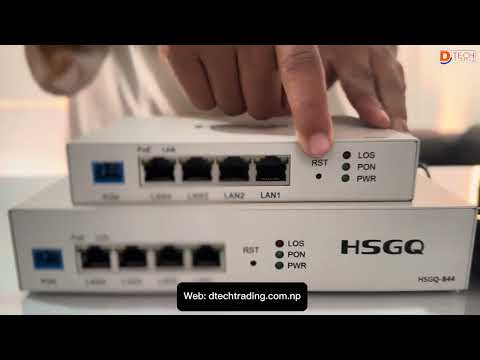

HSGQ-844 is one of the latest 84 series of industrial grade XPON passive optical network communication terminals launched by our company. The product provides 4GE and 1 optical fiber access port, built-in industrial power supply and metal shell; The stability and wide compatibility of the product are suitable for high-speed interconnection projects such as smart city and smart transportation, It can work normally under the harsh environment of high and low temperature difference, and well meet the application of high-speed data transmission.Industrial applications, the operating environment supports the temperature difference between -40°C~+75°C, and all ports support 6KV lightning protection function, which is safe regardless of indoor and outdoor deployment.
Module | Parameters |
---|---|
User Interface | 54V POE input power supply |
RJ45 lightning protection: CM 6KV, DM 2KV | |
1 XPON adaptive interface | |
Interface type: px20+ | |
Uplink and downlink speed: 1.25Gbps/2.5Gbps | |
PON Interface | Transmitted optical power: 0-4dBm |
Optical receive power: 7--27dBm | |
Sensitivity: 2-28dBm | |
Uplink and downlink wavelength: 1310nm/1490nm | |
Power supply line sequence 1/2(+), 3/6(-) | |
PoE/POE+ | POE input voltage: 54V DC |
Maximum power of a single port: 30W | |
Maximum power of the whole machine: 60W | |
Management Configuration | Support web interface management |
Support telnet command remote login management | |
Size | 200mm (L) x 135mm (W) x 40mm (H) |
Environmental | Working environment: -40°C~80°C, 10%~85% |
Storage environment: -40°C-80°C; 5%~95% | |
Power Supply | Built-in industrial power supply |
110-240AC |
• The point to multipoint network topology is adopted to effectively collect and aggregate the scattered Ethernet services of users, and the standard RJ45 Fast Ethernet interface is provided on the user side
• Dynamic bandwidth allocation mechanism enables all users to share bandwidth more reasonably, realize reliable quality of service (QoS), and ensure the service quality of different services in the same network
• Support IGMP multicast and make effective use of broadband
• Support multicast VLAN
• GPON is adopted to meet ITU-T G.984/G.988 standards
• Provide remote management through OLT and support local console management
Support the line loopback detection function of user side Ethernet interface
• Support IEEE802.1q VLAN protocol
• Support broadcast storm suppression
Support IEEE802.3x flow control (full duplex)
• Support IEEE802.1p, cos protocol
• Support WR and SP queue scheduling algorithms
• Support port speed limit
• Support -40°C~+75°C high and low temperature difference
All ports support 6KV lightning protection
• Support PoE network port power supply conforming to IEEE802.3ah standard
• Support IPv4/IPv6
Product Model | HSGQ-843 |
---|---|
Description | 4x10/100/100M RJ45 (PoE) |
1xE/GPON adaptive interface | |
Power supply: AC220V |
