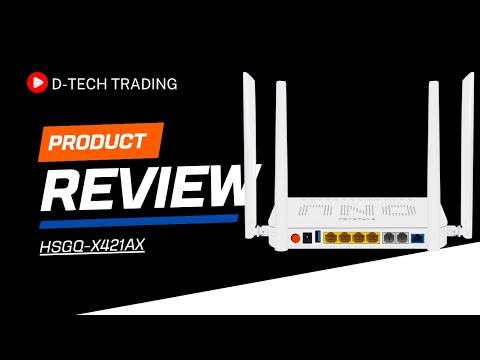

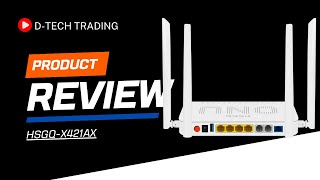

HSGQ-X421AX
.png)
HSGQ-X421AX Voice Service Function:
- With the heartbeat function, support the main soft exchange platform
- Support high/low speed mode transparent transmission, T38 two-fax
- Support high-speed Modem (56 kbps) dial access; support RFC2833 and redundant RFC2833, ringing, MD5 certification, call forwarding, call waiting, the hotline, alarm clock, abbreviated dialing and other value-added services;
- Support SIP (compatible with IMS), H.248, MGCP-3 VoIP protocol, and the soft switch platform, the mainstream can be good intercommunication
- Support 2 POTS interface and the three-party call; three party support local mixing
- Support POTS port GR909 line test function
- Support dynamic PPPoE, DHCP and static IP.
- Support ITU-T G.711, G.723.1, G.729 and other three kinds of compression algorithm; echo cancellation conforming to ITU-T G.168-2002; and an echo canceler for the longest 128ms
- 7x24-hour call loss is less than or equal to 0.01%
WiFi6 AX3000:
- 574Mbps at 2.4GHz+2402Mbps at 5GHz
- Full IEEE802.11b/g/ac/ax legacy compatibility with enhanced performance
- Support multi-SSID (Maximum 4 SSID)
- Support automatic channel selection
- Support hiding SSID
- Support wireless security of 64/128 bit WEP, 802.1x, WPA and WPA2
Key Features of HSGQ-X421AX:
- Support device-based rate limitation and bandwidth control
- In compliance with IEEE802.3ah 802.3ah and the ITU-T G.984.x standard
- WiFi series meet 802.11 a/b/g/n/ac/ax technical standards
- Up to 20KM transmission distance
- Support data encryption, group broadcasting, port Vlan separation, etc.
- Support Dynamic Bandwidth Allocation (DBA)
- Support ONU Auto-discovery, link detection, and remote upgrade of software
- Support port VLAN configuration
- Support power-off alarm function; easy for link problem detection
- Support QOS configuration
- Support port binding
- Support port forwarding
- Support ACL to configure data packet filter flexibly
- Specialized design for system break-in prevention to maintain stable system
- Support software online upgrading
- Support TR069 for ACS (Auto Config Server)
- Support PPPoE/DHCP Server/IPTV/POTS/NAT
- Support IPv4/IPv6
Technical Specifications for HSGQ-X421AX:
| Category | Specification |
|---|---|
| Module | |
| 4-10/100/1000M RJ45 port | 4 ports supporting 10/100/1000 Mbps RJ45 connections |
| 2 POTS | 2 POTS ports (RJ11 connectors) |
| User Interface | |
| Ethernet | 4-10/100/1000M auto-negotiation, Full/half duplex mode, RJ45 connector, Auto MDI/MDI-X |
| 1 x USB 3.0 port | |
| 1 EPON & GPON adaptive interface | |
| WIFI6 AX3000 support | |
| Optical Interface | EPON & GPON modes are adaptive |
| Interface Type | SC-UPC/SC-APC |
| Security | ONU authentication mechanism |
| Network Coverage | 20 KM |
| GPON | Upstream 1.25 Gbps and Downstream 2.5 Gbps |
| Optical Receive Power | -7 dBm to -28 dBm |
| Transmitting Optical Power | 0.5 dBm to 5 dBm |
| EPON | Upstream 1.25 Gbps / Downstream 1.25 Gbps |
| Optical Receive Power | -7 dBm to -27 dBm |
| Transmitting Optical Power | 0 dBm to 4 dBm |
| Physical Dimensions | |
| Size | 186 mm (L) x 136 mm (W) x 33.5 mm (H) |
| Environmental | |
| Operating Temperature | 0°C to 60°C |
| Operating Humidity | 10% to 85% (non-condensing) |
| Storage Temperature | -40 °C to 80 °C |
| Storage Humidity | 5% to 95% (non-condensing) |
| Power Supply | |
| Input Voltage | 12V / 1.5A DC |
| Power Interface Size | 2.1 mm / 5.5 mm |
| Power Consumption | < 12W |
| Management | WEB/TELNET/TR069/OMCI/OAM |
| Other Interfaces | |
| 2 RJ11 | Max distance: 1 km |
| CAN Port | Balanced Ring, 55V RMS |
Product Interfaces and Indicators Definitions:
| Interface/Indicator | Status | Definition |
|---|---|---|
| POWER | On | The ONU is powered on |
| Off | The ONU is powered off | |
| POUNDS (ONU Register) | On | Successfully registered to OLT |
| Blinking | I am in the process of registering to OLT | |
| Off | I failed to register to OLT | |
| THE (Optical Signals) | On | Optical link sensitivity is lower than receiver sensitivity |
| Off | Optical is normal | |
| AND (LAN Port Status) | On | Ethernet connection are normal |
| Blinking | Data is being transmitted | |
| Off | Ethernet connection is not set up | |
| 2.4G (2.4G WiFi Status) | On | WiFi function is open |
| Blinking | Data is being transmitted | |
| Off | WiFi function is closed | |
| 5G (5G WiFi Status) | On | WiFi function is open |
| Blinking | Data is being transmitted | |
| Off | WiFi function is closed | |
| NET (Internet Status) | On | ONU can access internet |
| Off | ONU cannot access internet | |
| WPS (WPS Status) | On | Terminal has connected |
| Blinking | Terminal is connecting | |
| Off | terminal is not connected | |
| VOIP1 (VOIP Status) | On | Voice account registered |
| Off | Voice account not registered | |
| VOIP2 (VOIP Status) | On | Voice account registered |
| Off | Voice account not registered | |
| USB (USB Status) | On | USB is linked |
| Off | USB is not linked |
