Technical Specification

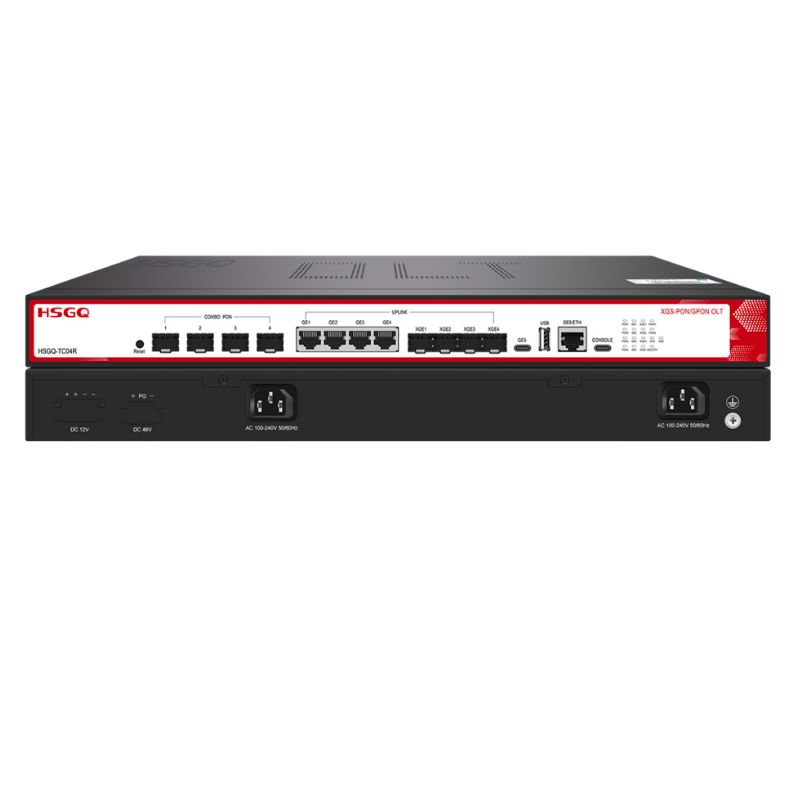

A. Interface
Specification
Details
PON Ports
4 × XGSPON/XGPON/GPON Combo.
Uplink Ports (RJ45)
4 × GE
Uplink Ports (Optical)
4 × 10G SFP+
USB Port
1 × USB 2.0
Management Ports
1 × GE/ETH, 1 × Type-C Console
LED Indicators
SYS, PWR, ALM, PON, LINK
B. PON Performance
Mode
Upstream
Downstream
Wavelength
XGSPON
9.953 Gbps
1270 / 1577 nm
XGPON
2.488 Gbps
GPON
1.244 Gbps
1310 / 1490 nm
Max Split Ratio
1:128 per port
—
Total ONU Support
Up to 512 ONUs
PON Class
XGS: N1/N2
GPON: C+, C++
C. Hardware Specification
Specification.
Flash
32MB
DDR Memory
512MB
Dimensions
442 × 280 × 44 mm (1U)
Weight
Approx. 4.2 kg
Power Input
100–240V AC, 50/60Hz / Optional DC –48V.
D. Environmental
Parameter
Range
Operating Temperature.
–10°C to +55°C
Storage Temperature
–40°C to +80°C
Humidity
10%–95% (non-condensing).
E. Layer-2 & Layer-3 Features
Feature Type
Supported Functions
L2 Switching
STP, RSTP, MSTP, LACP, Port Isolation, DHCP Snooping/Relay
L3 Routing
Static Route, OSPF, RIP, VRRP, PIM
Multicast
IGMP Snooping/Proxy
Security
ACL, Anti-attack protection, ONU whitelist
F. Management
Item
Supported Methods.
CLI, Web, SNMP, Cloud EMS
Logs & Monitoring.
Alarms, Logs, Ping, Device Status.
VLAN
VLAN, QinQ, Translation
Firmware
Online Upgrade Supported
G. Packing List
Quantity
OLT Unit
1 pc
Power Cable
Installation Accessories.
1 set
Warranty Card
