HSGQ-T02 XG(S)-PON OLT
The HSGQ-T02 XG(S)-PON OLT is a compact next-generation Optical Line Terminal designed for small and medium FTTH, enterprise, apartment, hotel, campus, and ISP fiber access networks. It supports both XGS-PON and XG-PON technologies, providing high-speed downstream and upstream transmission for modern broadband services.
Equipped with 2 × XGS-PON/XG-PON ports, 2 × 10G SFP+ uplinks, 4 × Gigabit RJ45 ports, and a GE Type-C interface, the HSGQ-T02 offers flexible connectivity for compact fiber network deployments.
The OLT supports Layer 2 and Layer 3 network functions, Dynamic Bandwidth Allocation, automatic ONU registration, cloud management, VLAN, multicast, routing, monitoring, and centralized network administration.
Quick Specifications
Key Features
- 2 × XGS-PON / XG-PON user ports
- 2 × 10G SFP+ uplink ports
- 4 × Gigabit RJ45 interfaces
- 1 × GE Type-C interface
- 1 × USB 2.0 port
- PON SFP+ slot with 20-pin interface
- XG(S)-PON Class N1 / N2 support
- Maximum split ratio of 1:128
- Automatic ONU registration
- ONU white list and black list
- Dynamic Bandwidth Allocation
- CLI, Web, SNMP/NMS and cloud management
- Layer 2 and Layer 3 network features
- Firmware, alarm, log and user management
Applications
Small FTTH Networks
Suitable for high-speed fiber broadband deployment in small residential areas and housing projects.
Internet Service Providers
Ideal for compact ISP POP sites requiring XGS-PON and XG-PON service delivery.
Enterprise Networks
Provides centralized fiber access for offices, campuses, hotels, apartments, and business buildings.
Network Expansion
Supports expansion from conventional broadband infrastructure to higher-capacity 10G PON services.
Technical Specifications
| Category | Specification |
|---|---|
| Model | HSGQ-T02 |
| Product Type | XG(S)-PON OLT |
| User Interface |
2 × XGS-PON / XG-PON Ports 4 × GE RJ45 1 × GE Type-C 2 × 10G SFP+ 1 × USB 2.0 |
| PON Port | PON SFP+ Slot (20-pin) |
| PON Type | XG(S)-PON Class N1 / N2 |
| Split Ratio | 1:128 Maximum |
| XGS-PON Bandwidth |
Upstream: 9.953 Gbps at 1270 nm Downstream: 9.953 Gbps at 1577 nm |
| XG-PON Bandwidth |
Upstream: 2.488 Gbps at 1270 nm Downstream: 9.953 Gbps at 1577 nm |
| Flash Memory | 32 MB |
| DDR Memory | 512 MB |
| Dimensions | 285 × 192 × 44 mm |
| Management Port | Type-C Console |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 10%–95% (Non-condensing) |
| Power Supply | AC 100–240V, 50–60Hz / DC 12V |
| Power Consumption | <50W |
Network and Management Features
| Feature | Description |
|---|---|
| PON Features | Automatic registration, ONU white/black list, DBA and P2P |
| Cloud Management | Device list, project management, version release, license management and alarm list |
| Configuration | CLI, Web, SNMP/NMS and Cloud |
| Monitoring | Firmware upgrade, Ping, Debug, User, Log and Alarm management |
| VLAN Features | VLAN transparent, translation and QinQ |
| Multicast | IGMP Snooping / Proxy |
| Layer 2 Features | Port isolation, MSTP, RSTP, ERPS, LLDP and LACP |
| Layer 3 Features | DHCP, Static Route, OSPF, RIP, VRRP and PIM |
Installation Recommendation
The HSGQ-T02 is recommended for small and medium XGS-PON or XG-PON deployments requiring compact size, high bandwidth, and centralized management. Before installation, calculate the optical power budget, required ONU quantity, splitter ratio, uplink capacity, and future subscriber growth. Configure DBA, VLAN, multicast, routing, security, and ONU registration policies according to the network design.
Ask a question
Questions & answers
0 question(s)Write a review
Sign in to reviewCustomer reviews
Product Videos
Watch demos, overviews and installation guides related to this product.
Related Products
.jpg)
DCI (OTNS8600-DCI8 2U)

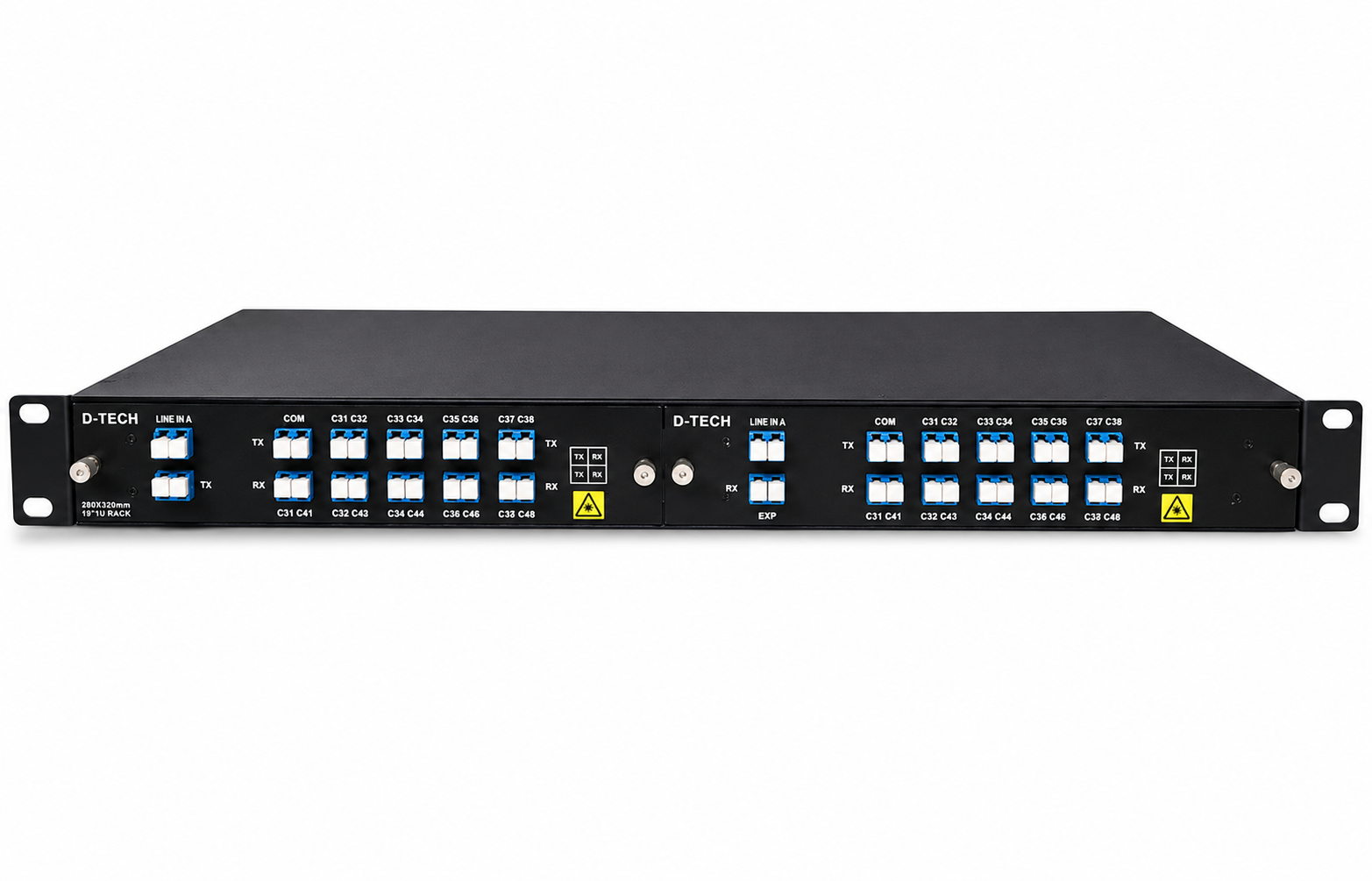

DWDM MUX AND DEMUX (Red21-28) (Blue 51-58) 1U RACK 8CH WITH 2 LGX BOX BIDI SINGLE FIBER
