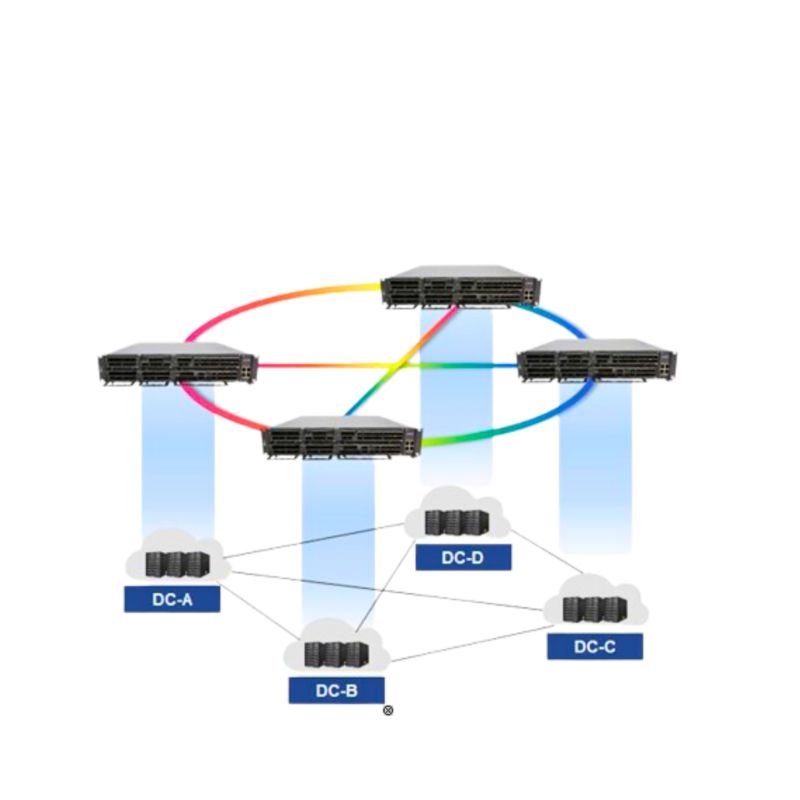

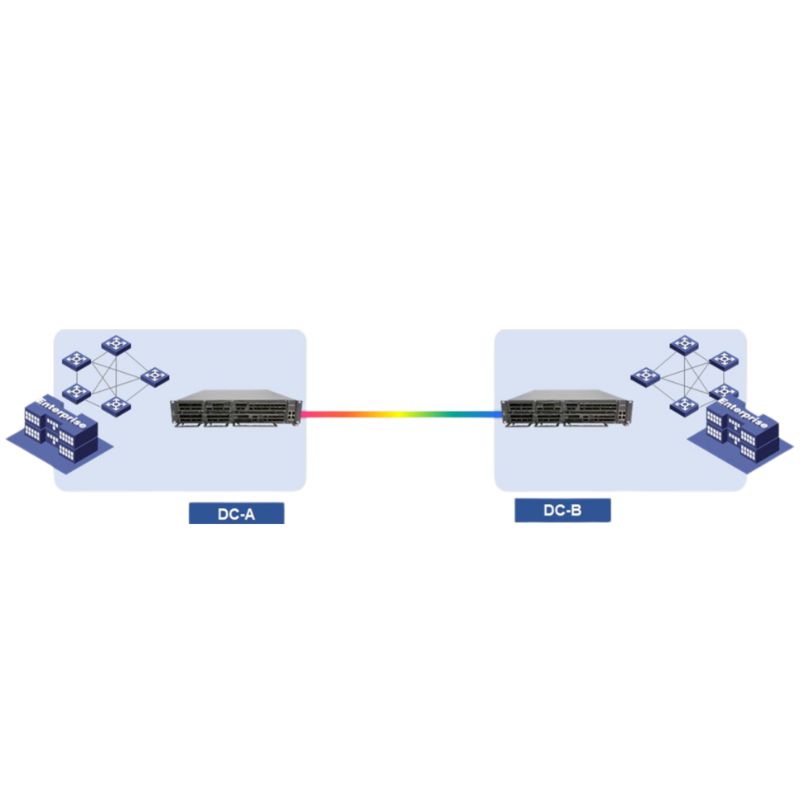

| Chassis |
|
| Dimensions (H x W x D) |
2U: 88 mm (H) × 446 mm (W) × 450 mm (D) |
| Maximum capacity |
3.2 Tbit/s |
| Number of service card slots |
8 |
| Applicable cabinets |
19" cabinet 600mm or deeper |
| Line-side port |
|
| Rate |
|
| |
- 100G (PDM_QPSK) programmable |
| |
- 200G (PDM_QPSK) programmable |
| |
- 200G (PDM_8QAM) programmable |
| |
- 200G (PDM_16QAM) programmable |
| |
- 400G (PDM_16QAM) programmable |
| Optical module |
Pluggable QSFP28 / QSFP-DD or CFP2, wavelength adjustable |
| Client-side port |
|
| Service type |
10GE, 100GE, 100GE FlexE(Unware), 400GE, OTU2, OTU4, STM-64 and 10GE WAN |
| Optical module |
Pluggable SFP+, QSFP28 |
| Max. number of wavelengths |
Fixed grid: 96 wavelengths @50 GHz |
| Channel spacing |
Fixed grid: 50 GHz / 75 GHz / 100 GHz / 150 GHz |
| Central frequency range |
191.35 GHz ~ 196.1 GHz |
| Central wavelength range |
1528.77 nm ~ 1566.73 nm |
| Protection function |
- Optical line protection (OLP) |
| |
- Optical multiplexed segment protection (OMSP) |
| |
- Optical channel protection (OCHP) |
| |
- SNCP protection (only P422 muxponder supported) |
| Network management |
|
| |
- Supports main controller 1+1 backup (optional) |
| |
- Support CLI, Web LCT, NETCONF, GUI management platform based on B/S architecture |
| |
- Support DCN communication based on OSC |
| Power supply |
|
| Back-up |
Standard CRPS power supply 1+1 backup |
| AC |
- Rated voltage range: 100 V AC~130 V AC (50/60Hz) or 200 V AC~240 V AC (50/60Hz) |
| |
- Max. voltage range: 90 V AC~264 V AC (45Hz~65Hz) |
| HVDC |
- Rated voltage range: 240 V HVDC |
| |
- Max. voltage range: 192 V HVDC~288 V HVDC |
| DC |
- Rated voltage range: -48 V DC/-60 V DC |
| |
- Max. voltage range: -40 V DC~-72 V DC |
| Heat dissipation |
|
| |
- Front inlet air and rear outlet air |
| |
- 2+1 Fan unit backup |
| Typical power consumption |
<800W (Electric layer full match) |
| Environment |
|
| Operating temperature |
Short-term: -5℃~+45℃; Long-term: 0℃~40℃ |
| Storage temperature |
-40℃~+70℃ |
| Humidity |
5%~95% (no condensation) |
