Specifications
|
|
Key Features
|
- Supports bandwidth control, IEEE 802.3ah & ITU-T G.984 standards
|
|
|
- Wi-Fi 802.11a/b/g/n/ac, 20KM transmission range
|
|
|
- Data encryption, VLAN, DBA, remote software upgrade, QoS, ACL, NAT
|
|
|
- PPPoE/DHCP Server, power-off alarm, system breakdown prevention
|
|
Wi-Fi Features
|
- Dual-band 2.4GHz/5GHz (802.11b/g/n/ac)
|
|
|
- Up to 166Mbps PHY rate, 4x SSID support, WPA2/WEP/802.1x security
|
|
|
- Hide SSID, auto-channel selection
|
|

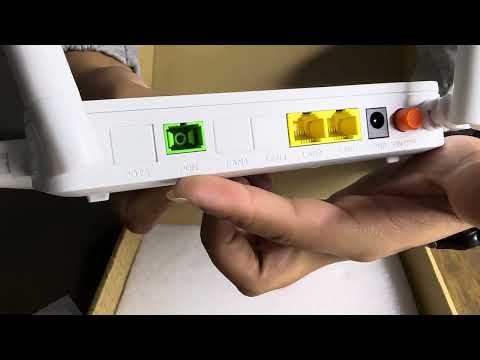

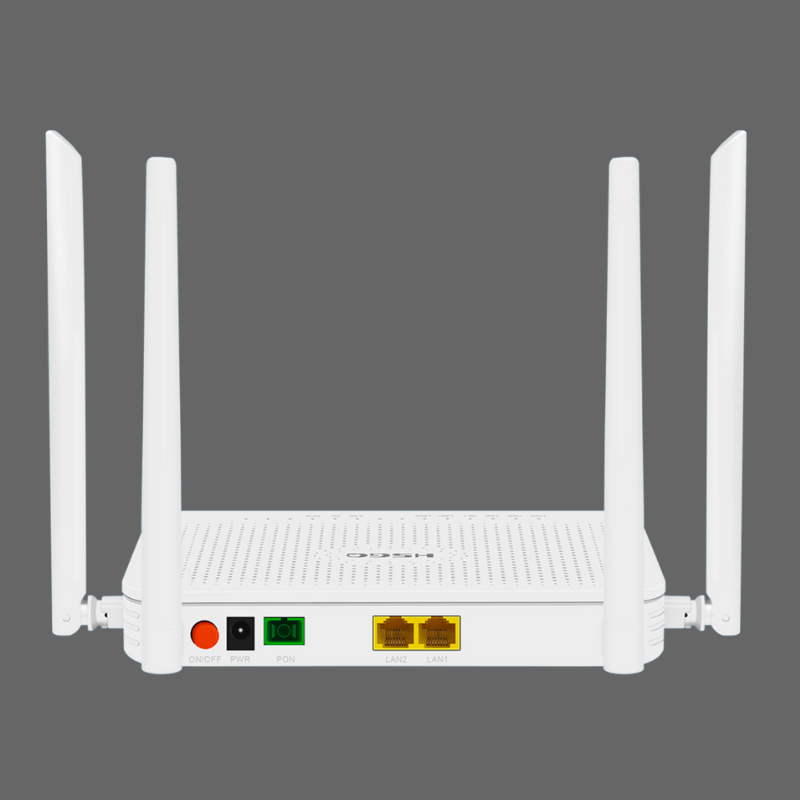

Interfaces
|
- 2x 10/100/1000M Ethernet (RJ45)
|
|
|
- 1x EPON/GPON adaptive port (SC-UPC/APC)
|
|
|
- 1x RJ11 (POTS) for voice
|
|
Indicators
|
POWER, PON, LOS, LAN, 2.4G/5G Wi-Fi, WPS, NET
|
|
Technical Specs
|
|
|
- PON
|
- GPON: 2.5Gbps down / 1.25Gbps up; EPON: 1.25Gbps symmetric
|
|
|
- Sensitivity: -7dBm to -28dBm (GPON), -7dBm to -27dBm (EPON)
|
|
- Ethernet
|
Auto-MDI/MDI-X, 100m range, full/half duplex
|
|
- Power
|
12V/1.5A DC, <9W consumption
|
|
- Environment
|
0°C–60°C operating, -40°C–80°C storage, 10%–85% humidity
|
|
- Size
|
162mm (L) x 112mm (W) x 30mm (H)
|
|
Management
|
WEB, TELNET, TR069, OMCI, OAM
|
|
Ordering Info
|

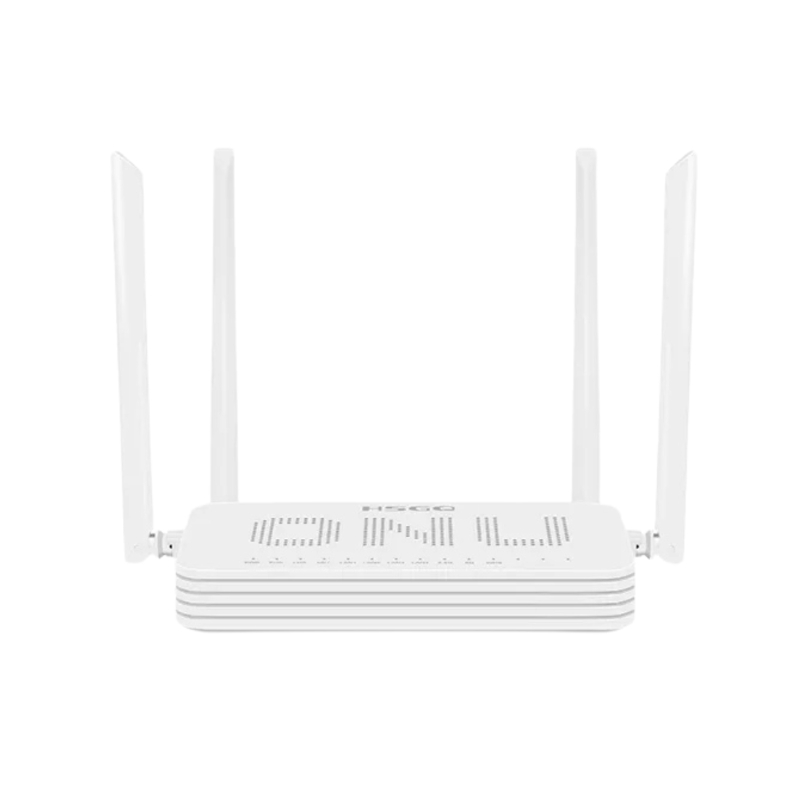

HSGQ-X200DW: 2xGbE, 1x EPON/GPON, 2.4G/5G Wi-Fi
|
