Overview:

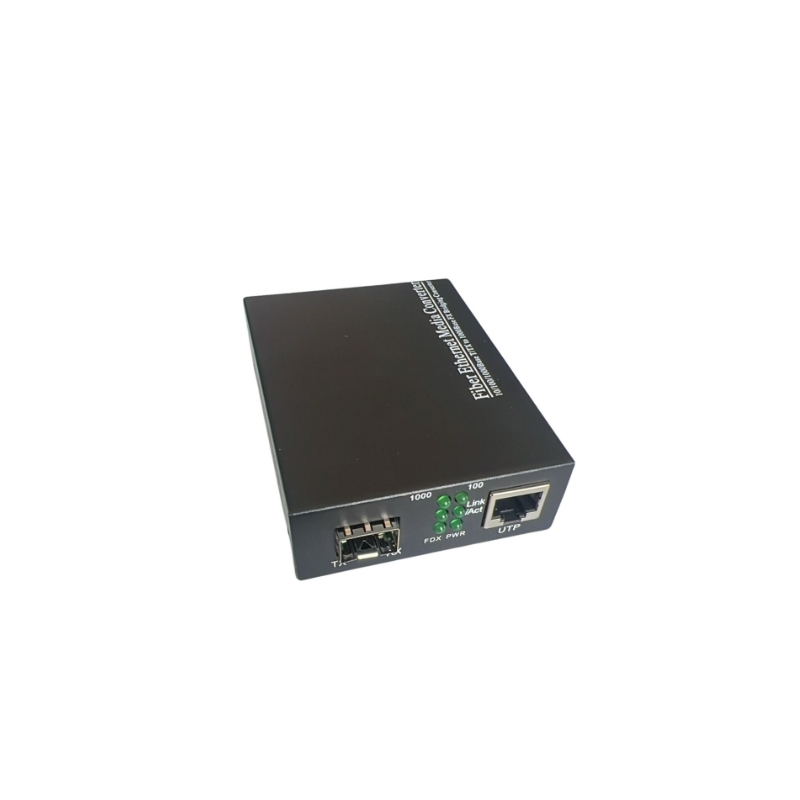

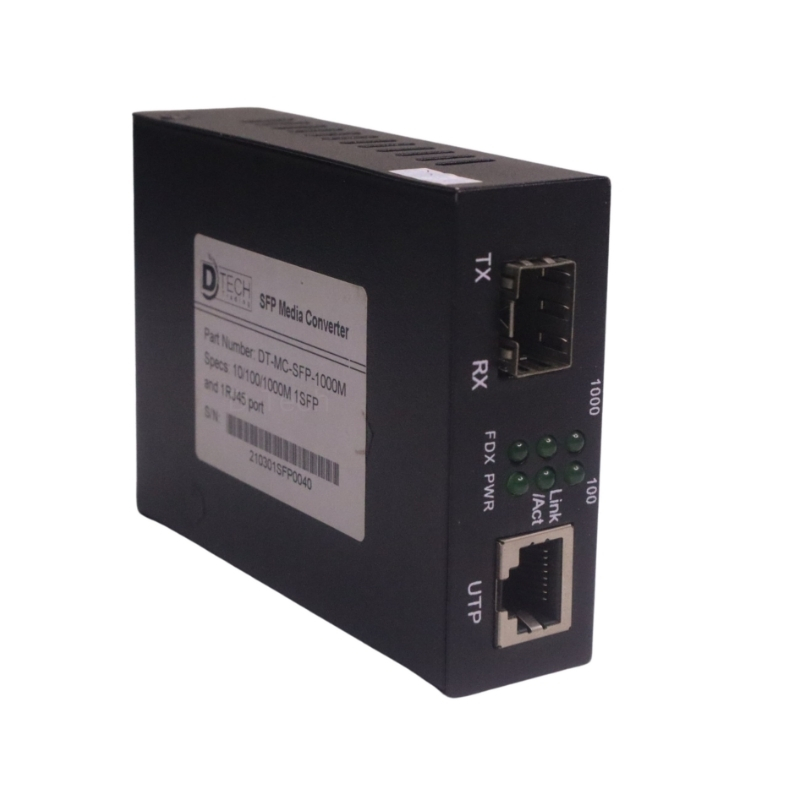

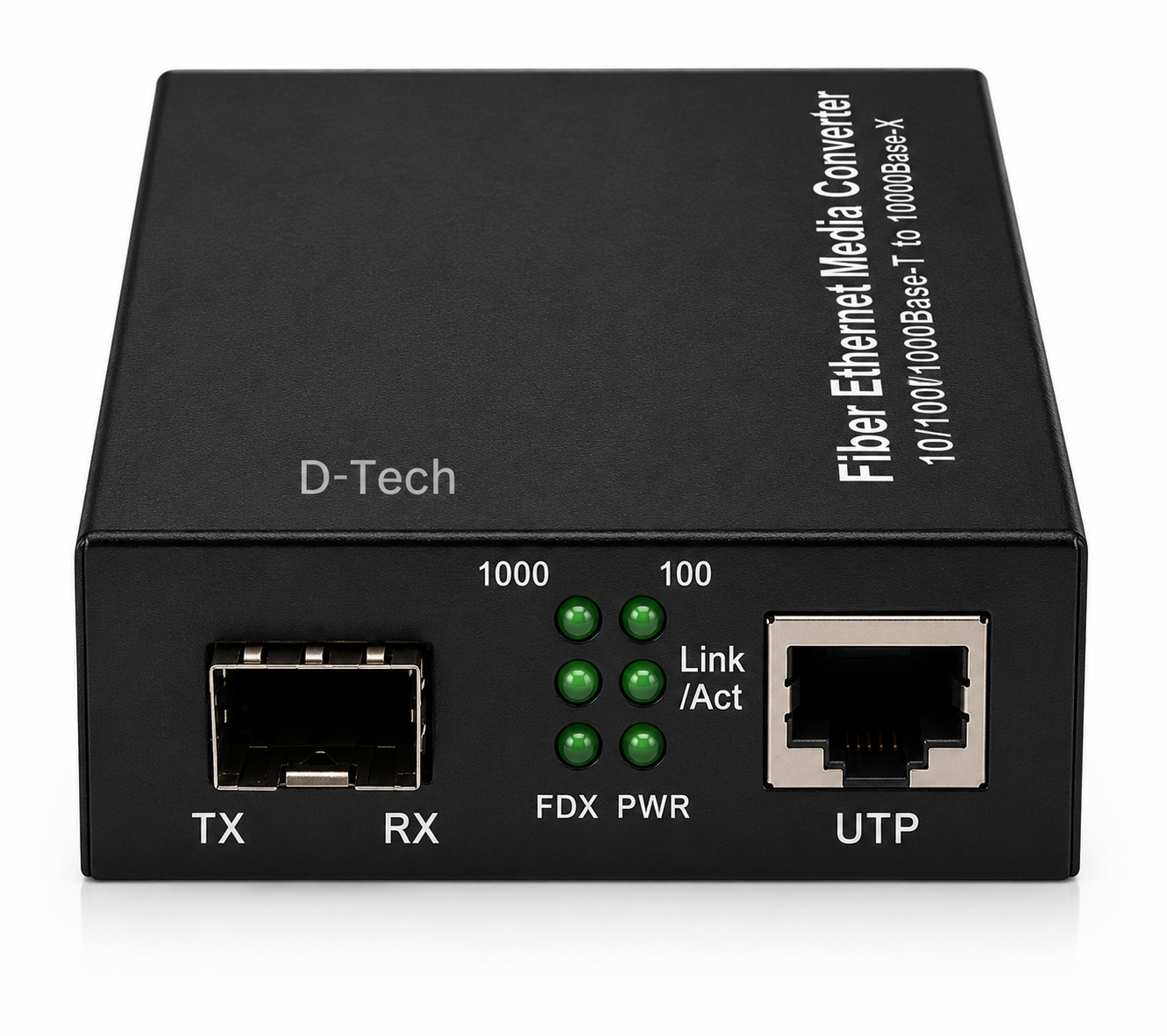

10G media converter is an Ethernet converter between Ethernet electrical signal and optical signal. It converts between short distance twisted pair signal of 10GBase-TX and 10GBase-FX optical signal. Customer can choose different SFP modules to achieve the smooth conversion and connection. It has 1 10G fiber port and 1 RJ45 port. Except extending the transmission distance, there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
Features:
- Adopts Marvell chip, which ensures non-blocking data transmission, security and stability
- Supports 10Gbase－T to 10Gbase-SR/LR/ER/ZR on the Ethernet port
- Support 3R (Balanced amplification, clock extraction, integral regeneration) function on the fiber port to ensure small data jitter.
- Small latency on the data transmission.
- Support various wavelengths including 850nm, 1310nm, 1550nm and CWDM/DWDM under ITUT rule.
- Supports Jumbo Frame.
Specification:
| Standards | IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 10GBase-SX/LX | IEEE802.3x Flow control IEEE802.1q VLAN IEEE802.1p QoS IEEE802.1d Spanning Tree |
| Certifications | CCC, CE, FCC, RoHS |
| Ethernet Port | - Connector: RJ45
- Data Rate: 10G
- Distance: 100m
- UTP Type: UTP-5E or higher level
|
| Fiber Port | - Connector: SFP slot
- Data Rate: 10Gbps
- Optical Wavelength: 850nm/1310nm/1490nm/1550nm
- Optical Fiber Type: Single mode 9/125μm; Multi mode 50/125μm、62.5/125μm
- Distance: 550m～100km
|
| Performance | - Processing Type: Store and Forward
- Transmission Mode: Full/half-duplex auto-adaptive
- MAC Table Size: 2K
- Buffer Space: 1Mbit
- Time Delay: ＜20μs
|

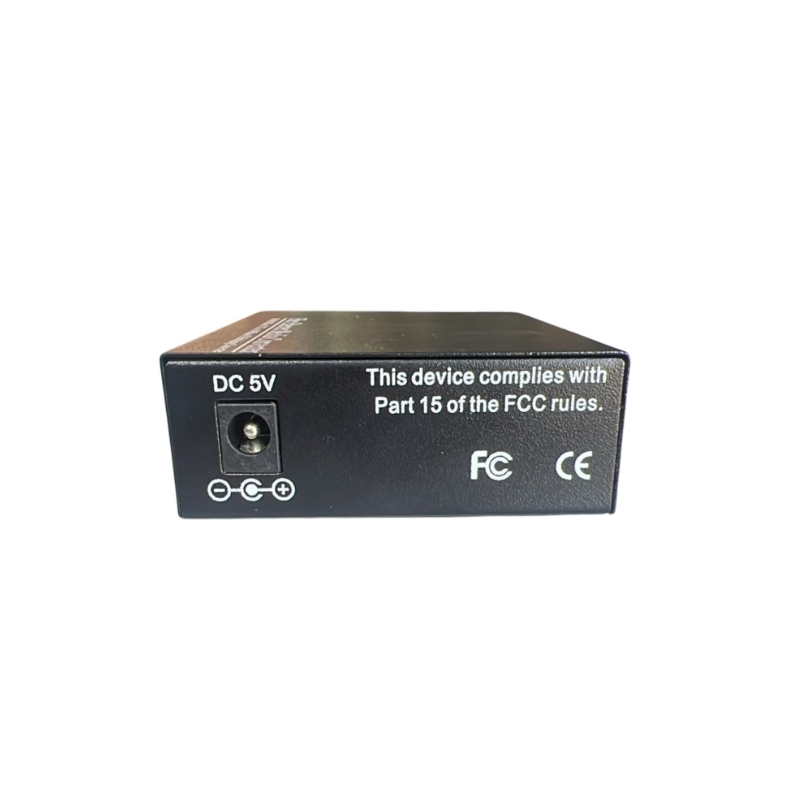

| Power | - Power type: external power supply
- Input Voltage: AC100V～240V 50/60Hz
- Connector: DC Socket
- Working Voltage: 5V4A&12V
- Power Consumption: 0.75W～3W
|
| Environment | - Storage Temperature: -40～70℃
- Operating Temperature: -10～55℃
- Relative Humidity: 5-90% ( no condensation)
|
| Warranty | 1 year |
| Physical Characteristics | - Dimension: 117×85×21mm
- Weight: 0.1kg
- Color: Metal, Black
|
