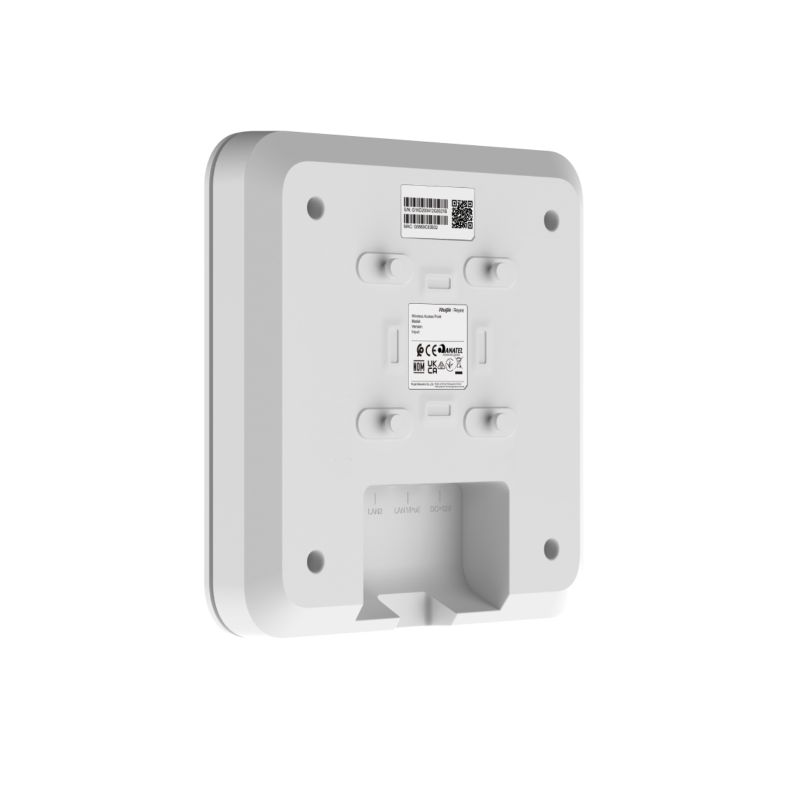

AP-RG-RAP2200 Ceiling Access Point
.jpg)
if defective or damaged
Seller warranty (if applicable)
Multiple options available
Dual Band Wi-Fi 5 Ceiling Access Point
The Dual Band Wi-Fi 5 Ceiling Access Point is a high-performance indoor wireless access point designed to deliver stable, high-speed wireless connectivity for offices, hotels, schools, hospitals, restaurants, and commercial environments. Its compact ceiling or wall-mount design provides professional wireless coverage while maintaining a clean installation.
Supporting dual-band Wi-Fi 5 (802.11ac) with 2 × 2 MIMO on both 2.4GHz and 5GHz bands, the access point delivers wireless speeds up to 1266 Mbps. Built-in omnidirectional antennas, PoE/PoE+ support, and enterprise-grade multi-user performance make it ideal for reliable indoor Wi-Fi deployments.
Quick Specifications
Key Features
- Dual-band Wi-Fi 5 (802.11ac)
- 2 × 2 MIMO on both 2.4GHz and 5GHz
- Maximum wireless speed up to 1266 Mbps
- Dual-radio architecture with 4 spatial streams
- Built-in omnidirectional antennas
- Supports up to 110 wireless users
- Ceiling and wall mounting installation
- Powered by DC adapter, PoE or PoE+
- Compact and lightweight design
- Ideal for enterprise indoor wireless deployments
Wireless Specifications
| Category | Specification |
|---|---|
| Wi-Fi Standard | Wi-Fi 5 (IEEE 802.11ac) |
| Radio Design | Dual Radio |
| Spatial Streams | 4 Spatial Streams |
| 2.4GHz Radio | 2 × 2 MIMO |
| 5GHz Radio | 2 × 2 MIMO |
| Maximum Wireless Speed | 1266 Mbps |
| 5GHz Speed | 866 Mbps |
| 2.4GHz Speed | 400 Mbps |
| 6GHz Support | No |
Antenna Specifications
| Band | Antenna Type |
|---|---|
| 2.4GHz | 2 Built-in Omnidirectional Antennas |
| 5GHz | 2 Built-in Omnidirectional Antennas |
Port & Power Specifications
| Parameter | Specification |
|---|---|
| LAN Ports | 2 × 10/100BASE-T Ethernet Ports |
| Power Supply | DC Adapter / PoE / PoE+ |
| DC Input | 12V / 1.5A |
| DC Connector | 5.5 × 2.1 mm |
| Maximum Power Consumption | 12.95W |
Physical & Performance Specifications
| Parameter | Specification |
|---|---|
| Dimensions | 194 × 194 × 35 mm |
| Weight | ≤ 0.45 kg |
| Color | White |
| Mounting Options | Ceiling / Wall Mount |
| IP Rating | Indoor Use (No IP Rating) |
| Maximum Wireless Clients | 110 Users |
| 2.4GHz Clients | 64 Users |
| 5GHz Clients | 110 Users |
| Managed Devices | Up to 150 Devices |
| IPv6 Support | No |
Applications
Hotels & Resorts
Provides reliable wireless coverage for guest rooms, lobbies, and conference areas.
Schools & Hospitals
Delivers stable Wi-Fi for classrooms, laboratories, clinics, and wards.
Corporate Offices
Supports high-density wireless access for employees and business operations.
Restaurants & Commercial Buildings
Ideal for cafés, retail stores, restaurants, and indoor commercial Wi-Fi deployments.
Installation Recommendation
For optimum wireless coverage, install the access point on the ceiling at the center of the coverage area. Use PoE or PoE+ where available to simplify installation and reduce cabling requirements. Avoid placing the unit near large metal objects or electrical interference sources to maximize wireless performance and roaming efficiency.
