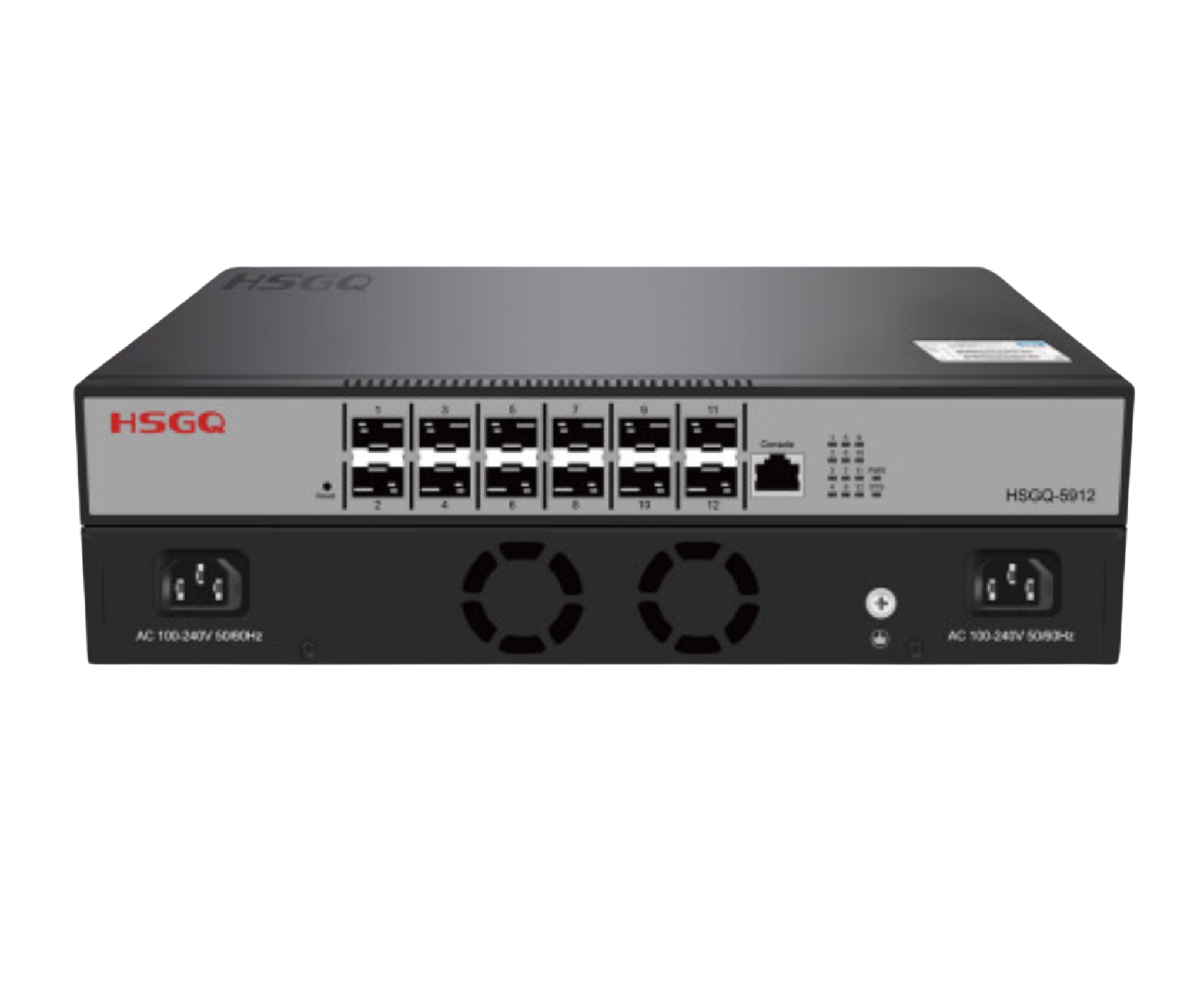

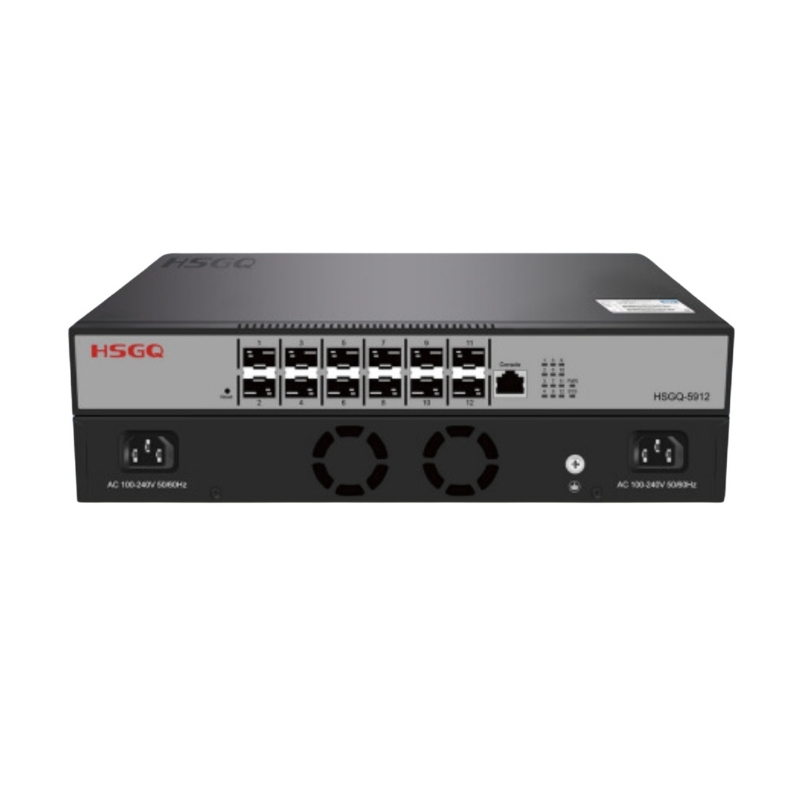

Switch SFP 10G HSGQ-5912
.png)
Product Description of Switch SFP 10G HSGQ-5912:
12 Port 10G L3 Managed Industrial Switch, support 12 SFP+ port, 1 Console port, providing complete security policy, perfect QoS policy and rich VLAN function, easy to manage and maintain, meeting the networking and access requirements of enterprises, communities, hotels, office networks and campus networks.
Application Environment of Switch SFP 10G HSGQ-5912:
- Support IEEE 802.11, EEE 802.tw, IEEE 802.1s. IEEE 802.1p, IEEE 802.3 IEEE 802.3, IEEE 802.3, IEEE 802.3, IEEE 802.3ab IEEE 802.3ae Standard
- L3 Management Support DHCP Server, DHCP Snooping, DHCP Relay, Static Routing, RIP and OSFP
- Support RSTPMSTP
- Support VLAN function, Port VLAN, translation and Q-n-Q
System specification of Switch SFP 10G HSGQ-5912:
| Interface | ||
| Ports | 12×10G SFP | |
| Console | 1xRS-232 (115200, 8.N.1) | |
| Switch Property | ||
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.32, IEEE 802.3, IEEE 802.10, IEEE 802.1p, IEEE 802.3ad, IEEE 802.10, IEEE 802.1 | |
Forwarding Modes
| Store and Forward | |
Packet Buffer
| 12Mb | |
MAC Table
| 32k | |
| Switching Capacity | 240Gbps/non-blocking | |
| Packet Forwarding | 179Mpps | |
| Power supply | ||
| Input Voltage | AC100V-240V, 50Hz/60Hz | |
| Power Consumption | 40W | |
| Reliability | ||
| ESD Protection | 8KV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2 | |
| MTBF | 100000h | |
| MTBF Standards | Telcordia SR-332 26℃ | |
| Working Environment | Operating Temperature -10°C-50°C Storage Temperature -40°C-85°C Operating Humidity 5%~95%(Non-condensation)
| |
| Physical Parameter | ||
| LED Indicators | 1x power supply indicator, 1x system working indicator, 12x optical port status indicator | |
| Reset Button | Short press to restart the switch, long press 7s to initialise the system | |
| Dimensions | (WDH) 445-193-44mm
| |
| Net Weight | 1.7 KG | |
| Material | Metal | |
| Desktop, DIN-Rail, Wall Mounted | Desktop/rack mounted | |
| System Management | ||
| Port Mirroring | Enable and Disable | Mirror Port Range |
| Mirror Port | Collect Data | |
| SNMP | Enable and Disable | Read-only Group name |
| SNMP Version | SNMP Gateway | |
| Read and write Group Name | ||
| Time | Local Time | NTP Server |
| World Time Zone | System time | |
| Using NTP | PC Time | |
| Automatically Adjust Daylight Saving Time | ||
| Syslog | Enable and Disable | Information Processing |
| Show Type | ||
| Management | Restore Factory Value | System Reboot |
| Upload Configuration File | System Upgrade | |
| Download configuration File | ||
| User Setting | Access Privilege, Change password | |
| Username | ||
| Security | ||
| Static Address Lock | Enable and disable | |
| MAC Address, VLAN, Port | ||
| IP Service | ||
| Interface IP | Network Interface(VID), Static IP | |
| IPv4Address | ||
| DHCP Server | Client Lease time | Network Interface |
| Preferred DNS Address | Default Gateway | |
| Backup DNS Address | Start IP Address | |
| WINS Server | Max Client Number | |
