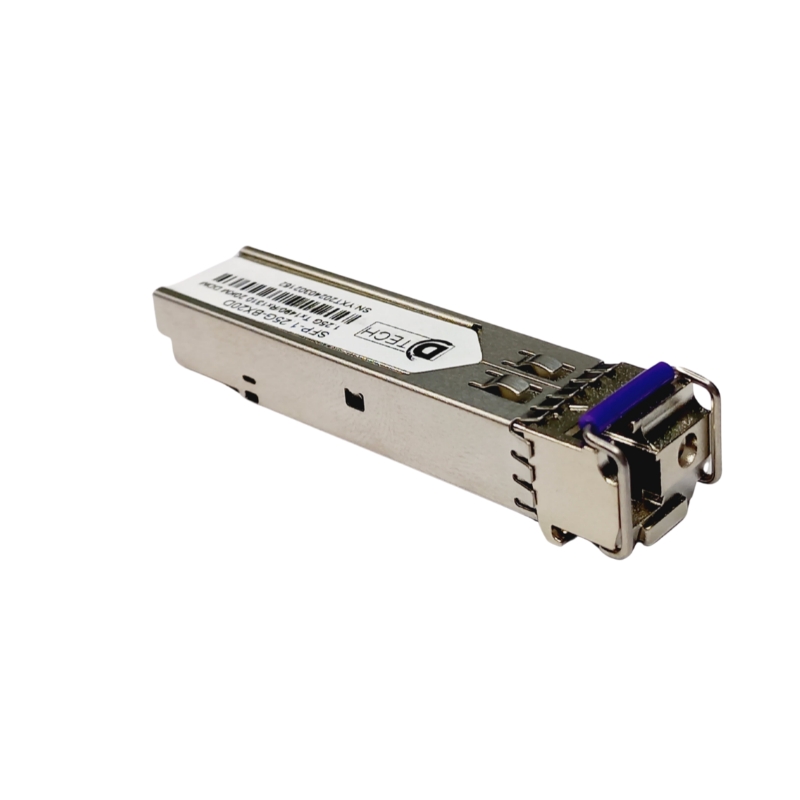

Product Overview of SFP 1.25G, TX1490nm/RX1310nm, LC, DDM:
The SFP-BIDI transceivers are high performance, cost effective modules supporting dual data-rate of 1.25Gbps/1.0625Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Features of SFP 1.25G, TX1490nm/RX1310nm,LC, DDM:
- Dual data-rate of 1.25Gbps/1.063Gbps operation
- 1490nm DFB laser and PIN photodetector for 20km transmission
- Compliant with SFP MSA and SFF-8472 with simplex LC or SC receptacle
- Digital Diagnostic Monitoring:
- Internal Calibration or External Calibration
- Compatible with SONET OC-24-LR-1
- Compatible with RoHS
- +3.3V single power supply
- Operating case temperature range of
- 0°C to +70°C (Commercial) or -40°C to +85°C (Industrial)
Parameter of SFP 1.25G, TX1490nm/RX1310nm,LC, DDM:
| Package (Form Factor) | BIDI SFP |
| Data Rate (typical) | 1.25 Gb/s |
| Centre Wavelength | Tx1490nm/Rx1310nm |
| Distance | 20km |
| Diagnostics | Digital Monitor |
| Transmitter | DFB Laser |
| Receiver | PIN photo detector |
| TX Output Power (dBm) | -9~-3 |
| RX Sensitivity (dBm) | -23 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | Simplex LC/UPC |
Application of SFP 1.25G, TX1490nm/RX1310nm, LC, DDM:
- Gigabit Ethernet
- Fiber Channel
- Switch to Switch interface
- Switched backplane applications
- Router/Server interface
- Other optical transmission systems
