Product Specification
Model

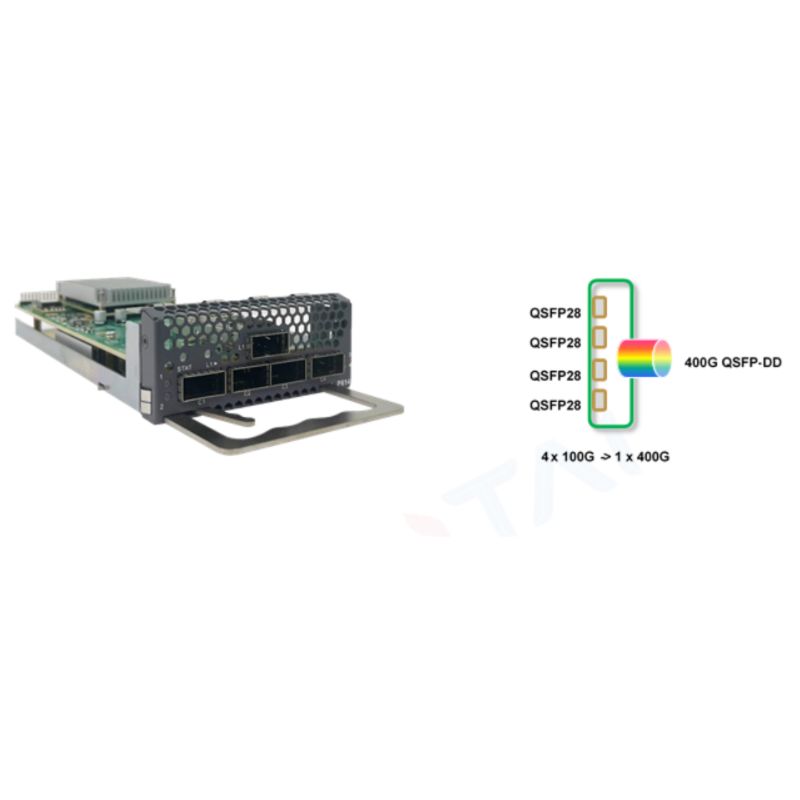

400G Muxponder Service Board – P614
Function
• Supports 1 × 400G or 4 × 100G service signal mapping into 1 OTUC4 signal
Slot Number
• 1 Slot
Line Side
• Supports 1 × CFP2 port
• Uses 400G CFP2-DCO coherent optical module (hot-pluggable)
Features:
• Tunable wavelength range: 191.35 – 196.1 THz (DWDM C-Band)
• Adjustable transmit optical power
• Supports 100G / 200G / 400G transmission rates
• Optional single-fiber bidirectional transmission
Client Side
• Supports 1 × QSFP-DD / QSFP28
• Supports 3 × QSFP28 modules (hot-pluggable)
OTN Functions
• Frame format and overhead processing compliant with ITU-T G.709 standards
Layer functions:
• ODUk (k = 4, C4) layer supports Performance Monitoring (PM) and related functions
• OTUk (k = 4, C4) layer supports Section Monitoring (SM) functions
Supported Services
• 100GE
• 100GE FlexE (Unaware)
• 400GE
• OTU4
Time Delay Measurement
• Supports online delay measurement based on the ODU layer
Loopback Functions
• Supports line-side loopback
• Supports client-side loopback
LLDP
• Supports Ethernet LLDP protocol
Protection Function
• No client-side sensing during protection switching when used with an optical protection board (optional)
Performance & Alarm Monitoring
Supports comprehensive monitoring functions including:
• OTN performance monitoring
• Alarm monitoring functions
• Optical module temperature monitoring
• Optical module current monitoring
• Tx/Rx optical power monitoring
• Ethernet RMON monitoring
