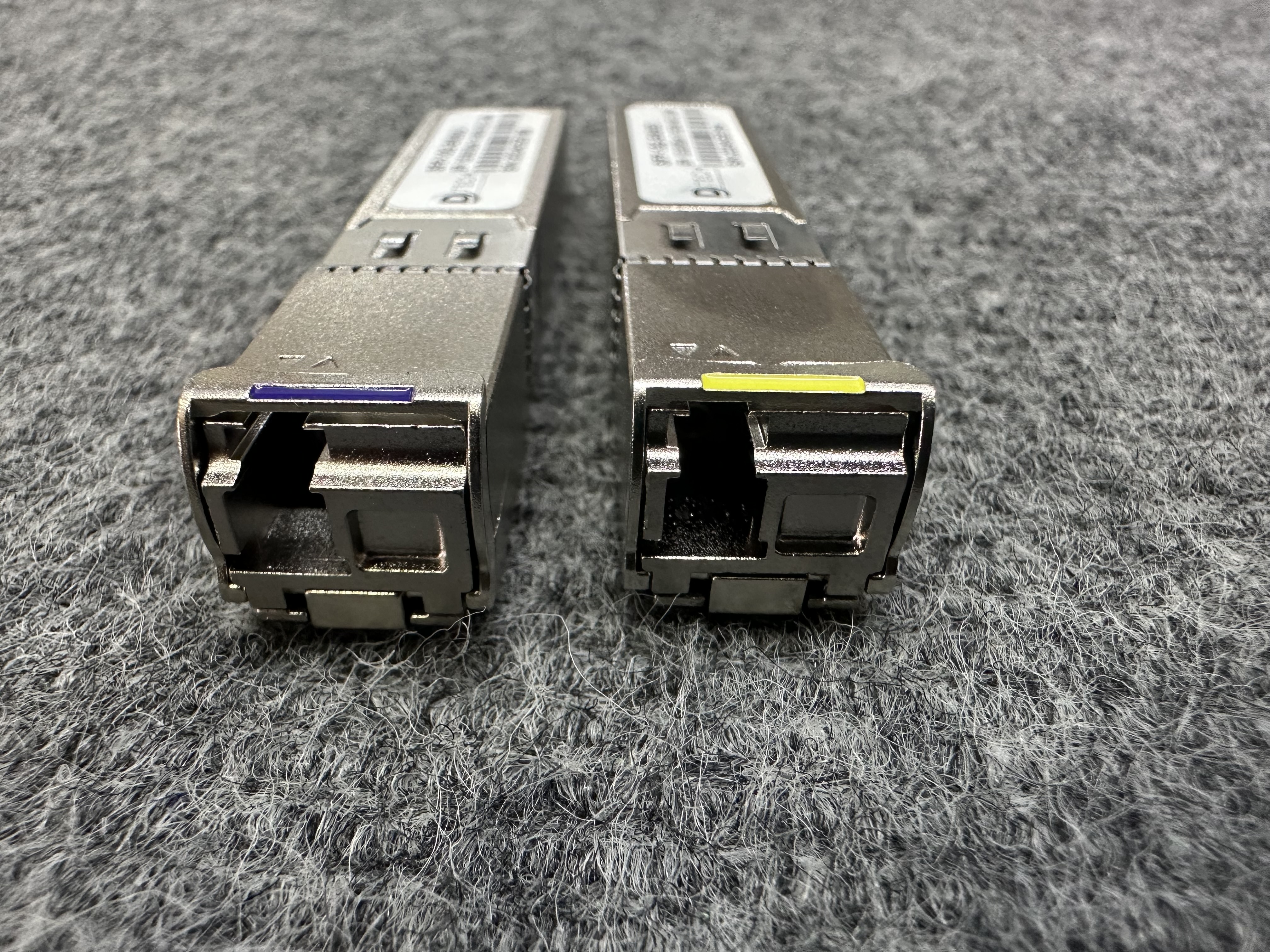

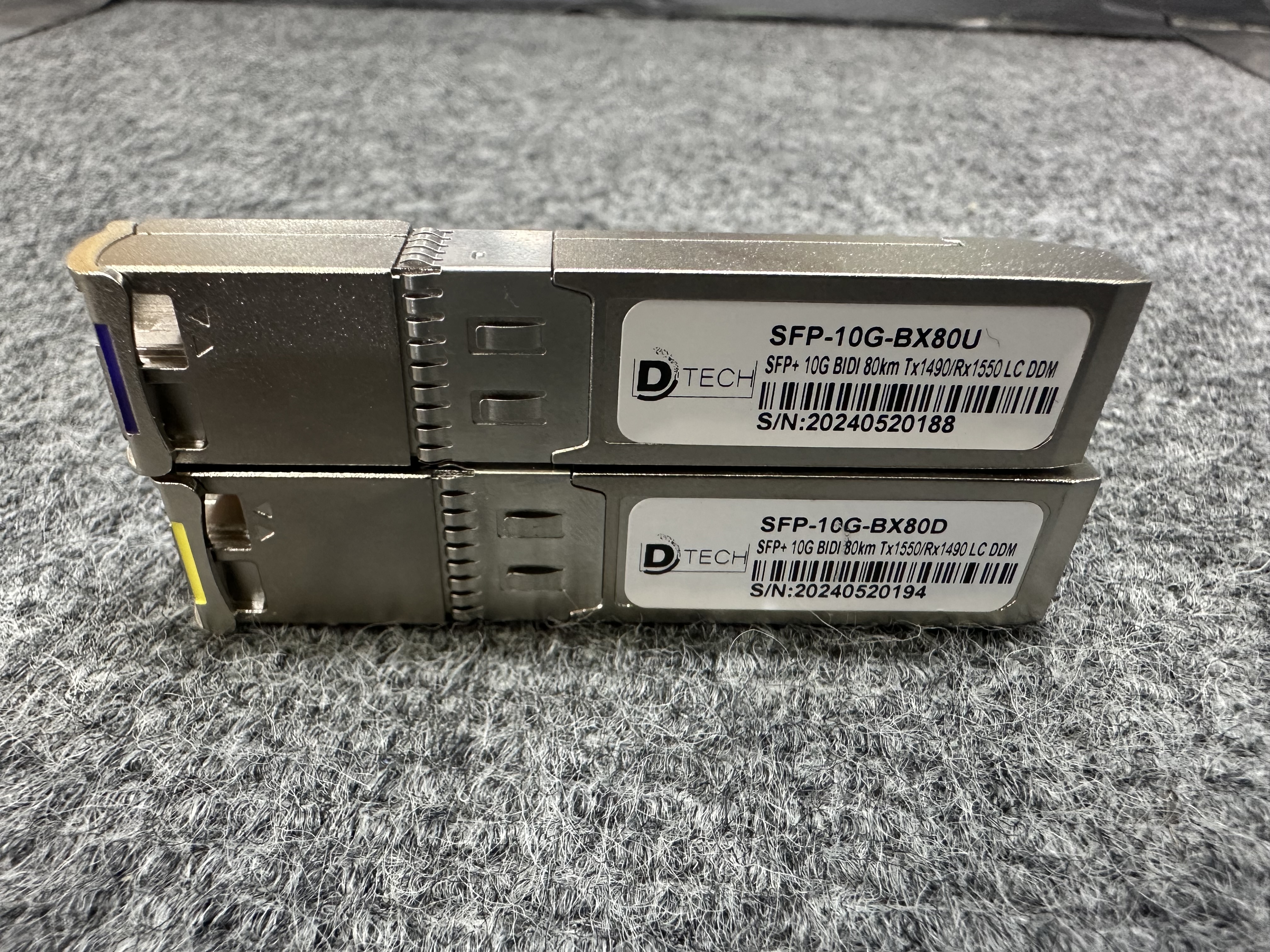

SFP 10G, BIDI Tx1550nm/Rx1490nm, 80KM, LC DDM

General Description of SFP 10G, BIDI Tx1550nm/Rx1490nm, 80KM, LC DDM:

HTF’HTSX-B495596Zx/HTSX-B554996Zx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 80km over single-mode fiber. The module consists of CWDM DFB Laser, APD and Preamplifier in a highly integrated optical sub-assembly. Digital diagnostic functions are available via a 2-wire serial interface, as specified in SFF-8472.

HTSX-B495596Zx/HTSX-B554996Zx transceivers provide a unique enhanced digital diagnostic monitoring interface which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags which alerts end-users when particular operating parameters are outside of a factory-set normal range.

The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8-bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8-bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged

Features of SFP 10G, BIDI Tx1550nm/Rx1490nm, 80KM, LC DDM:

  • Up to 11.1 GB/s data
  • 1490nm DFB laser and APD receiver for HTSX-B495596Zx
  • 1550nm DFB laser and APD receiver for HTSX-B554996Zx
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Up to 80km  transmission on SMF
  • BIDI LC optical connector
  • Single +3.3V power supply
  • Metal enclosure, for lower EMI
  • Maximum power consumption: 1.8W
  • RoHS-6-compliant and lead-free
  • SFF-8472 MSA-compliant, and SFF-8431
  • Operating case temperature
  • Commercial: 0 ~ +70 oC
  • Extended:  -10 ~ +80oC
  • Industrial: -40 ~ +85 oC

Part Number Ordering Information:

Part Number

Data Rate (Gb/s)

Wavelength (nm)

Transmission Distance(km)

Temperature (oC) (Operating Case)

HTSX-B495596ZC

10.3125

1490Tx/1550Rx

80km SMF

0~70 commercial

HTSX-B554996ZC

10.3125

1550Tx/1490Rx

80km SMF

0~70 commercial

HTSX-B495596ZE

10.3125

1490Tx/1550Rx

80km SMF

-10~80 extended

HTSX-B554996ZE

10.3125

1550Tx/1490Rx

80km SMF

-10~80 extended

HTSX-B495596ZI

10.3125

1490Tx/1550Rx

80km SMF

-40~85  industrial

HTSX-B554996ZI

10.3125

1550Tx/1490Rx

80km SMF

-40~85  industrial

Absolute Maximum Ratings:

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Unit

Notes

Storage Temperature

TS

-40

85

oC



Power Supply Voltage

VCC

-0.5

3.6

V



Relative Humidity (non-condensation)

RH

5

95

%



Damage Threshold

THd

0



dBm



Recommended Operating Conditions and Power Supply Requirements:

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Operating Case Temperature

TOP

0



70

oC

commercial

Power Supply Voltage

VCC

3.135

3.3

3.465

V



Data Rate





10.3125



Gb/s



Control Input Voltage is high.



2



Vcc

V



Control Input Voltage is low.



0



0.8

V



Link Distance (SMF)

D





80

km

9/125um
