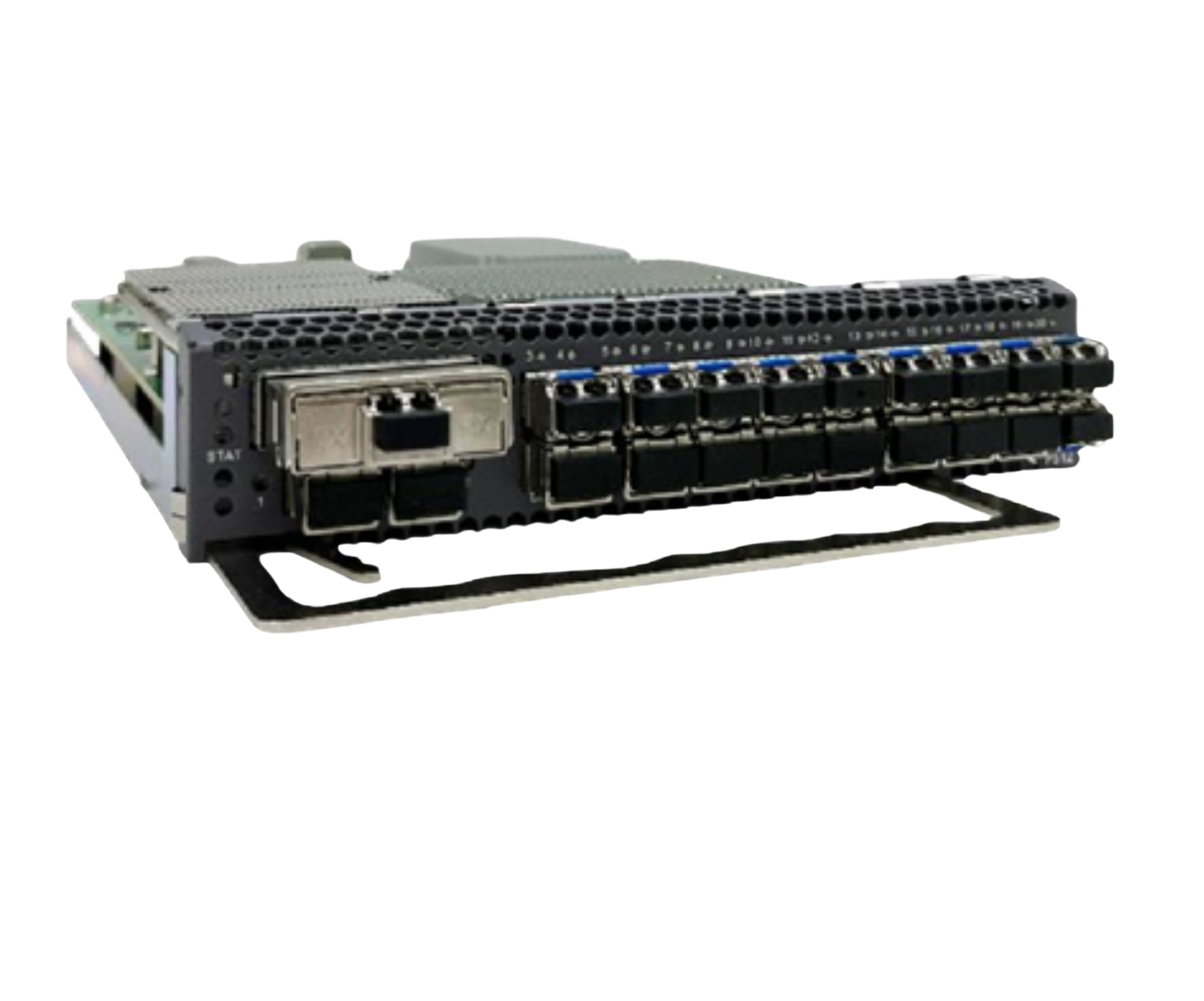

P512 (20*10G Muxponder)

P512 (20*10G Muxponder)

Overview

The 20*10G Muxponder service card (P512) launched by D Tech Trading mapping the 20x10G optical signal received on the client side to a 1 OTUC2 signal and interconverting the OTUC2 signal with the optical signal of WDM wavelength in compliance with ITU-T standards. The line side adopts pluggable CFP2-DCO to realize ultra-long distance transmission based on advanced technologies such as coherent detection.

Application:

  • Suitable for transmission over metropolitan networks and long-distance networks up to 1000 km
  •  Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
  •  Suitable for 200G links in existing OTN/DWDM infrastructures

Product Specification:

Feature Details
Muxponder Type 200G Muxponder (P512)
Slots 2 slots
Line Side 2 CFP2 ports: using 200G & 400G CFP2-DCO modules, pluggable
Client Side Support 20 SFP+ modules hot-pluggable
Function - Support 20x10G service signals mapping to 1 OTUC2 signal
  - Support wavelength adjustable, covering 191.35~196.1 THz.
  - Support light-emitting power adjustable
  - Support 100G/200G rate adjustable
  - Support single fiber bidirectional transmission (optional)
Frame Format & Overhead Handling Using ITU-T G709 recommendations
OTN Function - ODUk (k=2, 2e, 4, C2) layer: support PM and other functions
  - OTUk (k=2, 4, C2) layer: support SM functions
Supported Service Types 10GE, FC 8G/16G, STM-64, OTU2
Time Delay Measurement Online delay measurement based on ODU layer
Loop Back Support line side and client side loopbacks
LLDP Ethernet Support
OTN Performance Monitoring - Support OTN performance monitoring and alarm monitoring
Performance Monitoring & Alarm Monitoring - Support temperature, current, and power monitoring of optical module
  - Support Ethernet RMON monitoring
  - Support Telemetry
