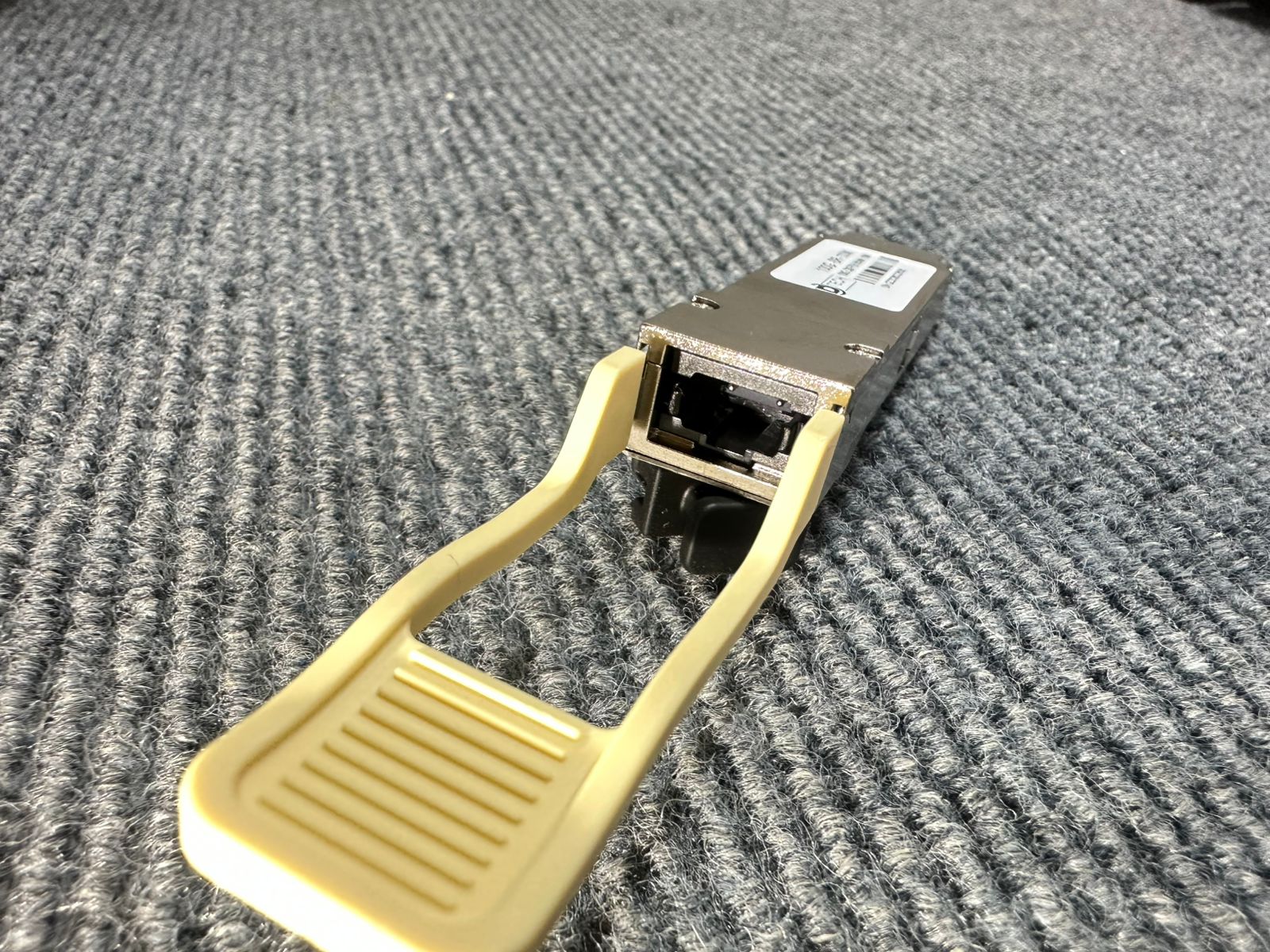

SFP 100G SR4 850nm QSFP28+

Brand: D-TECH SKU: #748

0.0

0 ratings

About this item

100G SR4 850nm 100Mtr QSFP28+

Available options

100Mtr

Commercial Details

Warranty:: 1 Year
Country of Origin:: China

Category: Networking Goods

0% OFF Rs 7,631.80

M.R.P: Rs 7,631.80

Inclusive of all taxes

Ships from D-TECH

Deliver to

Select a city to check delivery

Returns: 7-day replacement

Warranty: Seller warranty (if applicable)

Need help? Customer Service

General Description:

This product is a parallel 100 GB/s Quad Small Form-factor Pluggable (QSFP28) optical module. It provides increased port density and total system cost savings. An optical fiber ribbon cable with an MTP/MPO connector can be plugged into the QSFP28 module. The cable usually cannot be twisted for proper channel-to-channel alignment. Electrical connection is achieved through an MSA-compliant 38-pin edge-type connector. The module operates on a single +3.3V power supply. LVCMOS/LVTTL global control signals, such as Module Present, Reset, Interrupt, and Low Power Mode, are available with the modules. A 2-wireserial interface is available to send and receive more complex control signals and to receive digital diagnostic information. Individual channels can be addressed and unused channels can be shut down for maximum design flexibility.

Features:

Hot-pluggable QSFP28 form factor
Supports 103.1 GB/s aggregate bit rate
4x25G electrical interface
Compliant to IEEE 802.3bm 100GBASE-SR4
MTP/MPO optical connector
Up to 100 m OM4 MMF transmission
Digital diagnostic SFF-8636 compliant
RoHS-6-compliant and lead-free
Compliant with QSFP28 MSA
Single +3.3V power supply
Maximum power consumption: 2.0W
Case operating temperature: Commercial (exact temperature range not provided)

Applications:

Data Center
Fiber channel
Ethernet switches and router applications

Electrical and optical characteristics:

Parameter	Symbol	Min.	Typ.	Max	Unit	Notes
Power Consumption	P		2.0		W
Supply Current	Icc		600		mA
Transmitter Single-ended Input Voltage Tolerance	Vcc	-0.3		4.0	V
Differential Input Voltage Swing	Vin,pp	180		1000	mVpp
Differential Input Impedance	Zin	90	100	110	Ohm	1
Transmit Disable Assert Time			10		us
Transmit Disable Voltage	Vdis	Vcc-1.3		Vcc	V
Transmit Enable Voltage	Ven	Vee	Vee+0.8		V	2
Transmitter Center Wavelength	λC	840	850	860	nm
Optical Spectral Width	∆λ		0.6		nm
Average Launch Power each lane	PAVG	-8.4	2.4		dBm
Optical Extinction Ratio	ER		2		dB
Transmitter and Dispersion Penalty	TDP		4.3		dB
Transmitter OFF Output Power	Poff		-30		dBm
Transmitter Eye Mask Compliance						Compliant with IEEE802.3ae
Receiver Center Wavelength	λC	840	860		nm
Receiver Differential Output Voltage Swing	Vout,pp	300		850	mVpp
Differential Output Impedance	Zout	90	100	110	Ohm	3
Data output rise/fall time	Tr/Tf		28		ps	4
LOS Assert Voltage	VlosH	Vcc-1.3		Vcc	V	5
LOS De-assert Voltage	VlosL	Vee	Vee+0.8		V	5
Rx Sensitivity per lane	Sen.	-10.3			dBm	1
Input Saturation Power (overload)	Psat		2.4		dBm
LOS Assert	LOSA		-26		dBm
LOS De-assert	LOSD		-12		dBm
LOS Hysteresis	LOSH		0.5		dB
