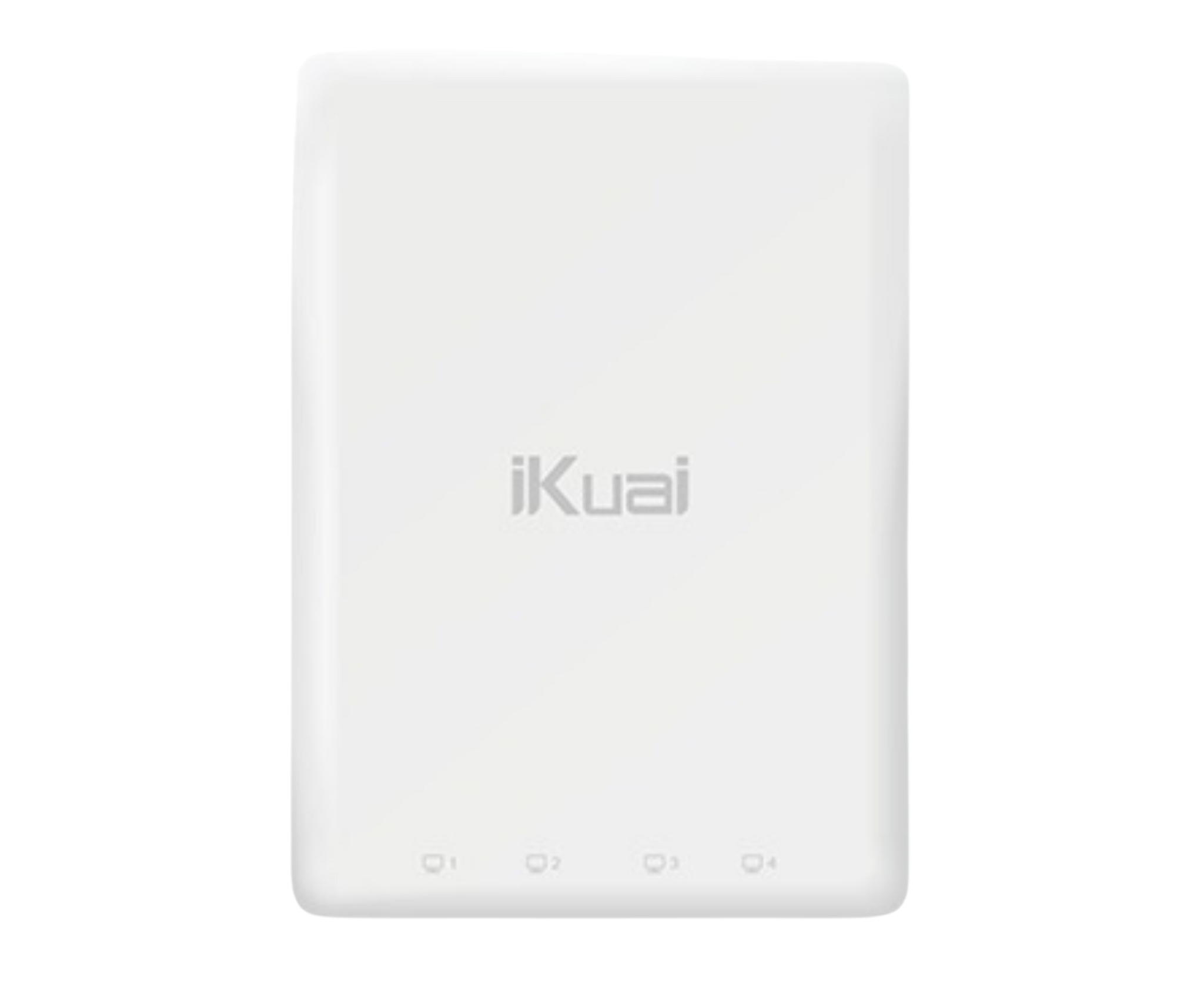

IK-W7 Dual-Band Wi-Fi 5 Gigabit Wall Access Point
The IK-W7 Dual-Band Wall Access Point is a high-performance Wi-Fi 5 (802.11ac Wave 2) wireless access point designed for hotels, apartments, offices, schools, and enterprise networks. Featuring 2×2 MU-MIMO, dual-band wireless connectivity, and four Gigabit Ethernet ports, it delivers fast, stable, and secure wireless access for multiple users.
Powered through 48V PoE, the IK-W7 supports intelligent AC centralized management, fast roaming, VLAN, scheduled reboot, multilingual SSID configuration, and enterprise-grade wireless security, making deployment and maintenance simple while providing an excellent wireless experience.
Quick Specifications
Key Features
- IEEE 802.11 a/b/g/n/ac wireless standards
- Dual-band 2.4GHz & 5GHz wireless
- 802.11ac Wave 2 with 2×2 MU-MIMO
- 4 × 10/100/1000 Mbps Gigabit LAN ports
- Supports more than 60 wireless users
- 48V PoE powered installation
- 20 dBm wireless transmit power
- 5GHz priority access
- Fast wireless roaming
- SSID VLAN support
- Chinese & English SSID configuration
- Hidden SSID support
- Centralized AC management
- Scheduled reboot & one-click firmware upgrade
Applications
Hotels
Wall-mounted wireless access for hotel rooms with Gigabit LAN connectivity.
Apartments & Dormitories
Reliable wireless coverage and wired network access for residential buildings.
Enterprise Offices
Ideal for offices requiring secure wireless roaming and centralized management.
Schools & Campuses
Supports multiple users with seamless roaming across the wireless network.
Technical Specifications
| Category | Specification |
|---|---|
| Model | IK-W7 |
| Product Type | Dual-Band Wi-Fi 5 Wall Access Point |
| Wireless Standards | IEEE 802.11 a/b/g/n/ac |
| Wireless Architecture | 802.11ac Wave 2, 2×2 MU-MIMO |
| Frequency Band | 2.4GHz & 5GHz |
| Ethernet Interface | 4 × 10/100/1000 Base-TX RJ45 |
| User Capacity | 60+ Users |
| Transmit Power | 20 dBm |
| Coverage Radius | Up to 10 meters |
| Power Supply | 48V PoE |
| Dimensions | 120 × 86 × 43 mm |
Wireless & Management Features
| Feature | Details |
|---|---|
| Wireless Security | WPA-PSK, WPA2-PSK, WPA/WPA2-PSK |
| 5GHz Optimization | 5GHz Priority Access |
| Roaming | Fast Wireless Roaming |
| SSID Management | SSID VLAN, Hidden SSID, Chinese & English SSID |
| Wireless Configuration | Independent Signal Strength & Channel Settings |
| Central Management | Intelligent AC Unified Management |
| Maintenance | One-Key Firmware Upgrade, Scheduled Restart, Custom Startup Time |
Installation Recommendation
Install the IK-W7 using a 48V PoE switch or PoE injector for simplified deployment. It is ideal for hotel guest rooms, apartments, offices, and classrooms where both wireless connectivity and multiple Gigabit LAN ports are required. For larger deployments, use the built-in AC centralized management, enable 5GHz priority and fast roaming, and configure SSID VLANs to improve network performance, security, and user experience.
