The HSGQ-SFP-vOLT_128 is a GPON OLT SFP stick module.
It integrates OLT functionality into switches, routers, or other network devices via an SFP slot.
Fully compliant with ITU-T G.984.x GPON standards.
Class C+ optical module with a higher optical budget, enabling longer reach and higher split ratios.
Downstream (OLT to ONU): 2.488 Gbps
Upstream (ONU to OLT): 1.244 Gbps
Optical budget: about 32 dB (supports up to 20 km reach depending on splitter ratio)
Transmission wavelengths:
Downstream: 1490 nm
Upstream: 1310 nm
Connector type: SC/UPC
Hot-pluggable SFP interface
Built-in management and control functions via OMCI

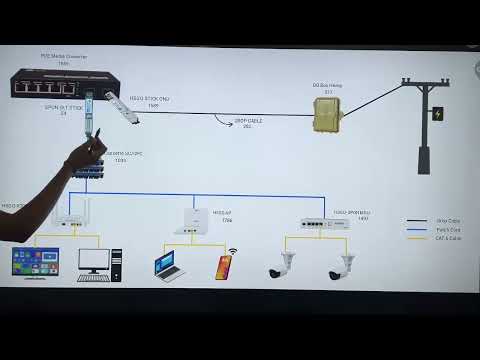

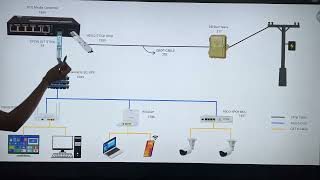

GPON OLT deployment in FTTx networks (Fiber to the Home, Business, Building)
Suitable for ISPs, telecom operators, and data centers requiring compact OLT integration
Enables plug-and-play OLT functionality on devices with SFP ports, reducing hardware needs
Power supply: +3.3V
Power consumption: less than 3.5W
Operating temperature:
Commercial: 0°C to 70°C
Industrial: -40°C t
