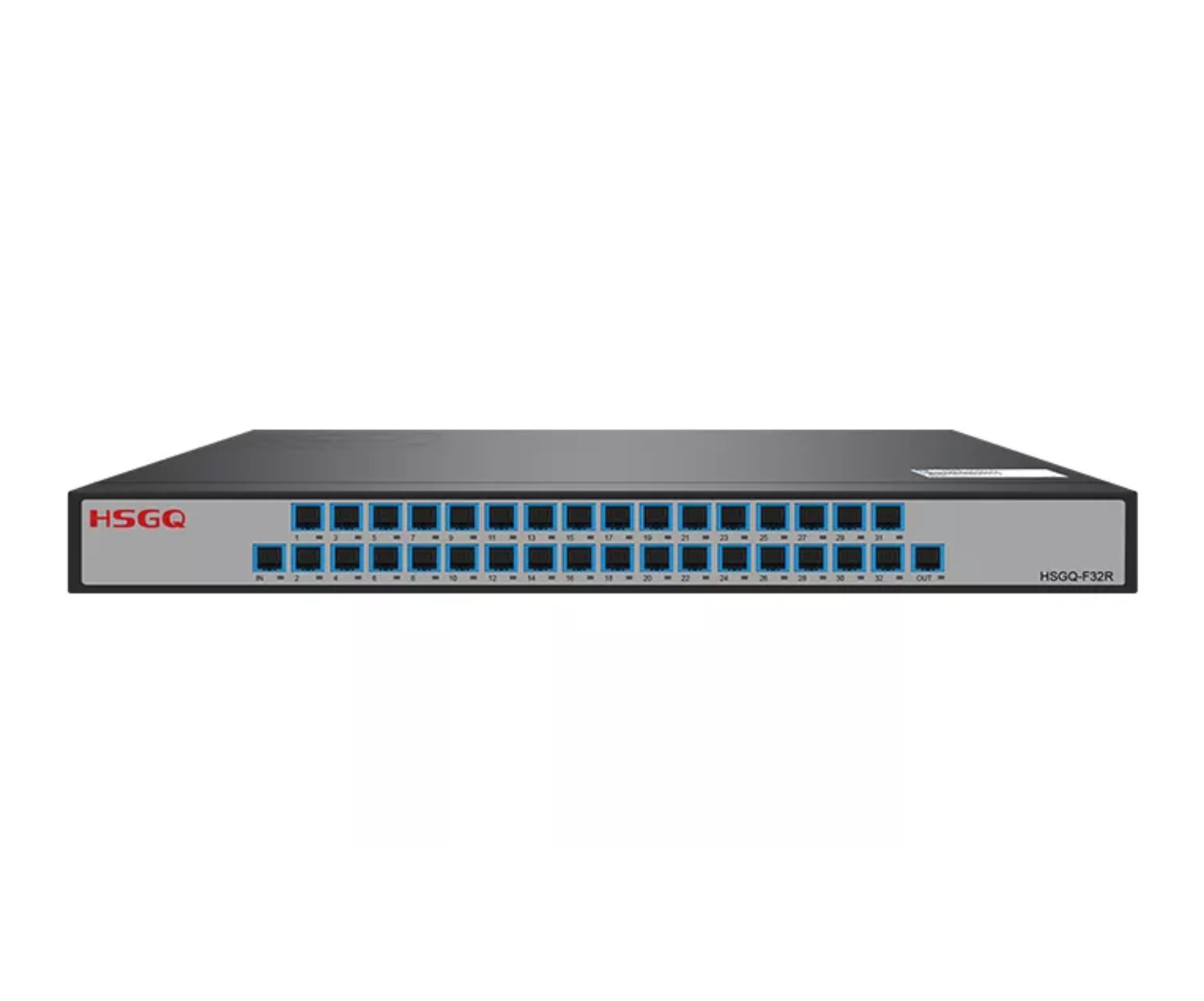

HSGQ-F32R PoF Optical Router

32-Port PoF Optical Router with Integrated 48V Power Supply • GPON / EPON Auto Adaptation

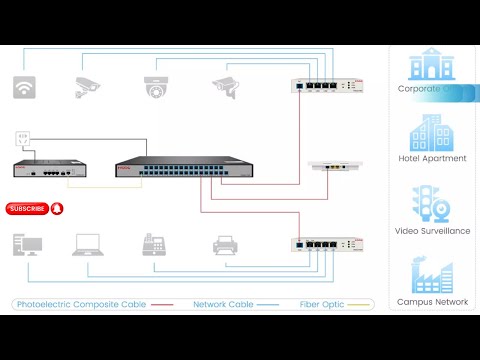

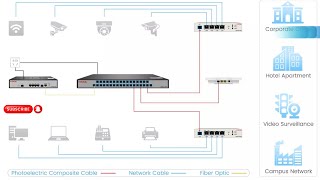

The HSGQ-F32R PoF Optical Router is a high-performance optical-electrical integrated distribution device designed for FTTH, smart buildings, hotels, industrial parks, apartments, CCTV surveillance, and enterprise optical networking. It combines a 1×32 optical distribution unit with a built-in 32-channel 48V power supply, allowing both optical data transmission and power delivery through a single optical-electrical composite cable.

Supporting automatic GPON and EPON adaptation, the HSGQ-F32R can simultaneously deliver network connectivity and remote power to Optical Network Units (ONUs) over distances of up to 300 meters. It also supports secondary cascading, making it an excellent solution for scalable all-optical transmission networks.

PoF Outputs

32 Ports

Power Output

48V

Transmission

300 m

PON Mode

GPON / EPON

Key Features

✔ Integrated 1×32 optical distribution and 32-channel 48V power supply

✔ 32 × PoF SC output ports for Optical Network Units (ONUs)

✔ Simultaneous optical data transmission and power delivery

✔ GPON / EPON automatic mode adaptation

✔ Supports optical-electrical composite cable deployment

✔ Maximum transmission distance up to 300 meters

✔ Supports secondary cascade networking

✔ Rack-mount industrial design for telecom cabinets

Technical Specifications

Parameter	Specification
Model	HSGQ-F32R
Product Type	PoF Optical Router
User Interface	32 × PoF SC Output, 1 × PON Input, 1 × PON Output
Interface Mode	Optical-Electrical Composite Cable
PON Compatibility	Automatic GPON / EPON Adaptation
GPON Speed	Upstream 1.25 Gbps / Downstream 2.5 Gbps
GPON Optical Receive Power	-7 dBm to -28 dBm
EPON Speed	Upstream 1.25 Gbps / Downstream 1.25 Gbps
EPON Transmit Power	0 to +4 dBm
EPON Optical Receive Power	-7 dBm to -27 dBm
Maximum Transmission Distance	300 meters
Cascade Support	Secondary Cascade Supported
Dimensions (L × W × H)	445 × 310 × 44 mm
Installation	19-inch Rack Mount
Power Supply	AC 100–240V, 50/60Hz
Power Consumption	< 800 W
Operating Temperature	-10°C to +50°C
Operating Humidity	0% – 85% RH (Non-condensing)
Storage Temperature	-40°C to +80°C
Storage Humidity	5% – 95% RH (Non-condensing)

Applications

🏢 Hotels & Resorts

🏘 Apartments & Residential Buildings

🏭 Industrial Parks

📹 IP CCTV & Video Surveillance

🏫 Schools, Hospitals & Campuses

🌐 All-Optical FTTH & Smart Building Networks

Advantages

Delivers both optical communication and 48V power through a single hybrid cable.
Supports up to 32 ONU connections from one device.
Reduces installation cost by minimizing separate power cabling.
Automatic GPON/EPON compatibility simplifies network deployment.
Supports secondary cascading for flexible network expansion.
Ideal for centralized PoF deployments in hotels, surveillance systems, and smart buildings.

Note: The HSGQ-F32R PoF Optical Router is designed for use with compatible PoF ONUs, optical-electrical composite cables, GPON/EPON OLTs, and Plastic Optical Fiber (PoF) infrastructure. Proper optical power budgeting, cable selection, and ONU compatibility should be verified to ensure stable transmission and reliable remote power delivery over distances up to 300 meters.
