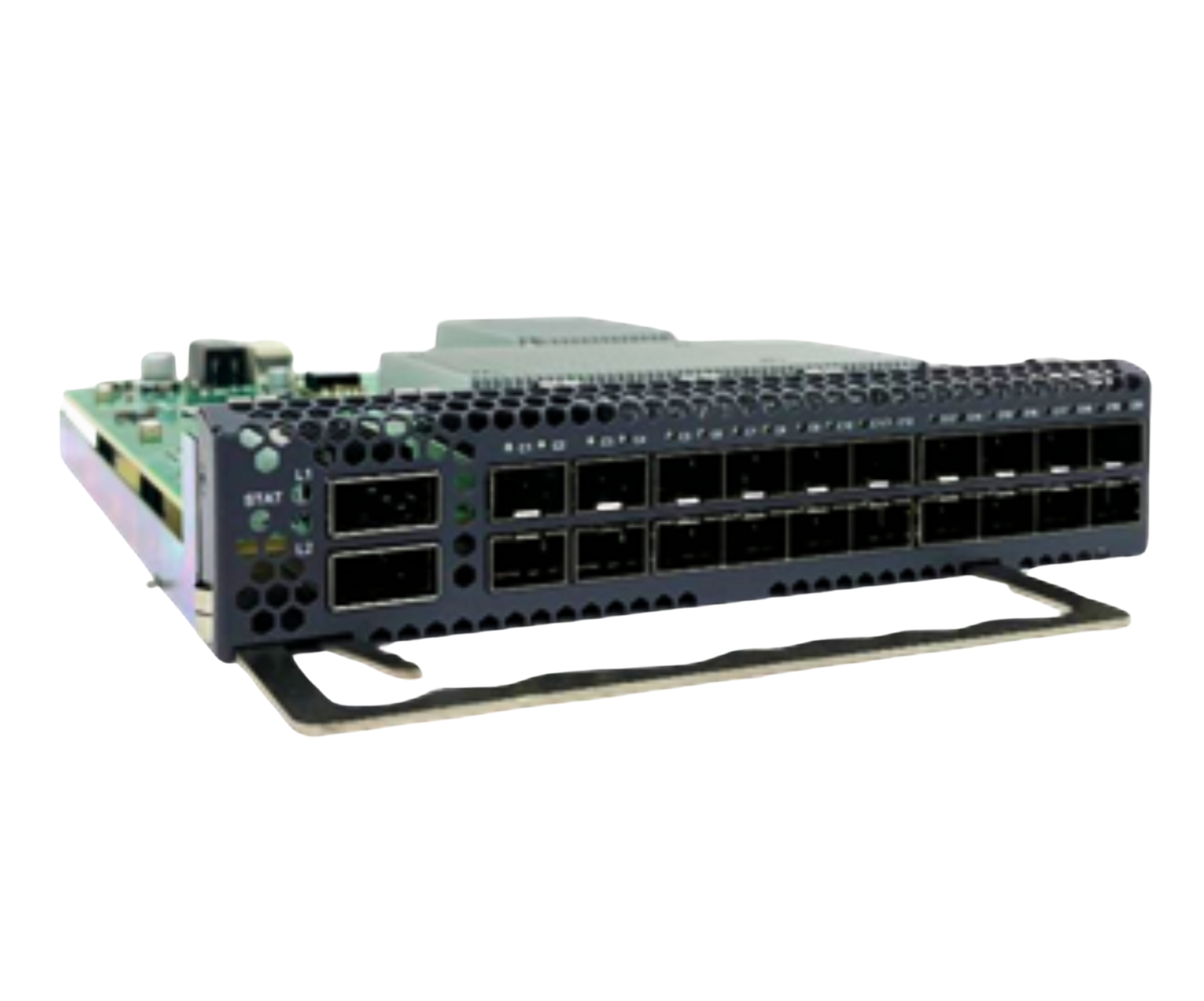

P422 (100G Muxponder)
.png)
.png)
Overview:
The 100G Muxponder service board (P422) launched by D Tech Trading supports mapping the 20x10G optical signal received by the client side into 2 independent OTU4 signals or 10x10G optical signals into 1x OTU4 signal with port 1+1 protection. The line side supports QSFP28 gray optical module or QSFP28/QSFP-DD DCO coherent module to achieve transmission requirements for different distances and diverse networks.
Applications:
- For metro and long-haul network transmission up to 1500 km. QSFP28/QSFP-DD
- For high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
- 100G links for existing OTN/DWDM infrastructure
Product Specification:
| Feature | Details |
|---|---|
| Muxponder Type | 100G Muxponder (P422) |
| Slots | 2 slots |
| Line Side | 2 QSFP28 / QSFP-DD ports: using 100G QSFP28 / QSFP-DD DCO module, pluggable |
| Support wavelength adjustable, range covers 191.35~196.1 THz | |
| Client Side | Support 20 SFP+ modules hot-swappable |
| Function | - Support 20x10G service signals mapping to 2 xOTU4 signals |
| - Support 10x10G service signals mapping to 1 xOTU4 signal (with port 1+1 protection) | |
| Frame Format & Overhead Handling | Using ITU-T G709 recommendations |
| OTN Function | - ODUk (k=2, 2e, 4) layer: support PM and other functions |
| - OTUk (k=2, 4) layer: support SM functions | |
| Supported Service Types | 10GE, FC 8G/16G, STM-64, OTU2 |
| Loop Back | Support line side and client side loopback |
| Protection Function | Support port 1+1 protection (10x10G on client side, 2x100G on line side) |
| OTN Performance Monitoring | Supports OTN performance monitoring and alarm monitoring |
| Performance Monitoring & Alarm Monitoring | - Support optical module temperature, current, optical power monitoring, etc. |
| - Support Ethernet RMON monitoring | |
| - Support Telemetry |
