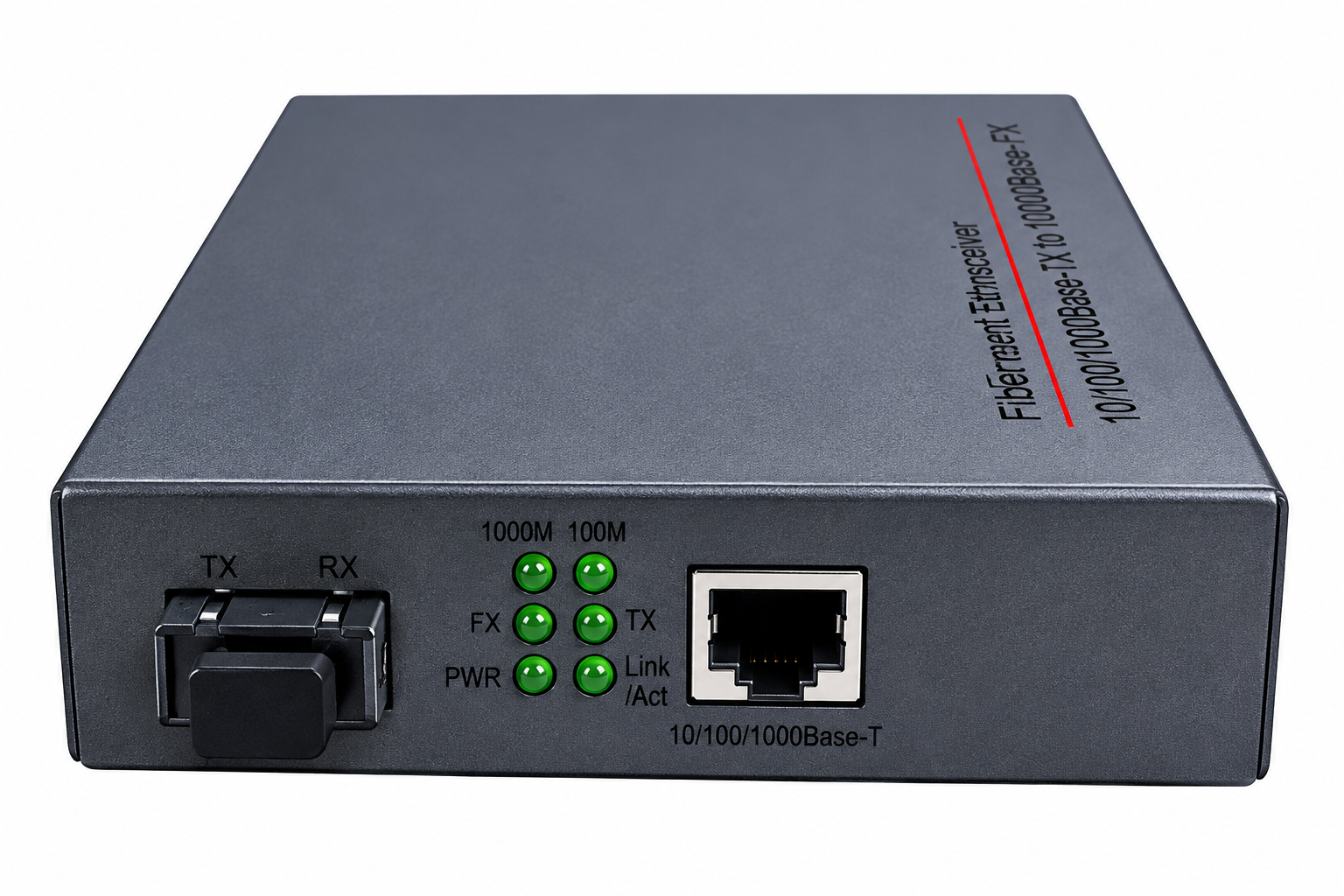

Media Converter DTMC-200 (Gigabit Ethernet to Fiber)
10/100/1000Mbps Gigabit Media Converter • Ethernet to Fiber • Plug & Play • Long Distance Transmission
The DTMC-200 Gigabit Ethernet Media Converter is a reliable and high-performance networking solution designed to convert Gigabit Ethernet signals into optical fiber transmission for long-distance communication. It is ideal for ISP, FTTH, enterprise LAN, campus networks, CCTV systems, telecom infrastructure, and industrial networking.
Supporting 10/100/1000Mbps auto-negotiation, IEEE networking standards, plug-and-play installation, and both single-mode and multi-mode fiber, the DTMC-200 ensures stable, secure, and efficient network expansion with minimal configuration.
Ethernet Speed
10/100/1000M
Fiber Port
SC / SFP
Transmission
Up to 100KM
Installation
Plug & Play
Key Features
✔ Supports 10/100/1000Mbps Gigabit Ethernet
✔ Converts Ethernet to Optical Fiber Transmission
✔ Supports Single-Mode & Multi-Mode Fiber
✔ Auto-Negotiation RJ45 Port
✔ Plug & Play Installation
✔ IEEE 802.3x Flow Control
✔ Supports Link Alarm Function
✔ Low Maintenance & Stable Network Performance
Technical Specifications
| Category | Specification |
|---|---|
| Model | DTMC-200 |
| Product Type | Gigabit Ethernet Media Converter |
| Application | Ethernet to Fiber Conversion (ISP, FTTH, LAN, Campus Networks) |
| Ethernet Port | 1 × RJ45 (10/100/1000 Mbps Auto-Negotiation) |
| Fiber Port | 1 × SC / SFP (1000 Mbps) |
| Supported Standards | IEEE 802.3ab (1000Base-T), IEEE 802.3z (1000Base-SX/LX) |
| Fiber Type | Single Mode / Multi Mode Fiber |
| Wavelength Options | 850nm / 1310nm / 1550nm |
| Transmission Distance | MM: 220m / 550m | SM: 10km – 100km |
| Duplex Mode | Full Duplex / Half Duplex |
| Flow Control | IEEE 802.3x (Full Duplex), Backpressure (Half Duplex) |
| Maximum Packet Size | 1600 Bytes |
| MDI / MDIX | Auto-Crossover Supported |
| Installation | Plug & Play |
| Link Alarm | Supported |
| LED Indicators | Power, FDX, FX, Link/ACT, 1000, 100 |
| RJ45 Cable | Cat5 / Cat5e UTP (Maximum 100m) |
| Fiber Compatibility | MM: 50/125µm, 62.5/125µm | SM: 9/125µm |
| Power Supply | External AC Power Adapter |
| Power Options | Internal / External Supported |
| Compliance | FCC Class A, CE |
| Safety | Commercial Environment Certified |
Applications
ISP Fiber Networks
FTTH Broadband Networks
Enterprise LAN
Campus Networks
Telecommunication Infrastructure
Industrial Ethernet
CCTV Fiber Transmission
Long Distance Fiber Extension
Note: Select the appropriate fiber type (Single Mode or Multi Mode), wavelength, transmission distance, and optical interface (SC or SFP) according to your network design requirements. For BiDi models, matched wavelength pairs must be used for proper communication.
