HSGQ-810P XPON MDU 8 Port SFP
| Warranty | 1 Year Warranty |
| Min. Order | Unit Price |
|---|---|
| 1 Set(1) | Rs 10,538.60 |
if defective or damaged
Seller warranty (if applicable)
Multiple options available

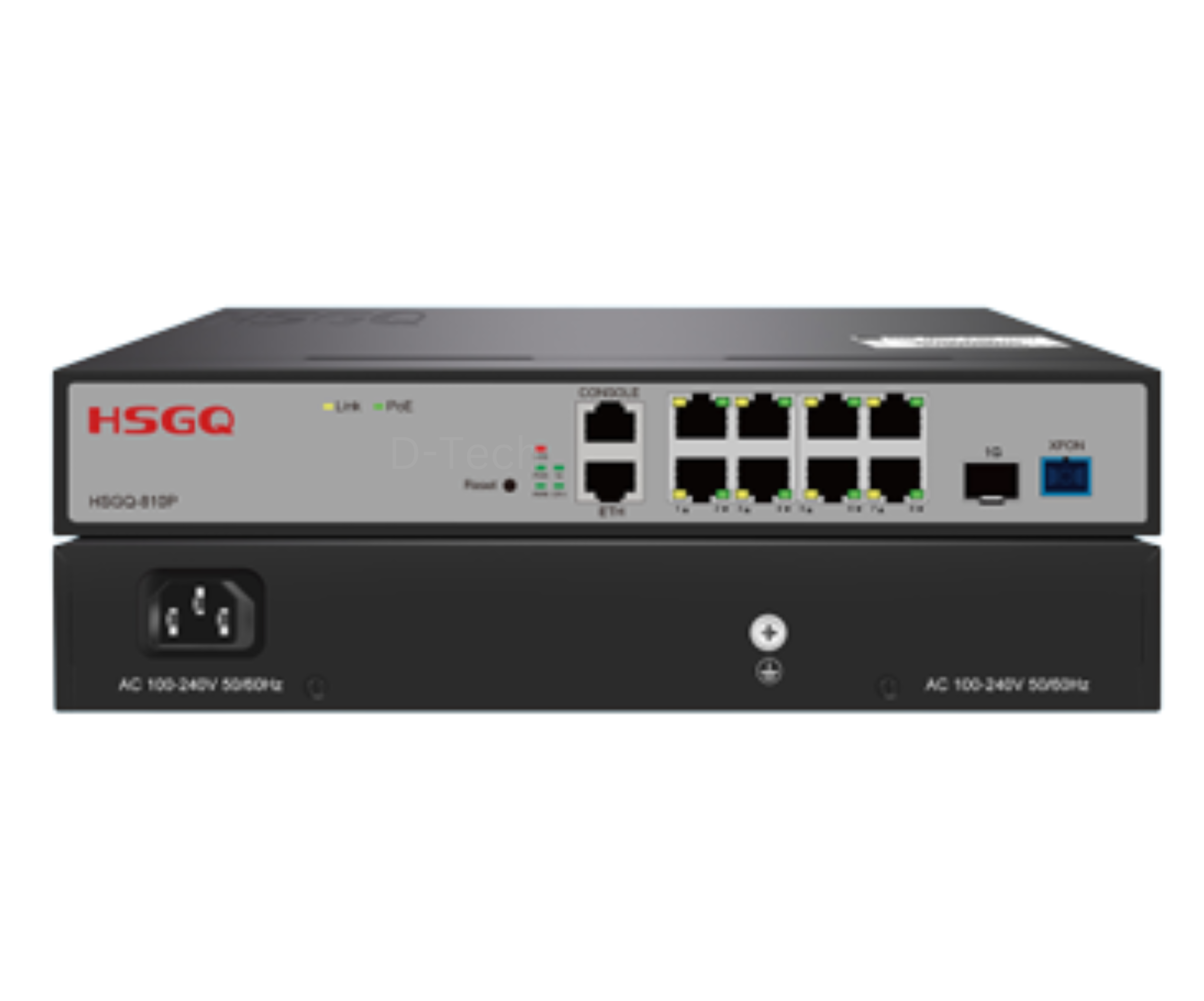

HSGQ-810P XPON 8-Port MDU PoE ONU
The HSGQ-810P XPON 8-Port MDU PoE ONU is an industrial-grade Multi-Dwelling Unit (MDU) designed for GPON and EPON fiber access networks. It combines high-speed XPON connectivity with 8 Gigabit Ethernet ports, optional PoE output, and an additional 1.25G SFP uplink slot, making it an ideal solution for surveillance, FTTH, FTTB, campuses, and smart city deployments.
Supporting PX20+ optical transmission, IEEE 802.1Q VLAN, QoS, IGMP Snooping, IPv4/IPv6, remote OLT management, and industrial lightning protection, the HSGQ-810P delivers reliable and secure optical network performance even in demanding outdoor and industrial environments.
Quick Specifications
Key Features
- GPON / EPON adaptive ONU
- 8 × 10/100/1000 Mbps Gigabit RJ45 ports
- 1 × 1.25G SFP slot
- Supports 8 PoE ports or Non-PoE version
- 30W maximum output per PoE port
- 120W total PoE budget
- PX20+ optical transmission class
- IEEE 802.1Q VLAN & Multicast VLAN
- QoS with DBA, CoS, WR/SP Scheduling
- IGMP Snooping multicast support
- IPv4 / IPv6 networking
- Loop Detection & Storm Control
- Industrial metal enclosure
- OLT remote management & local console
Applications
Video Surveillance
Power and connect multiple IP cameras over fiber using integrated PoE ports.
Smart City
Suitable for intelligent transportation systems, roadside cabinets, and public infrastructure.
FTTH / FTTB
Provides fiber access and Gigabit Ethernet distribution for residential and commercial buildings.
Industrial Networks
Reliable optical access for factories, campuses, warehouses, and outdoor networking environments.
Technical Specifications
| Category | Specification |
|---|---|
| Model | HSGQ-810P |
| Product Type | XPON MDU (GPON/EPON Adaptive ONU) |
| Application | Video Surveillance, Smart City, Smart Transport, FTTH / FTTB |
| User Interface | 8 × 10/100/1000M RJ45 + 1 × 1.25G SFP Slot |
| PoE Ports | 8 × PoE Ports / Non-PoE Version |
| PoE Voltage | 54V DC |
| PoE Power | 30W per Port / 120W Total |
| PON Interface | 1 × GPON / EPON Adaptive |
| Optical Class | PX20+ |
| GPON Speed | Upstream 1.25 Gbps / Downstream 2.5 Gbps |
| GPON TX Power | 0 ~ +4 dBm |
| GPON RX Sensitivity | -7 to -28 dBm |
| EPON Speed | Upstream 1.25 Gbps / Downstream 1.25 Gbps |
| EPON TX Power | 0 ~ +4 dBm |
| EPON RX Sensitivity | -7 to -27 dBm |
| Lightning Protection | RJ45: CM 4KV / DM 2KV |
| Dimensions | 286 × 192 × 44 mm |
| Power Supply | AC 100–240V |
| Power Consumption | 10W (excluding PoE) |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +80°C |
| Humidity | 10%–90% (Operating), 5%–95% (Storage) |
| Enclosure | Industrial Metal Case |
Network Features
| Feature | Details |
|---|---|
| VLAN | IEEE 802.1Q VLAN, Multicast VLAN |
| QoS | DBA, IEEE 802.1p, CoS, WR/SP Scheduling |
| Multicast | IGMP Snooping |
| Flow Control | IEEE 802.3x |
| Loop Detection | Supported |
| Storm Control | Broadcast Storm Suppression |
| IP Support | IPv4 / IPv6 |
| Management | OLT Remote Management + Local Console |
Installation Recommendation
Install the HSGQ-810P inside a properly ventilated communication cabinet using quality Single Mode Fiber. Connect the ONU to a compatible GPON/EPON OLT and configure VLAN, QoS, and multicast settings according to the network design. When using the PoE model, ensure that the total connected PoE load does not exceed the 120W power budget. Its industrial metal enclosure and wide operating temperature range make it suitable for indoor and semi-outdoor deployments in surveillance, transportation, and FTTH applications.
