Audio to fiber converter XLR port
1CH Forward
Brand:
D-TECH
Variant Specifications
Warranty:
Weight:
Country of Origin:
More Details:
Import Lead Time:
Package:
Available options
.jpg){kind=small}
4CH Bidirectional
4CH Forward
2CH Forward
8CH Forward
1% OFF
Rs 10,965.32
List: Rs 11,096.46

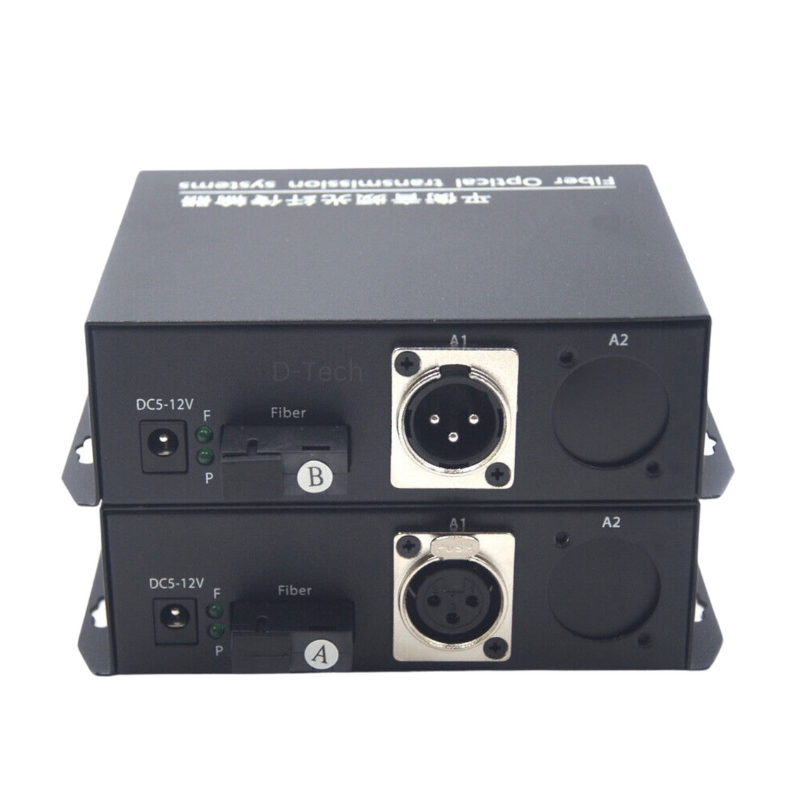

Balanced Audio Optical Transceiver – 1 Channel Forward
The 1CH Forward Balanced Audio Optical Transceiver is designed for high-quality, one-way audio transmission over fiber optic networks. Using advanced digital uncompressed technology, it ensures real-time, distortion-free signal delivery over long distances, making it ideal for security systems, broadcasting, and intelligent transport applications.
Key Features
| 1-channel forward (one-way) audio transmission over fiber |
| All-digital uncompressed transmission for zero distortion |
| Long-distance transmission up to 20 km |
| Professional balanced XLR audio interface |
| Plug-and-play operation, no configuration required |
| LED indicators for power and link status monitoring |
| Robust aluminum alloy housing for industrial environments |
Technical Specification
| Category | Specification |
|---|---|
| Product Type | Audio Optical Transceiver |
| Channel | 1 Channel Forward (Tx → Rx) |
| Transmission Type | Digital Uncompressed Optical Transmission |
| Application | Audio over Fiber (Security, Broadcast, ITS) |
| Transmission Distance | Up to 20 km |
| Fiber Type | Single Mode (9/125 µm) |
| Wavelength | 1310 nm / 1550 nm |
| Optical Output Power | -8 to +3 dBm |
| Receiver Sensitivity | -14 to -17 dBm |
| Fiber Connector | FC / SC / ST (Optional) |
| Audio Interface | XLR (Balanced) |
| Audio Impedance | 600 Ohm |
| Max Audio Voltage | 3.0 Vp-p |
| Frequency Response | 10 Hz – 3 kHz |
| Total Harmonic Distortion | < 0.05% |
| Signal-to-Noise Ratio | > 95 dB |
| Transmission Technology | All-digital, real-time, no distortion |
| Optical Technology | Gigabit Fiber Transmission |
| Indicators | LED Status (Power / Link) |
| Adjustment | No On-site Tuning Required |
| Installation | Standalone or Rack Mount |
| Casing Material | Aluminum Alloy |
| Power Supply | AC 220V |
| Operating Temperature | -35°C to +70°C |
| Humidity | 0% – 95% (Non-condensing) |
XLR Port -OFC
