P624 (2*400G Muxponder)

P624 (2*400G Muxponder)

Overview:

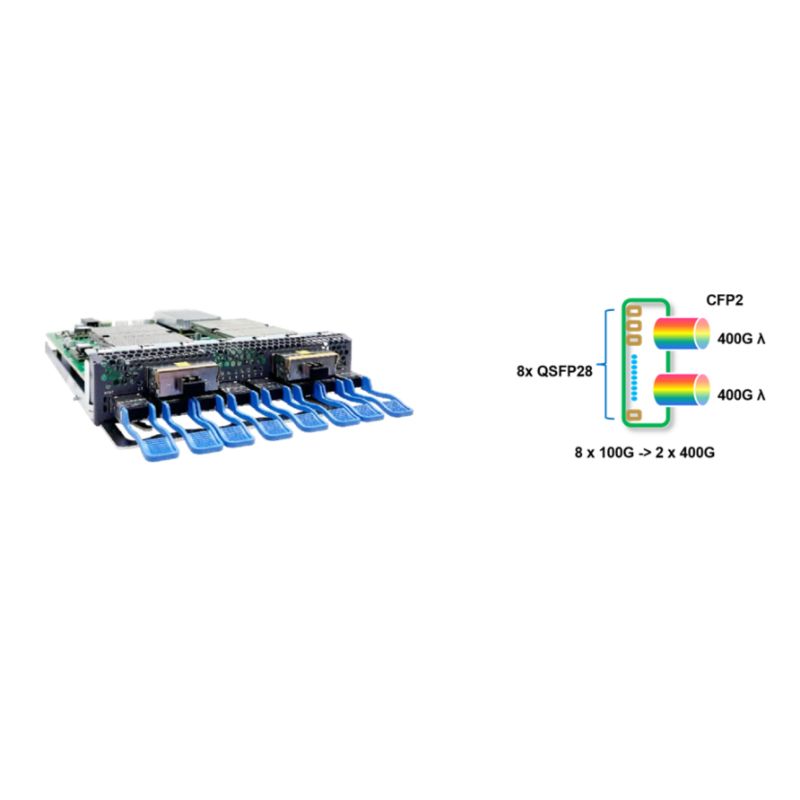

The 2*400G Muxponder service card (P624) launched by D tech trading supports mapping 8x100G optical signals received on the client side into 2 OTUC4 signals and interconverting OTUC4 signals with optical signals of WDM wavelengths conforming to ITU-T standards. The line side adopts pluggable CFP2-DCO to achieve ultra-long distance transmission based on advanced technologies such as coherent detection.

Application:

  • Suitable for transmission over metropolitan networks and long-distance networks up to 600 km  Suitable for high-capacity DCI network transmission for enterprises, campuses, cloud computing, etc.
  •  Suitable for 400G links in existing OTN/DWDM infrastructures

Product Specifications:

Parameter Description
2*400G Muxponder (P624)
Function 2 slots
Client side Support 8x100G service signals mapping to 2 OTUC4 signals
Slot number
Line side
  - 2 CFP2 optical ports: using 400G CFP2-DCO module, pluggable
  - Support wavelength adjustable, range covers 191.35~196.1 THz
  - Support adjustable light-emitting power
  - Support 100G/200G/400G rate adjustable
  - Support single fiber bidirectional transmission (optional)
  Support 8 QSFP28 modules hot-pluggable
OTN function
  - Frame format and overhead handling using ITU-T G709 recommendations
  - ODUk (k=4, C4) layer support PM and other functions
  - OTUk (k=C4, C4) layer support SM functions
Support services 100GE, 100GE FlexE(Unware), OTU4
Time delay measurement Online delay measurement based on ODU layer
Loopback Support line side and client-side loopbacks
LLDP Ethernet Support
Protection function No client-side sensing during protection reversal if with optical protection board (optional)
Performance monitoring and alarm monitoring
  - Support OTN performance monitoring and alarm monitoring functions
  - Support optical module temperature, current, optical power monitoring, etc.
  - Support Ethernet RMON monitoring
  - Support Telemetry
