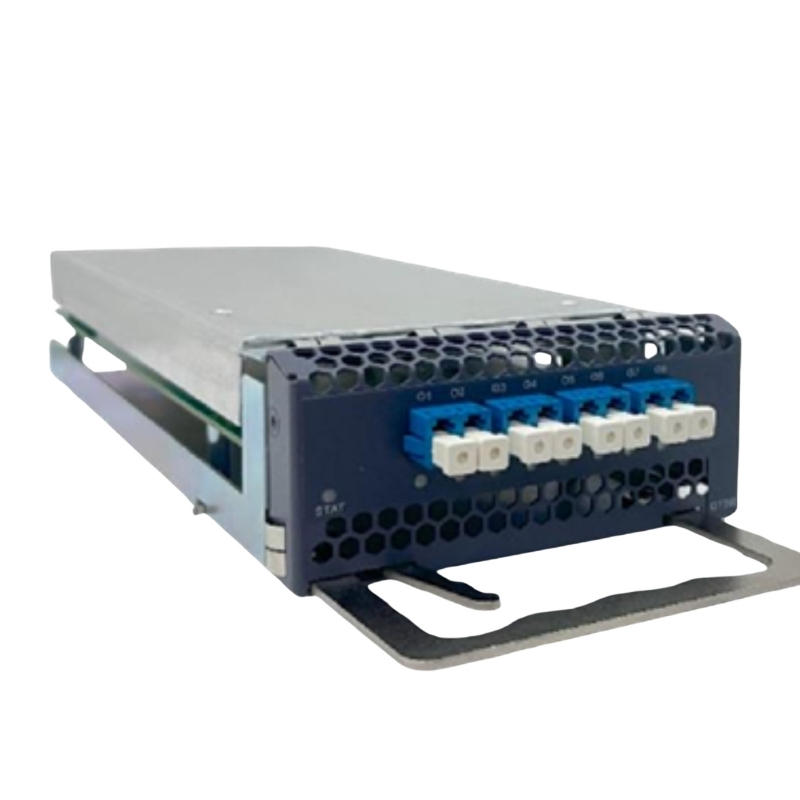

OCM (Optical Channel Monitoring Card)
Pack Contains: pc(1)
OFC Passive Devices
Loading...
Loading variant details...
Variant Specifications
Try our secure checkout with Connect IPS QR
Pay.
-0.00% Rs1.00
List Price:Rs1.00 now per pc(1)
Checking delivery availability...
Checking for Featured Offer...
The optical channel monitoring card (OCM) launched by D Tech Trading is mainly used to analyze the performance of the MUX signal spectrum, channel optical power, wavelength and other transmission signals in the wavelength range of 1528nm1567nm of DWDM system. It has the characteristics of high stability, high sensitivity, accuracy, high dynamic range and short scanning time. It is an indispensable and important part of optical performance monitoring in DWDM system.
Application case:
- Suitable for end-to-end monitoring of optical performance
Product Specification;
| Specification | Value |
|---|---|
| Function | It supports the testing of central wavelength, optical power, and other parameters of each channel in the MUX optical signal |
| Slot number | 1 slot |
| Port | Provides 8 test interfaces (selected by optical switch) which can be connected to 8-core MUX optical signal test |
| Working wavelength range | 1528.57 nm ~ 1567.34 nm (191.27 THz ~ 196.15 THz) |
| Channel spacing | 50/100 GHz, supports Flexible Grid |
| Center wavelength detection accuracy | ±0.1 nm |
| Central wavelength resolution | 0.02 nm |
| Channel power monitoring range | -40 dBm ~ -10 dBm |
| Absolute power accuracy | ≤1 dB |
| Relative power accuracy | ±0.8 dB |
| Optical power resolution | 0.1 dB |
| Return loss | ≥40 dB |
| Scanning time | ≤1 s |
| Scanning times | >(10)^9 |
