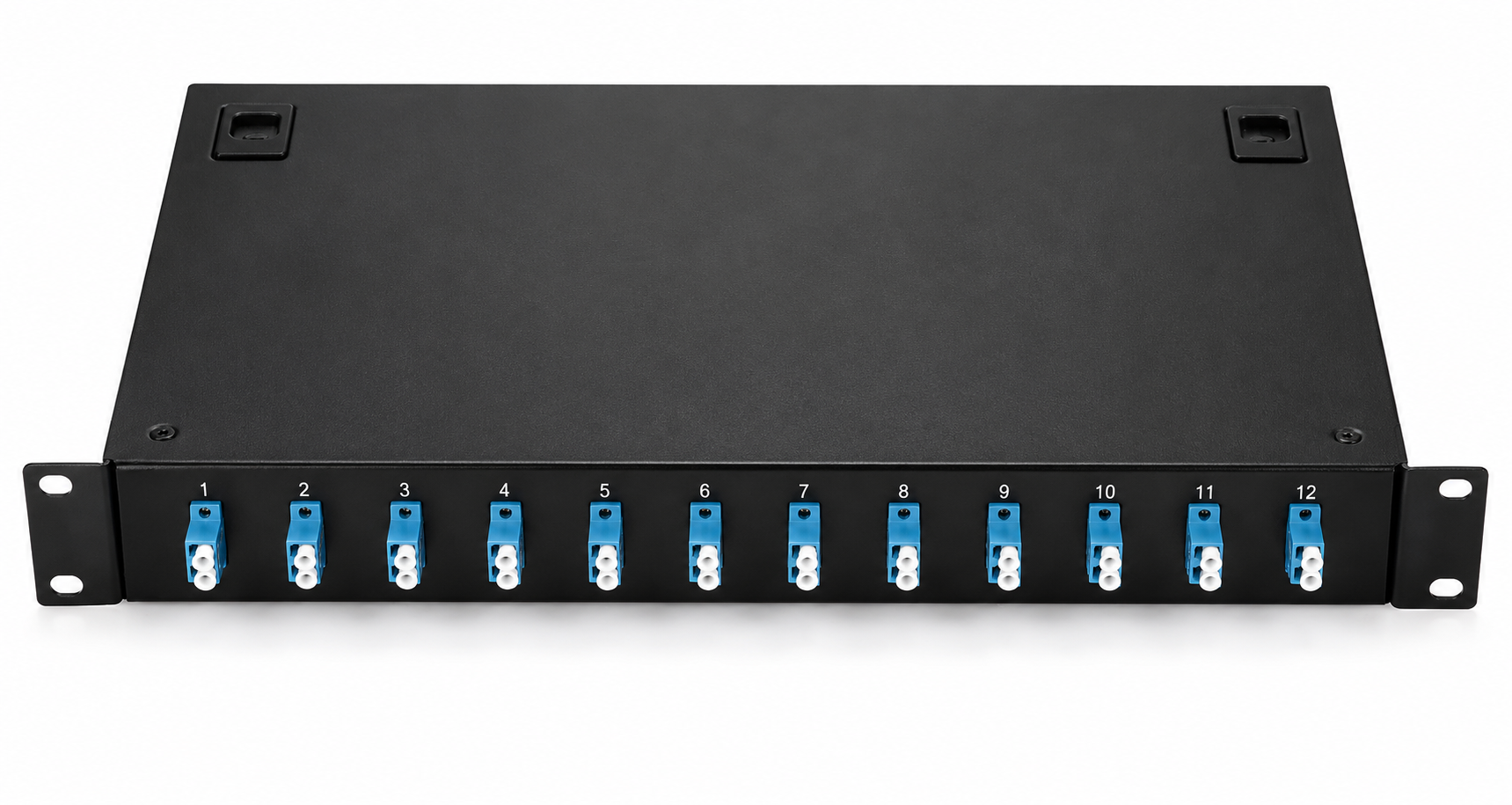

LC UPC - Loaded
Technical Details
| Warranty | 295-TRIAL-1 year 24 |
Rs 11,046.09
-1%
M.R.P. Rs 11,178.54
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Set(1) | Rs 11,046.09 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
Fiber Patch Panel (ODF)
SC • LC • FC • UPC / APC • 1U Rack Mount Fiber Distribution Frame
The Fiber Patch Panel (ODF) is designed for fiber termination, splicing, storage, and distribution in FTTH, ISP, telecom, enterprise, and data center networks. The modular design supports SC, LC, and FC adapters with both UPC and APC connector options.
Rack Size
1U
Capacity
24 Core
Adapter Type
SC / LC / FC
Installation
19" Rack
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | Rack Mount Fiber Patch Panel (ODF) |
| Application | Fiber Termination, Splicing & Distribution |
| Mounting Type | 19" Rack / Cabinet Mount |
| Rack Height | 1U |
| Width | 19 Inch Standard |
| Depth | 300 mm |
| Maximum Capacity | Up to 24 Core (Higher Density Available) |
| Adapter Types | FC, SC Simplex, LC Duplex |
| Connector Polish | UPC / APC |
| Material | High Quality Steel |
| Surface Finish | Electrostatic Powder Coating |
| Material Thickness | 1.2 mm |
Structure & Design
| Parameter | Details |
|---|---|
| Structure | Rotating Tray Design for Easy Maintenance |
| Splice Tray | Included for Fiber Splicing & Storage |
| Cable Entry | Rear Cable Entry |
| Patch Cord Output | Front / Right Side Access |
| Access Type | Full Front Access |
| Panel Type | Modular Adapter Panel |
| Rack Stability | Anti-Movement Fixed Mount Design |
| Installation | Easy Installation in Compact Rack Spaces |
| Customization | Custom Design Available |
Environmental Conditions
| Parameter | Value |
|---|---|
| Operating Temperature | -5°C to +60°C |
| Humidity | ≤ 90% at 30°C |
| Air Pressure | 70 kPa – 106 kPa |
| Protection | Safe Enclosure for Adapters, Pigtails & Fibers |
Available Variants:

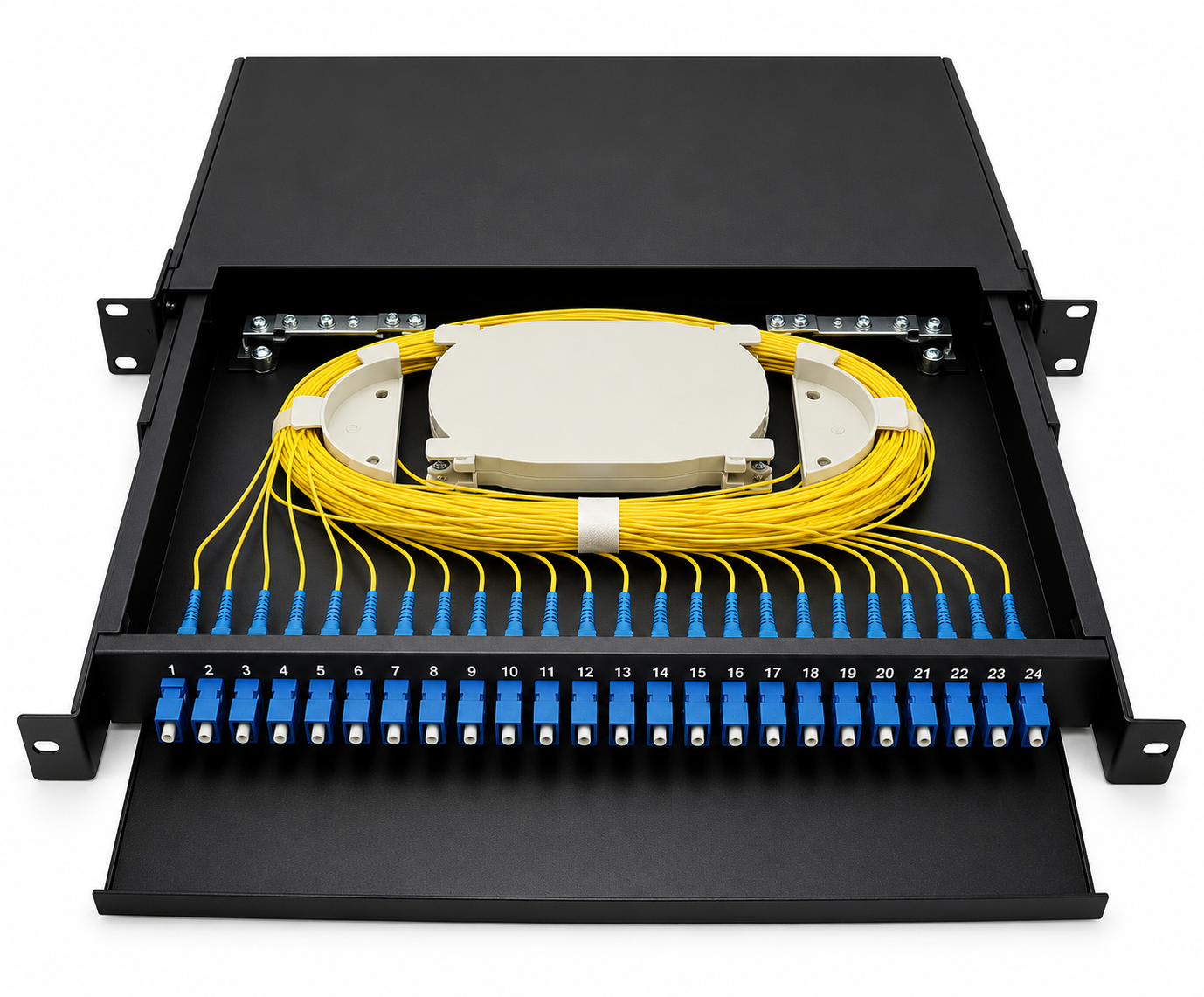

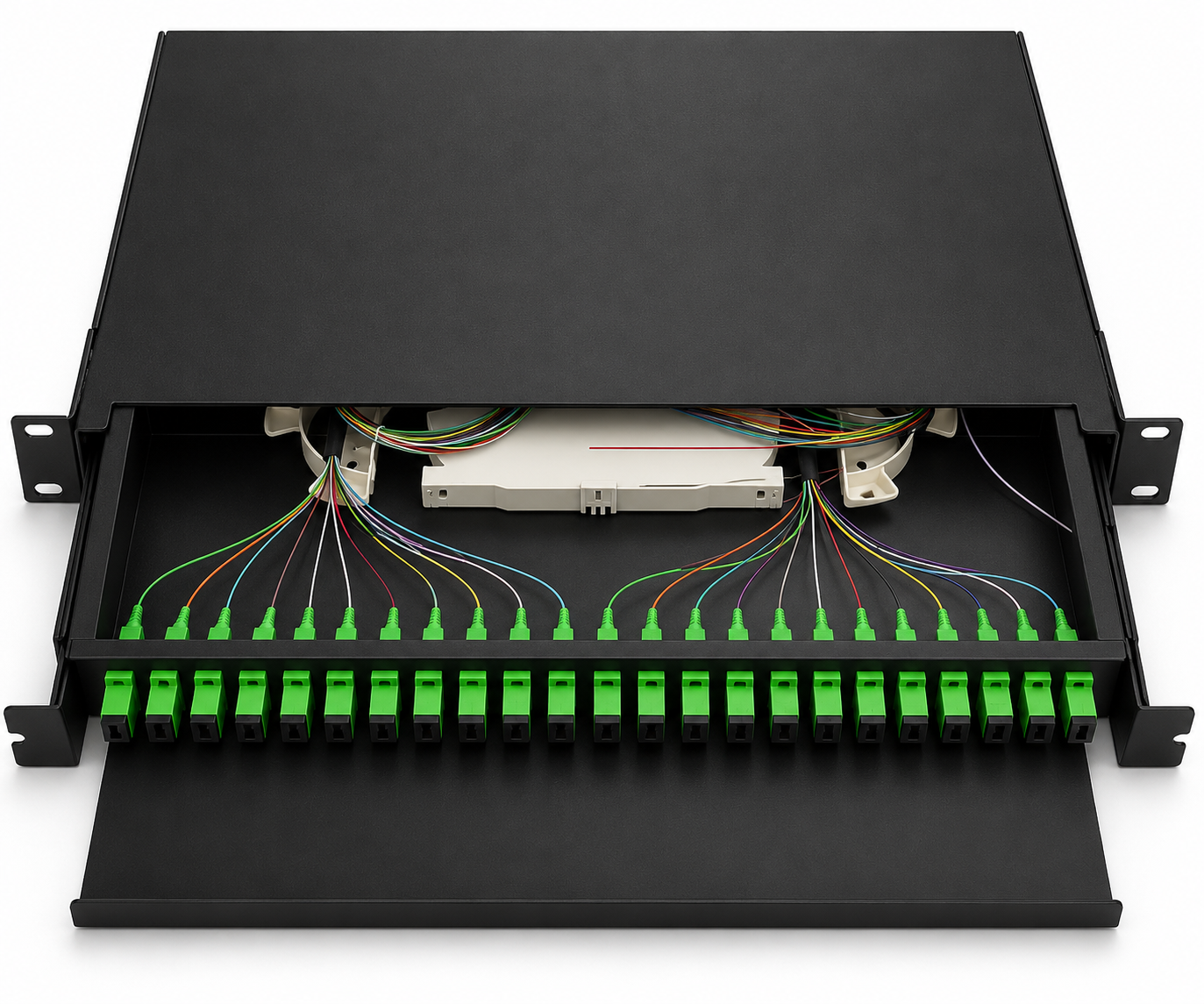

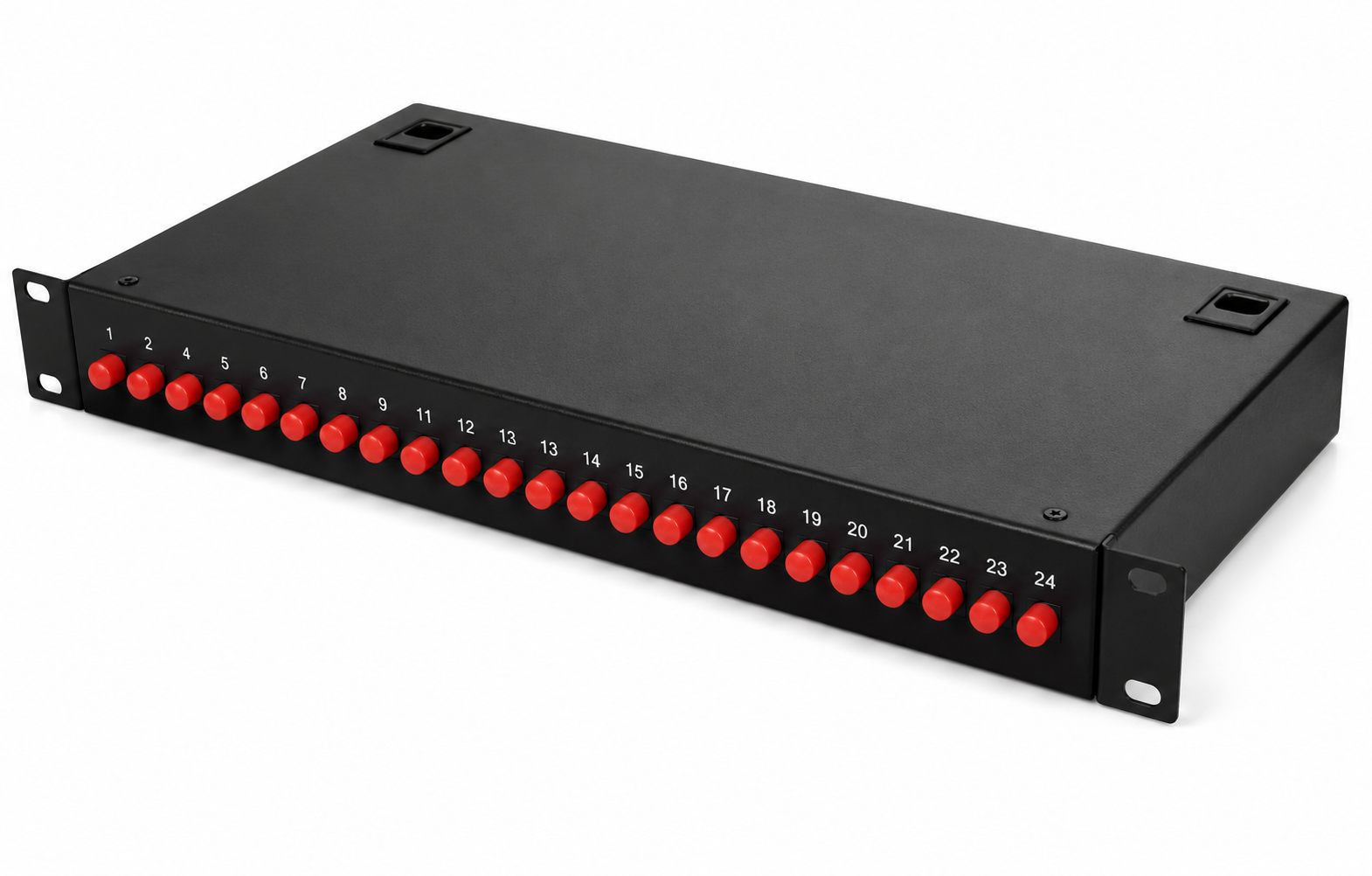

SC UPC • SC APC • LC UPC • LC APC • FC UPC • FC APC • 12 Core • 24 Core • Rack Mount ODF • Sliding ODF • Rotating ODF
SC UPC • SC APC • LC UPC • LC APC • FC UPC • FC APC • 12 Core • 24 Core • Rack Mount ODF • Sliding ODF • Rotating ODF
Ask a question
Questions & answers
0 question(s)No questions yet. Be the first to ask!
0.0
5★
0
4★
0
3★
0
2★
0
1★
0
Write a review
Sign in to reviewCustomer reviews
No reviews yet. Be the first to review this product.

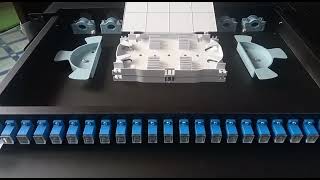

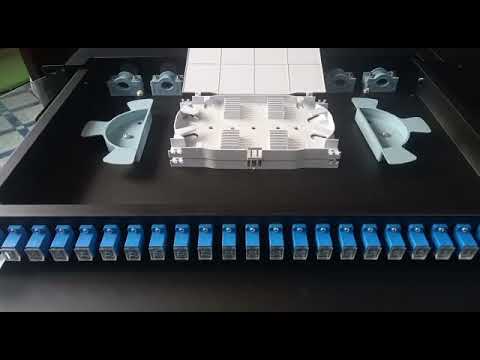

Fiber Optic ODF 24 core and 48 core in Nepal
