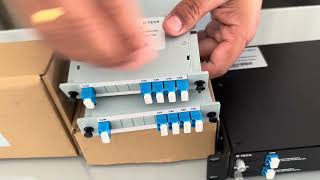

4 Channel DWDM Fiber Mux Demux in Cassete Type
Visit the D-TECH Store
-0%
Rs
22,000
.00
M.R.P.: Rs 22,000.00
Exclusive of all taxes
Variation:
RX: C25-C28/ TX:C53-C56, LC/UPC
Rs 22,000.00
-0%
M.R.P. Rs 22,000.00
Excl. taxes
| Min. Order | Unit Price |
|---|---|
| 1 Pc(1) | Rs 22,000.00 |
Trade Assurance
Built-in order protection
In Stock
FREE Delivery on eligible orders
Select a city to check delivery
Supplier Info
D-TECH
Verified Supplier
4.8 / 5.0 Response Rate
7-Day Returns
if defective or damaged
if defective or damaged
Warranty
Seller warranty (if applicable)
Seller warranty (if applicable)
Secure Payment
Multiple options available
Multiple options available
PASSIVE DWDM SOLUTION
4 Channel DWDM MUX / DEMUX
Reverse Channel Mapping • 100GHz ITU-T Grid • LC/UPC • Single Mode
Product Overview
The 4 Channel DWDM MUX / DEMUX is a passive optical device designed to combine multiple DWDM wavelengths onto a single optical fiber and separate them again at the receiving end.
This version uses Reverse Channel Mapping, making it suitable for bidirectional optical transmission in ISP networks, metro networks, data centers and fiber backbone infrastructure.
CHANNELS
4 Channel
CHANNEL SPACING
100 GHz
CONNECTOR
LC / UPC
FIBER TYPE
Single Mode
Key Features
✓ 4-channel passive DWDM MUX / DEMUX
✓ Reverse channel mapping configuration
✓ 100GHz ITU-T channel spacing
✓ LC / UPC optical interface
✓ Low insertion loss
✓ No external power required
Technical Specifications
| Parameter | Specification |
|---|---|
| Device Type | Passive DWDM MUX / DEMUX |
| Channel Count | 4 Channel |
| Channel Configuration | Reverse Channel Mapping |
| Form Factor | Cassette Type / Rack Mount Compatible |
| Channel Spacing | 100 GHz (ITU-T Grid) |
| Connector Type | LC / UPC |
| Fiber Type | Single Mode Fiber (G.652D / OS2) |
| Insertion Loss | ≤ 2.5 dB (Typical) |
| Isolation | ≥ 30 dB |
| Return Loss | ≥ 45 dB |
| Directivity | ≥ 50 dB |
| Operating Temperature | -5°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Packaging | ABS Cassette Module |
How DWDM MUX / DEMUX Works
MUX → Single Fiber → DEMUX
The MUX combines four different optical wavelengths onto a common fiber. At the opposite side, the DEMUX separates those wavelengths and routes each channel to its corresponding optical interface.
Applications
ISP Networks
Metro Networks
Data Centers
Fiber Backbone
Long-Distance Fiber Links
DWDM Transmission Systems
Important – Reverse Channel Mapping
This model uses reverse channel mapping. Confirm the DWDM channel numbers and corresponding wavelengths on both sides of the fiber link before installation.
