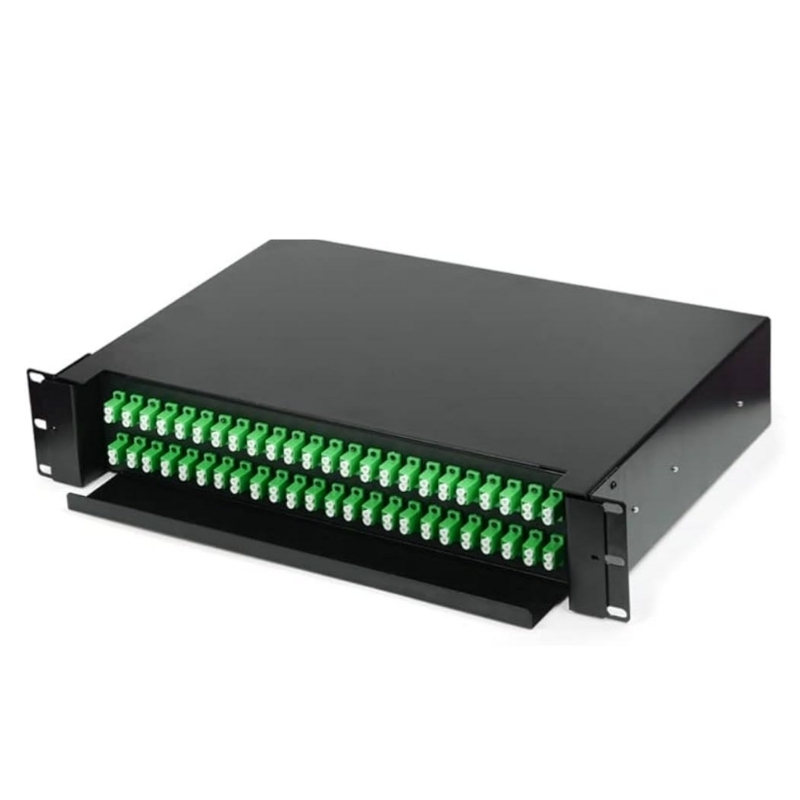

The Patch Panel ODF 48 Cores by D-TECH is a versatile distribution point for modern optical networks. It is engineered to organize, protect, and provide convenient access to fiber strands used in backbone, access and FTTH distribution. The unit accepts factory-loaded adapters (SC/LC, UPC/APC) so you can specify the connector type that matches your project. Internally, it provides splice tray area, cable entry with gland options, and routing guides to maintain minimum bend radii and prevent fiber stress. Designed for easy installation into standard 19" racks or secure wall mounting, the ODF is suitable for telecommunications rooms, ISP POPs, data centers, campus networks and large building deployments.
Technical specifications
| Specification | Details |
|---|
| Model / SKU | Patch Panel ODF 48 Cores |
| Fiber capacity | 48 cores |

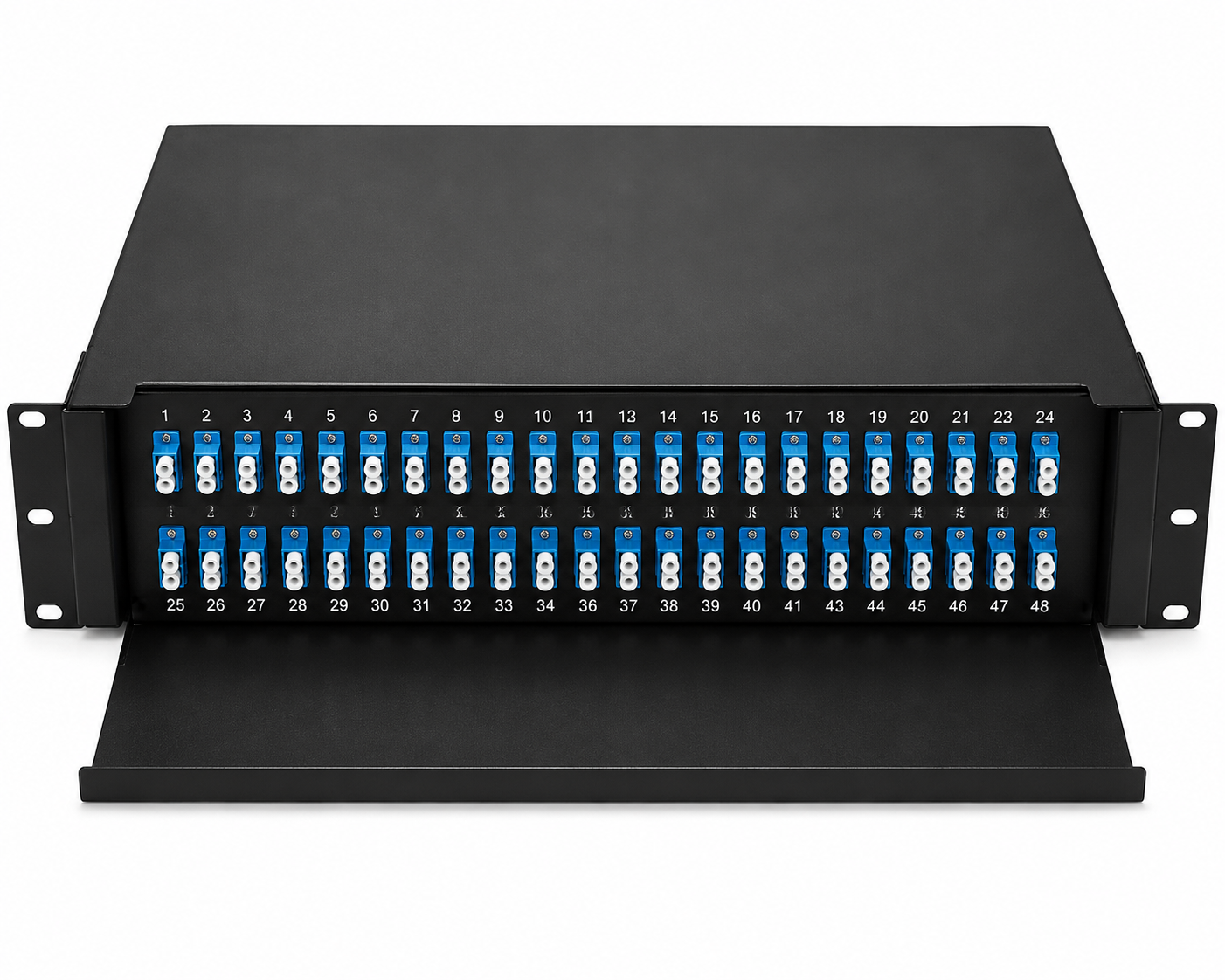

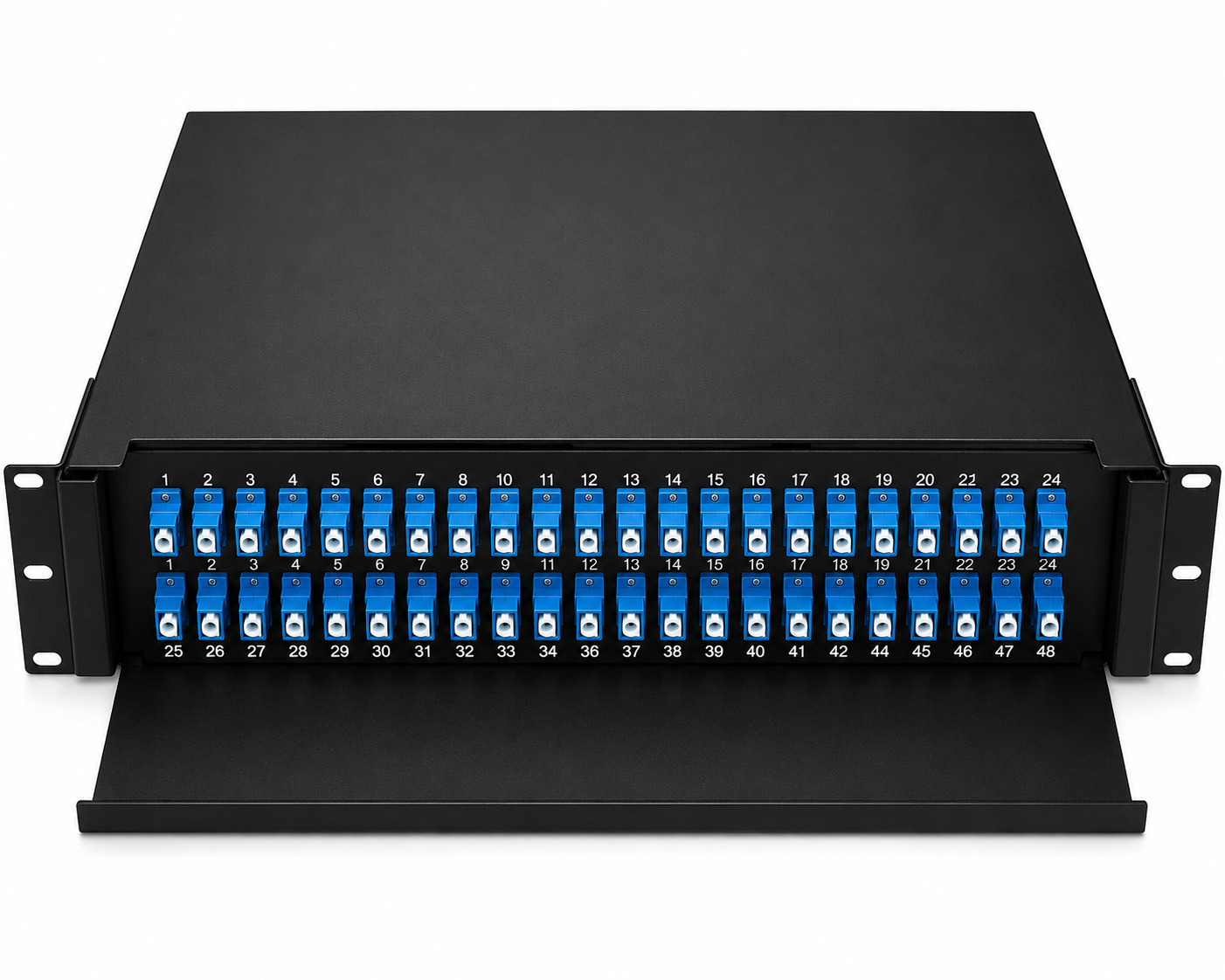

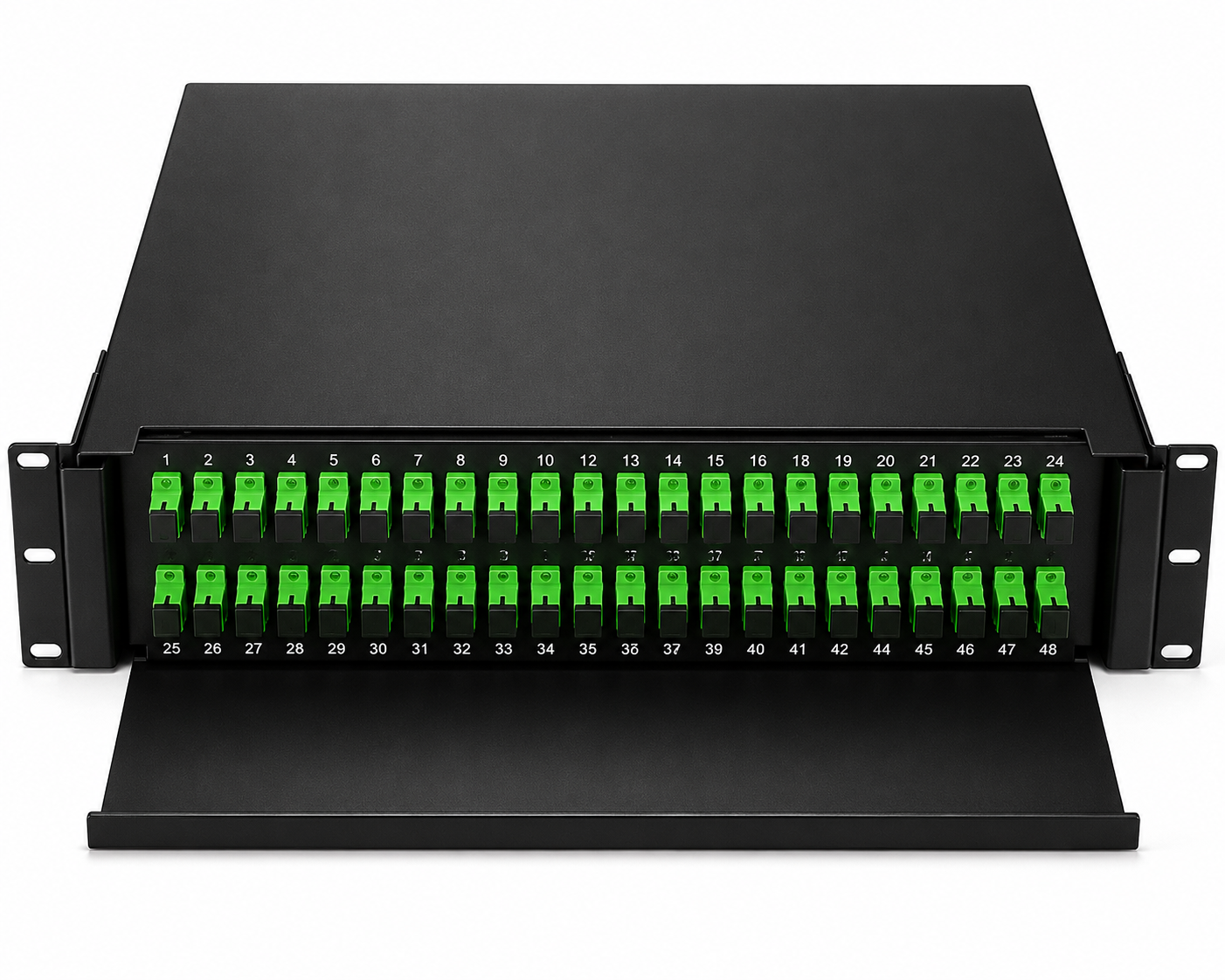

| Adapter options | SC UPC (loaded), SC APC (loaded), LC UPC (loaded). |
| Material | Steel body with powder coating (typical) |
| Mounting | 19" rack mount / wall mount |
| Splice tray | Included (capacity for fusion splices) |
| Cable entry | Rear entry with glands / cable tie points |
| Warranty | 1 Year (seller warranty / manufacturer warranty as applicable). |
| Country of origin | China. |
| Delivery (if import required) | 30–40 days by road. |
| Returns | 7-day replacement policy. |
