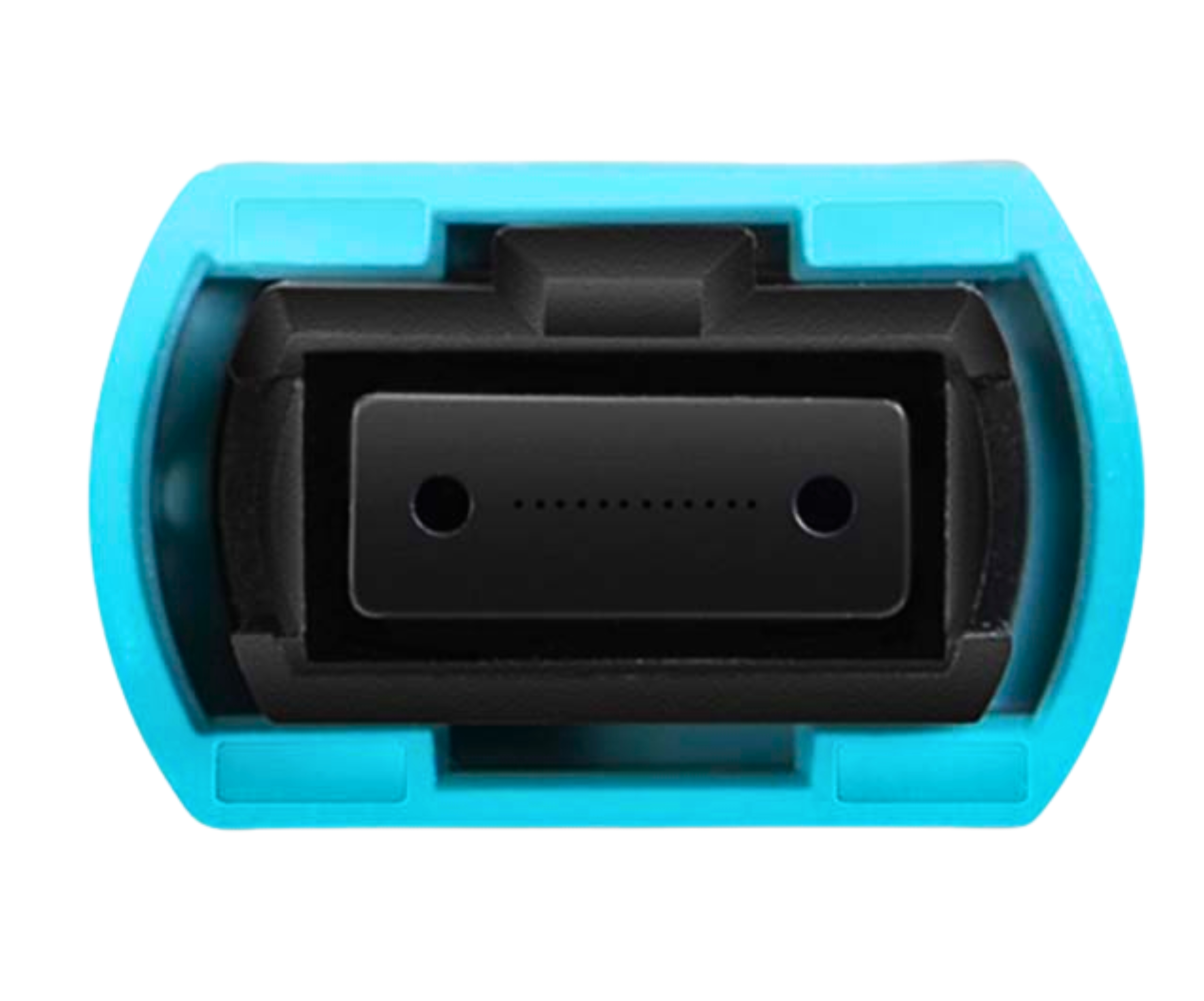

MPO Connector 12 PIN
High-Density Multi-Fiber Optical Connector • 40G / 100G / 200G / 400G Networks
The MPO (Multi-Fiber Push-On) Connector is a high-density optical connector designed for modern data centers, telecom networks, cloud infrastructure, and high-performance computing environments. Supporting up to 48 fibers in a single connector, MPO technology significantly reduces cable space while increasing network capacity and deployment efficiency.
The 12-Fiber MPO Connector is one of the most widely used solutions for 40G, 100G, 200G, and 400G Ethernet applications, providing fast deployment, simplified cable management, and superior optical performance.
Fiber Count
12 Core
Connector Type
MPO
Supported Speed
400G+
Durability
500+ Cycles
Key Features
✔ High-density multi-fiber optical connectivity
✔ Supports 8, 12, 24, 32 and 48 fiber configurations
✔ Compatible with OS2, OM3, OM4 and OM5 fiber
✔ Push-pull design for quick installation
✔ Low insertion loss and excellent optical performance
✔ Supports 40G, 100G, 200G and 400G networks
✔ Ideal for data centers and high-speed backbone networks
✔ Available in Male and Female versions
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | Multi-Fiber Optical Connector (MPO) |
| Full Form | Multi-Fiber Push-On |
| Fiber Count | 8 / 12 / 24 / 32 / 48 Fibers |
| Connector Type | MPO Male (With Pins) / MPO Female (Without Pins) |
| Fiber Type | OS2 Single Mode / OM3 / OM4 / OM5 Multimode |
| Interface Type | Push-Pull High Density Interface |
| Ferrule Type | MT Multi-Fiber Ferrule |
| Alignment Method | Guide Pins (Male) / Guide Holes (Female) |
| Insertion Loss | ≤ 0.35 dB (Typical Low Loss) |
| Return Loss | ≥ 20 dB (MM) / ≥ 60 dB (SM APC) |
| Polarity | Type A / Type B / Type C |
| Connector Color | Aqua, Green, Beige and Other Standard Colors |
| Supported Speed | 40G / 100G / 200G / 400G+ |

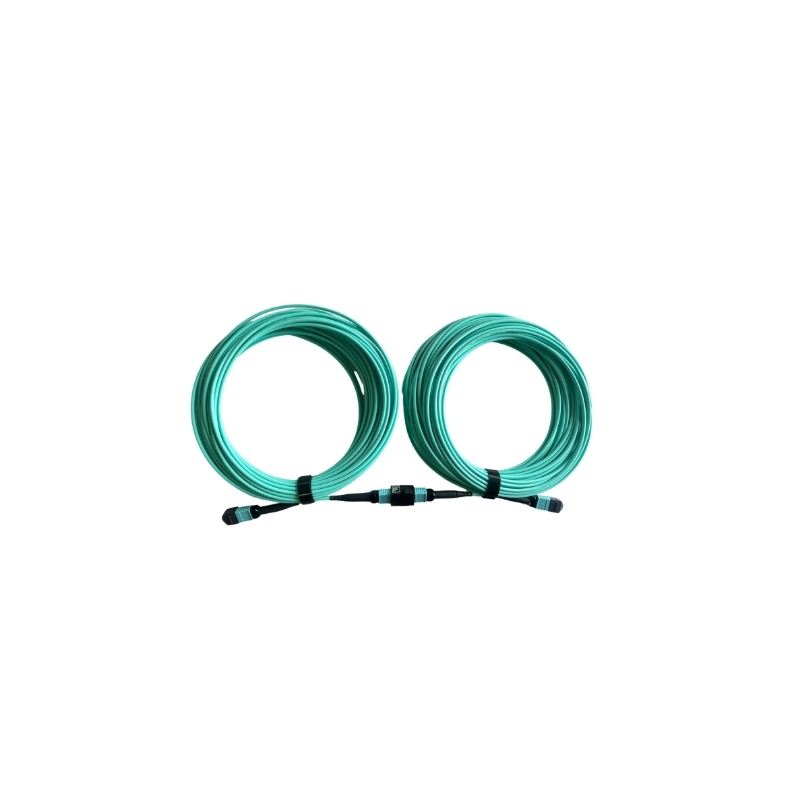

| Cable Type | MPO Trunk, MPO Breakout, MPO Harness Cable |
| Standard Compliance | IEC 61754-7, TIA/EIA-604-5 (FOCIS 5) |
| Operating Temperature | -40°C to +75°C |
| Durability | ≥ 500 Mating Cycles |
Supported Applications
Data Centers
40G Ethernet
100G Ethernet
200G Ethernet
400G Ethernet
Telecom Networks
Cloud Infrastructure
High Performance Computing (HPC)
Available Options:
MPO 8 Core • MPO 12 Core • MPO 24 Core • MPO 32 Core • MPO 48 Core • Male & Female Connectors • OS2 Single Mode • OM3 / OM4 / OM5 Multimode
MPO 8 Core • MPO 12 Core • MPO 24 Core • MPO 32 Core • MPO 48 Core • Male & Female Connectors • OS2 Single Mode • OM3 / OM4 / OM5 Multimode
