MPO Connector
Variant Specifications

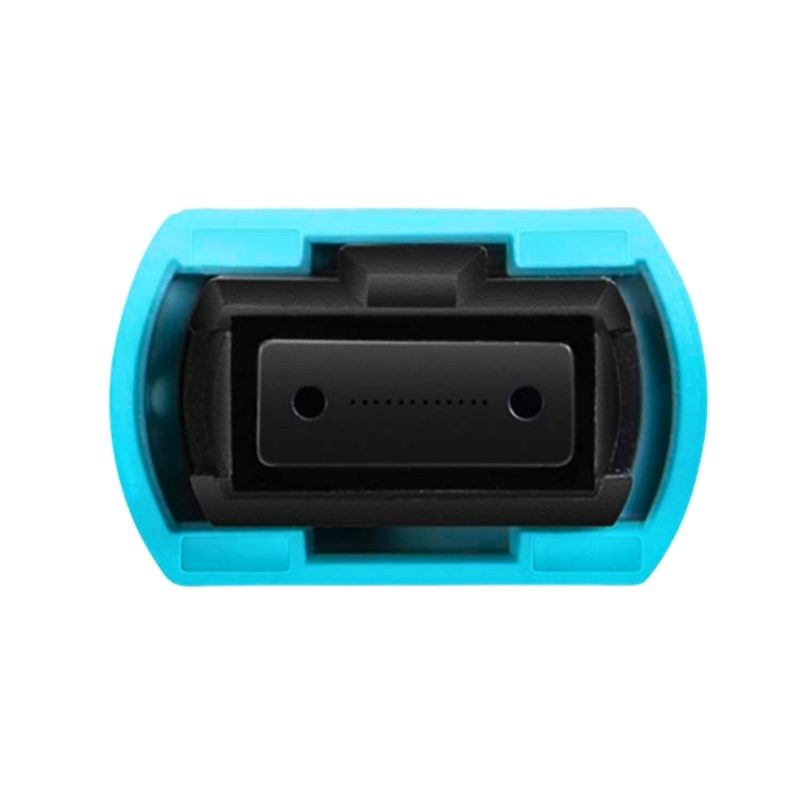

MPO Connector 12 PIN
High-Density Multi-Fiber Optical Connector • 40G / 100G / 200G / 400G Networks
The MPO (Multi-Fiber Push-On) Connector is a high-density optical connector designed for modern data centers, telecom networks, cloud infrastructure, and high-performance computing environments. Supporting up to 48 fibers in a single connector, MPO technology significantly reduces cable space while increasing network capacity and deployment efficiency.
The 12-Fiber MPO Connector is one of the most widely used solutions for 40G, 100G, 200G, and 400G Ethernet applications, providing fast deployment, simplified cable management, and superior optical performance.
Key Features
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | Multi-Fiber Optical Connector (MPO) |
| Full Form | Multi-Fiber Push-On |
| Fiber Count | 8 / 12 / 24 / 32 / 48 Fibers |
| Connector Type | MPO Male (With Pins) / MPO Female (Without Pins) |
| Fiber Type | OS2 Single Mode / OM3 / OM4 / OM5 Multimode |
| Interface Type | Push-Pull High Density Interface |
| Ferrule Type | MT Multi-Fiber Ferrule |
| Alignment Method | Guide Pins (Male) / Guide Holes (Female) |
| Insertion Loss | ≤ 0.35 dB (Typical Low Loss) |
| Return Loss | ≥ 20 dB (MM) / ≥ 60 dB (SM APC) |
| Polarity | Type A / Type B / Type C |
| Connector Color | Aqua, Green, Beige and Other Standard Colors |
| Supported Speed | 40G / 100G / 200G / 400G+ |
| Cable Type | MPO Trunk, MPO Breakout, MPO Harness Cable |
| Standard Compliance | IEC 61754-7, TIA/EIA-604-5 (FOCIS 5) |
| Operating Temperature | -40°C to +75°C |
| Durability | ≥ 500 Mating Cycles |
Supported Applications
MPO 8 Core • MPO 12 Core • MPO 24 Core • MPO 32 Core • MPO 48 Core • Male & Female Connectors • OS2 Single Mode • OM3 / OM4 / OM5 Multimode
