PLC Splitter Cassette SC/APC
FTTH Optical Splitter • Cassette Type • Low Loss • SC/APC Connector
The PLC Splitter Cassette SC/APC is a high-performance passive optical splitter designed for FTTH, GPON, EPON, CATV, and optical distribution networks. Built with PLC (Planar Lightwave Circuit) technology, it delivers uniform optical signal distribution with low insertion loss, excellent stability, and high reliability.
Available in 1×2, 1×4, 1×8, and 1×16 configurations, the cassette splitter is housed in a compact ABS cassette or LGX box, making it ideal for ODFs, fiber distribution boxes, cabinets, and rack-mounted installations.
Configuration
1×2 ~ 1×16
Connector
SC/APC
Fiber Type
SM G.657A1
Wavelength
1260–1650nm
Key Features
✔ PLC Technology for Uniform Signal Distribution
✔ Available in 1×2, 1×4, 1×8 & 1×16 Configurations
✔ Low Insertion Loss & Low Polarization Dependent Loss
✔ High Return Loss & Excellent Directivity
✔ Compact ABS Cassette / LGX Box Design
✔ Suitable for FTTH, GPON, EPON & CATV Networks
✔ Wide Operating Temperature Range
✔ Factory Tested for Stable Optical Performance
Technical Specifications
| Category | Specification |
|---|---|
| Product Type | PLC Splitter (Cassette Type) |
| Configuration | 1×2 / 1×4 / 1×8 / 1×16 |
| Fiber Type | Single Mode G.657A1 / G.652D |
| Operating Wavelength | 1260 ~ 1650 nm |
| Insertion Loss (P Grade) | ≤ 10.4 dB |
| Insertion Loss (S Grade) | ≤ 10.6 dB |
| PDL | ≤ 0.3 dB |
| Loss Uniformity | ≤ 1.0 dB |
| Return Loss | ≥ 55 dB (P Grade) / ≥ 50 dB (S Grade) |
| Directivity | ≥ 55 dB |
| Connector Type | SC/APC |
| Cable Length | 1.0 m (Customizable) |
| Fiber Diameter | 0.9 mm / 2.0 mm |
| Housing Type | ABS Cassette / LGX Box |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions (L × W × H) | Approx. 120 × 80 × 18 mm |
Applications
FTTH Networks
GPON & EPON Systems
ISP Optical Distribution Networks
Fiber Distribution Boxes (FDB)
Optical Distribution Frames (ODF)
CATV Optical Networks
Telecommunication Networks
Data Center Fiber Distribution
Available Variants:
PLC Splitter Cassette 1×2 SC/APC

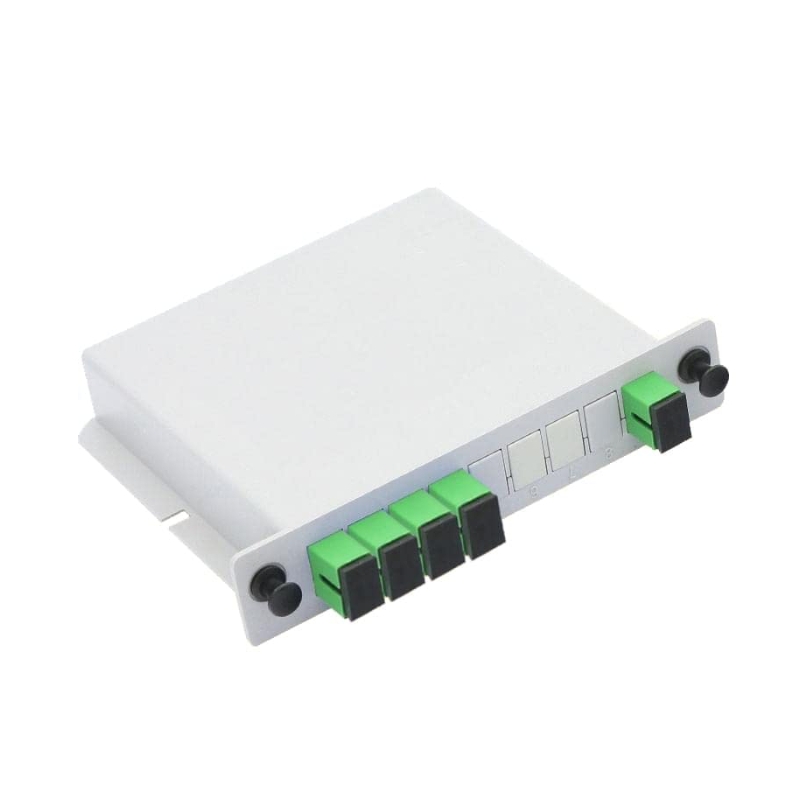

PLC Splitter Cassette 1×4 SC/APC

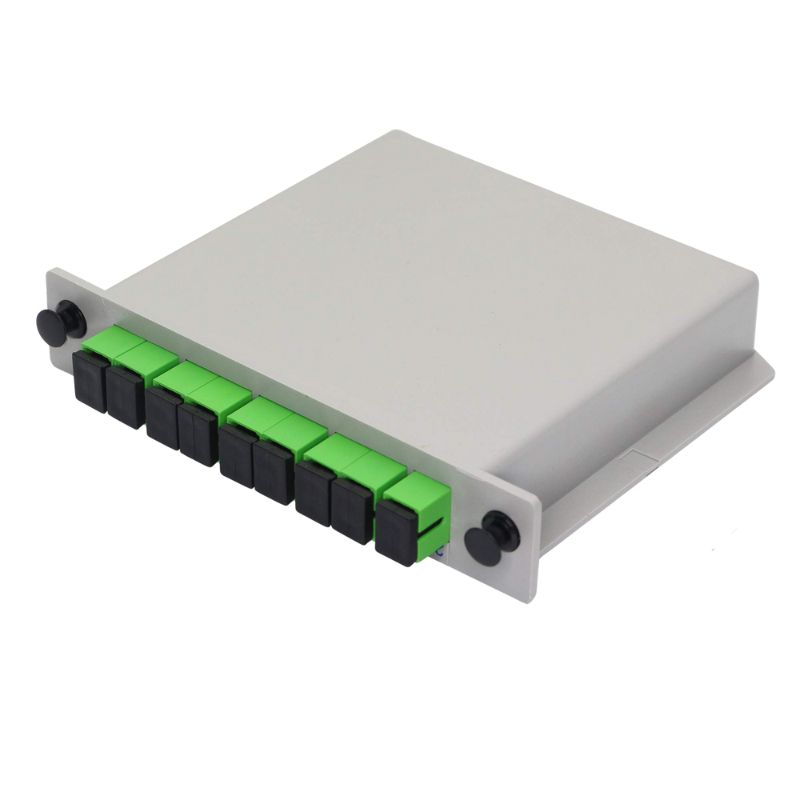

PLC Splitter Cassette 1×8 SC/APC

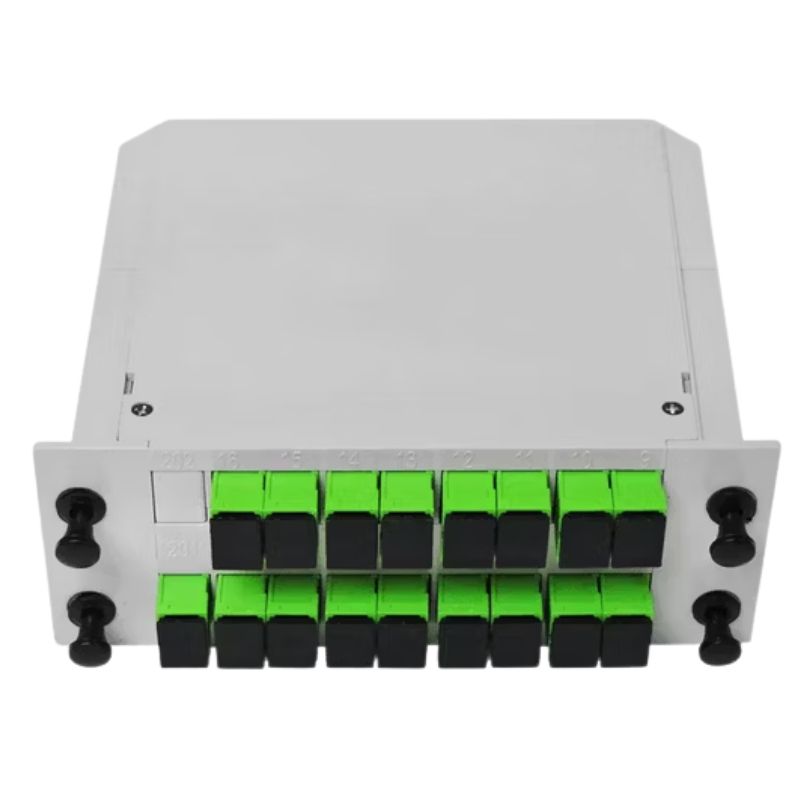

PLC Splitter Cassette 1×16 SC/APC
Please select the required splitter ratio before ordering.
PLC Splitter Cassette 1×2 SC/APC
PLC Splitter Cassette 1×4 SC/APC
PLC Splitter Cassette 1×8 SC/APC
PLC Splitter Cassette 1×16 SC/APC
Please select the required splitter ratio before ordering.
