WSS (9-Degree ROADM Card)
.png)
.png)

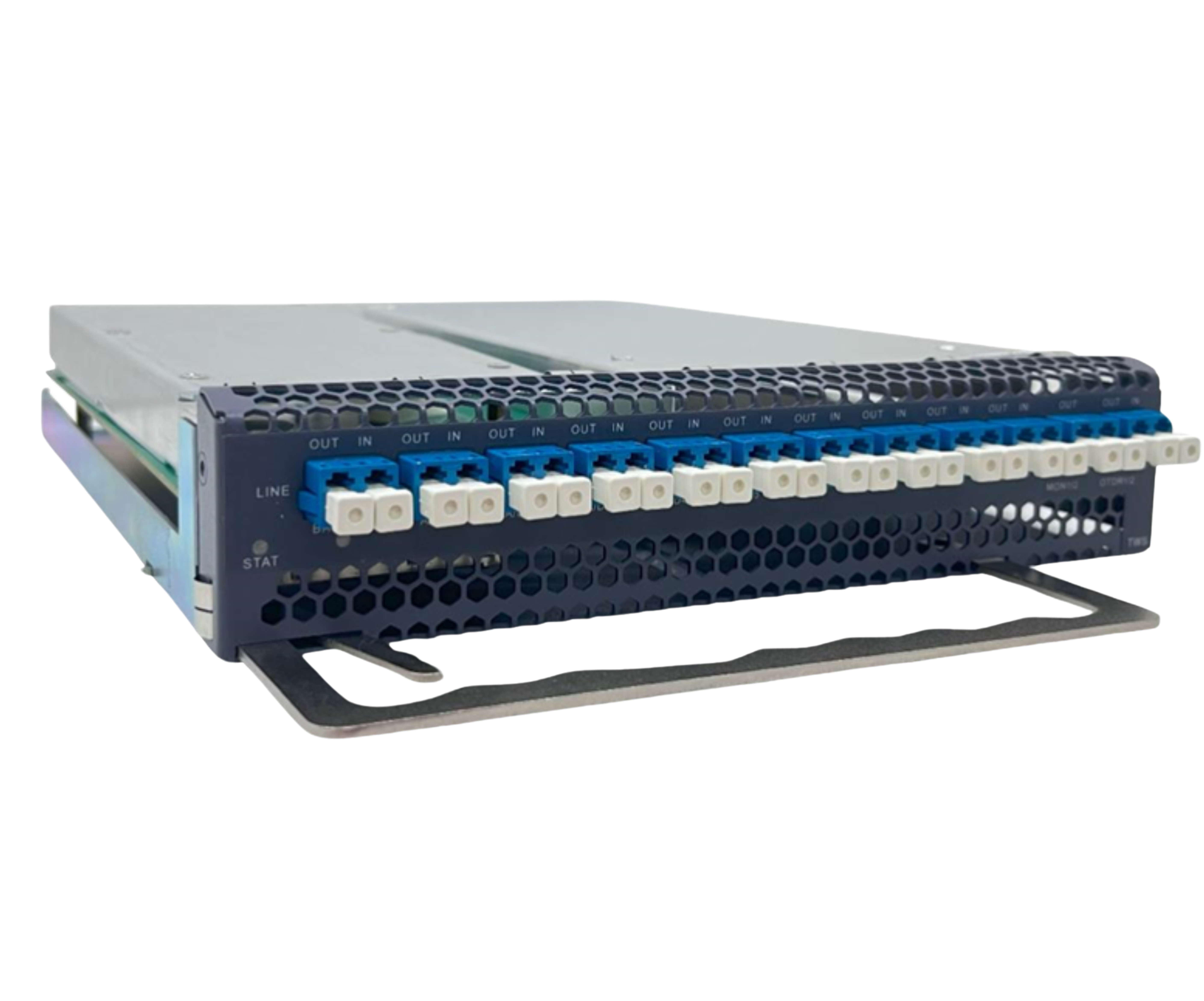

The 9-Degree ROADM card (WSS) launched by D Tech Trading supports the integration of key functions WSS, BA, PA and OSC into one card, has built-in dual 1x9 WSS components and has 9 ports for wavelength multiplexing and demultiplexing. It supports a DWDM Network with 96 channels (50GHz wavelength interval) in the frequency range of 191.35THz ~ 196.10THz in the C-band. It also supports the flexible grid function, realizes the flexible adjustment of channel bandwidth, and improves the spectrum utilization of the whole network.
Application case:
- Suitable for dynamic add/drop and pass-through of optical wavelength in OADM station
- Suitable for dynamic pass-through and scheduling of multi-degree optical wavelengths in ROADM station
Product Specification:
| Specification | Value |
|---|---|
| Function | It supports 9-port wavelength selective MUX and DEMUX for dynamic wavelength penetration and scheduling. Also supports power amplification and pre-amplification of the line-side MUX signal. |
| Slot number | 2 slots |
| Integration | Built-in Twin 1x9 WSS, BA, PA, OSC, VOA, passive filter, etc |
| Security | Support automatic power reduction (APR) technology |
| Monitoring port | Reserve OCM and OTDR monitoring ports in the transmitting and receiving directions on the line side, which can be externally connected to OCM card and OTDR card |
| Channel range | 191.35 THz~196.1 THz, supports Flexible Grid spectral width N*3.125 GHz adjustment |
| Max number of channels | 96 channels (50GHz interval) |
| Power regulation | Supports power adjustment of each channel, with attenuation range of each wavelength from 0 to 15dB, and attenuation setting step of 0.1 dB |
| Port isolation | >25dB |
| Extinction ratio | ≥25dB |
| Polarization dependent loss | ≤1.5 |
| Attenuation accuracy per wavelength | ≤1dB |
| Reconstruction time | ≤3s |
| Variable gain | BA supports 15 ~ 25dB gain range adjustable. PA supports 15 ~ 25dB or 25 ~ 35dB, and the gain range is adjustable (optional according to the application scenario) |
| Output optical power | Maximum total output optical power ≥21 dBm |
| Line side VOA position | PA input port (BA without VOA) |
| VOA inherent insertion loss | ＜1dB |
| VOA adjustment range | 0 ~ 15dB |
| OSC working wavelength | 1510nm |
| OSC working rate | 1.25Gb/s |
| OTDR channel wavelength | 1625nm |
| OTDR channel loss | ＜1dB |
